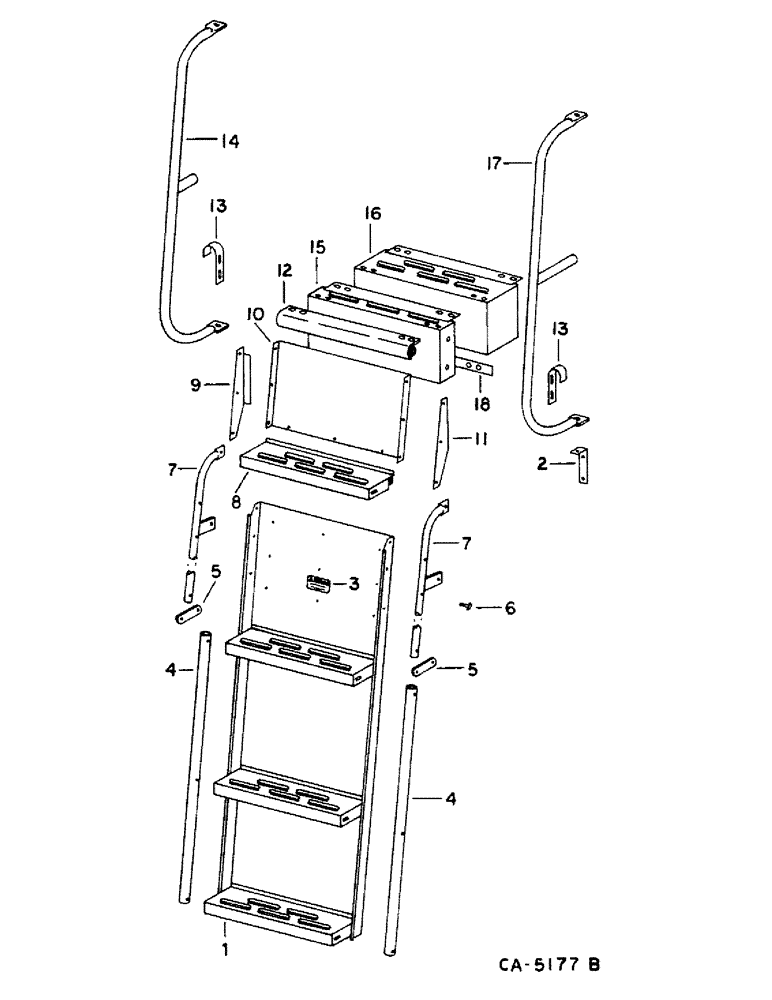

Запчасти Case IH 1460 (13-10) - SUPERSTRUCTURE, FIXED LADDER EXTENSION (05) - SUPERSTRUCTURE

1

186196C92

LADDER

ASSY, lower frame, includes ref. no. 3

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

196846C1

SUPPORT

handrail extension, for use w/10.5 and 14 in. ext, for for use w/axle extension

1шт.

3

2754442R1

PRODUCT GRAPHIC

danger

1шт.

4

187574C1

TUBE,1.035" ID, 1.125" OD, 34" Length

ladder handrail

2шт.

5

187525C1

SUPPORT

ladder

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

196955C1

BOLT,Curved Hd, 5/16" - 18 x 1.50", Cl 5

5/16 x 1.5 curved head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

7

196953C1

RAIL ASSY.

ROD ASSY, ladder support

2шт.

8

196956C2

STEP

ASSY, ladder extension

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

9

196836C1

SUPPORT

ladder side LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

10

196839C1

SUPPORT

ASSY, ladder upper

1шт.

486830R1

COTTER PIN

PIN, Q.A

1шт.

11

196837C1

SUPPORT

ladder side RH

1шт.

182256R1

NUT, 3/8-16 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

12

196832C1

SUPPORT

ASSY, ladder attaching

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1 znd hex-hd flange lock

1шт.

120388

.438 x 1.000 x .064

1шт.

13

196977C1

SUPPORT

handrail extension hook, for use w/10.5 and 14 in. ext, for use w/axle extension

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

.406 x .625 x 1.0

1шт.

14

196625C1

RAIL

ASSY, front short extension, for use w/10.5 and 14. in. ext, for use w/axle extension

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

15

198478C1

SUPPORT

ASSY, operators platform extension, for 3.5 in. extension

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

3/8 x 3/4 znd hex-hd flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

178372R1

WASHER

.406 x 1.250 x .054

1шт.

16

198482C1

SUPPORT

ASSY, operators platform extension, for 7.0 in. extension, for use w/axle extension

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

3/8 x 3/4 znd hex-hd flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

178372R1

WASHER

.406 x 1.260 x .054

1шт.

17

196633C1

RAIL

ASSY, rear short extension, for use w/10.5 and 14 in. ext, for use w/axle extension

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 type 1

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

18

187712C1

SHIM

extension

1шт.
