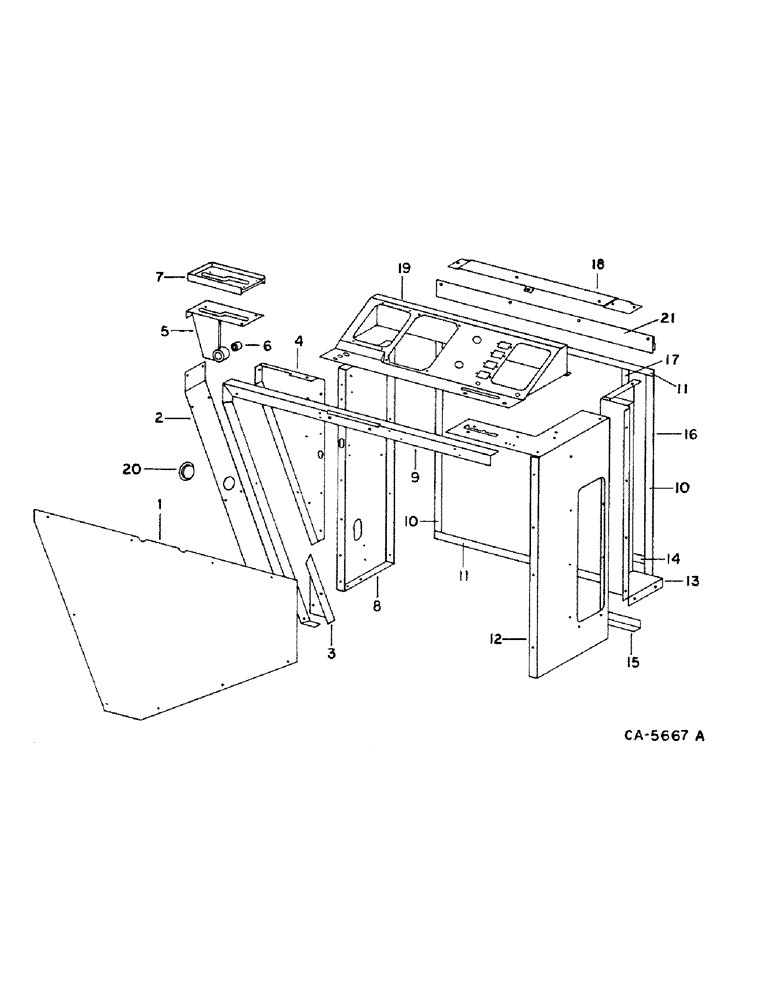

Запчасти Case IH 1460 (13-06) - SUPERSTRUCTURE, RIGHT CONSOLE, S/N 22000 AND BELOW (05) - SUPERSTRUCTURE

1

193035C3

LARGE PLATE

PLATE, right console inner

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 p/hdcr tap

1шт.

2

193034C1

SUPPORT

right console extension front

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 p/hdcr tap

1шт.

3

195991C1

SUPPORT

RH console extension lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

195992C2

SUPPORT

RH console extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

5

193277C91

SUPPORT ASSY.

SUPPORT ASSY, console extension, hydrostatic drive, includes ref. on. 6

1шт.

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 PHC p/hdcr tap

1шт.

6

165704C1

BUSHING

console extension support

1шт.

7

198988C1

COVER

console, hydrostatic drive

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

8

193064C8

SUPPORT

right console front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

193031C3

SUPPORT

ASSY, right console front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

10

STRIP, console cover, use 26.7 in. from bulk stock marked 195917C2

2шт.

11

STRIP, console cover, use 27.2 in. from bulk stock marked 195917C2

2шт.

12

193030C2

SUPPORT

right console rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znd slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

13

195958C1

SUPPORT

right console electrical

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

STRIP, console cover, use 3.0 in. from bulk stock marked 195917C2

1шт.

15

193033C2

ANGLE

right console outer lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 ZNP slt-truss-hd

1шт.

16

193037C1

PLATE ASSY.

PLATE, right console outer, Serial Range: -12000

1шт.

16

1301218C1

PLATE

right console outer, Start Serial: 12001

1шт.

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 PHC p/hdcr tap

1шт.

17

STRIP, console cover, use 25.4 in. form bulk stock marked 195917C2

1шт.

18

196681C1

SUPPORT

ASSY, right console outer top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd

1шт.

19

195667C2

PANEL

ASSY, instrument

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10 x 1/2 znd pan head

1шт.

20893R1

WASHER

.344 x 1 x .105 znd

1шт.

20

187768

HOLE PLUG BUTTON,2 1/2"

PLUG, 2-1/2 hole dia znp button

1шт.

21

1301334C1

SUPPORT

CLIP, RH outer cover, Start Serial: 12001

1шт.
