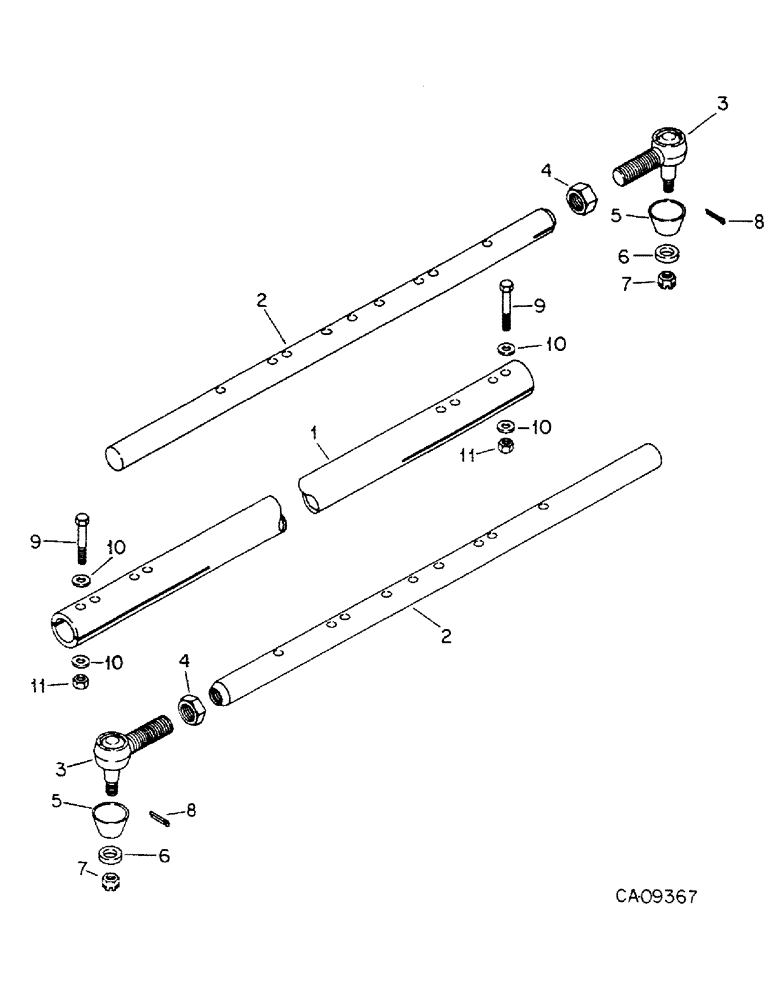

Запчасти Case IH 1460 (15-22) - WHEEL AND TRACTION, TIE ROD ASSEMBLY, S/N 52156 AND ABOVE Wheels & Traction

1

1324459C1

TUBE,2" OD, 83" Length

tie rod outer

1шт.

2

1324460C1

TUBE,33" Length

tie rod inner

2шт.

3

1310570C1

END

tie rod

2шт.

4

1310571C1

JAM NUT

1 in. jam

2шт.

5

1310572C1

RUBBER SEAL

tie rod end

2шт.

6

25548R1

WASHER

.812 x 1.500 x .219 PHC hdn

2шт.

7

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 slt type 5

2шт.

8

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

9

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

4шт.

10

25710R1

WASHER

.531 x 1.062 x .134 hdn

8шт.

11

9412230

LOCK NUT

1/2 PHC p/t lock type 8

4шт.
