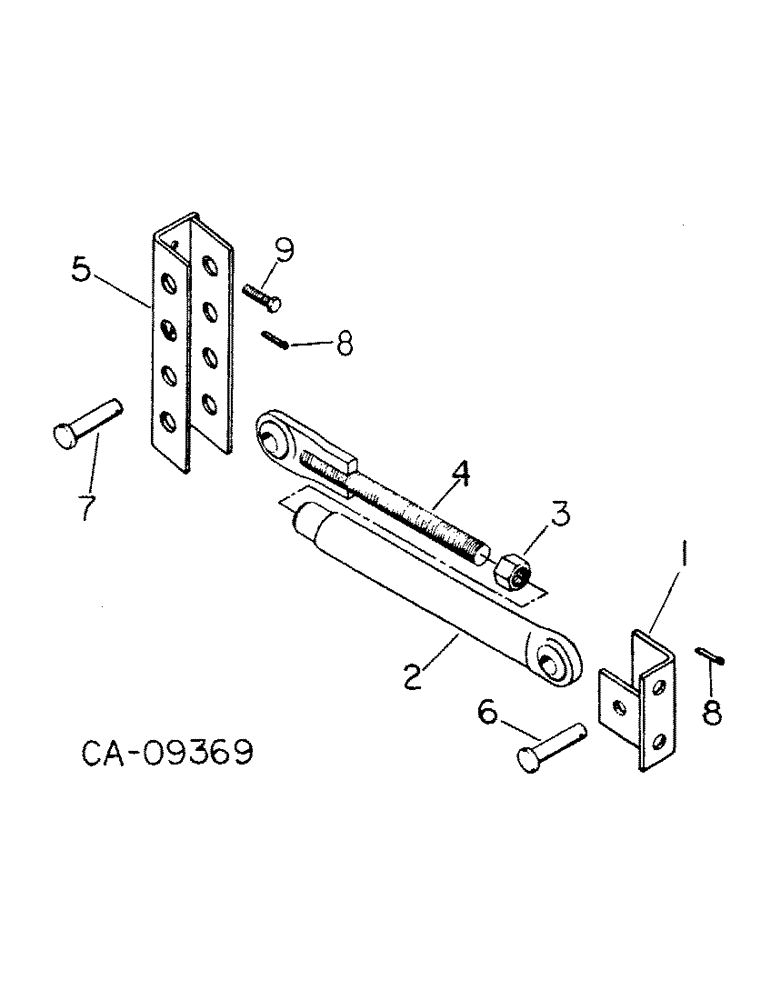

Запчасти Case IH 1460 (15-21) - WHEEL AND TRACTION, AXLE STA ROD, S/N 52156 AND ABOVE Wheels & Traction

1

183494C1

SUPPORT ASSY.

SUPPORT ASSY, rod rear

2шт.

2

181444C1

TIE-ROD,1" - 8

ROD ASSY, axle rear eye

2шт.

3

9849633

NUT,1"-8, G5

2шт.

4

181442C2

BOLT

axle front eye

2шт.

5

183151C1

SUPPORT

ASSY, rod front

2шт.

6

23313R1

HEADED PIN,7/8" x 3 1/2"

PIN, HEADED, 7/8" x 3 1/2"

1шт.

7

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN, 7/8 x 3. hd type 5

1шт.

8

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

Use P/N 132-348 Pin.

1шт.

9

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

6шт.
