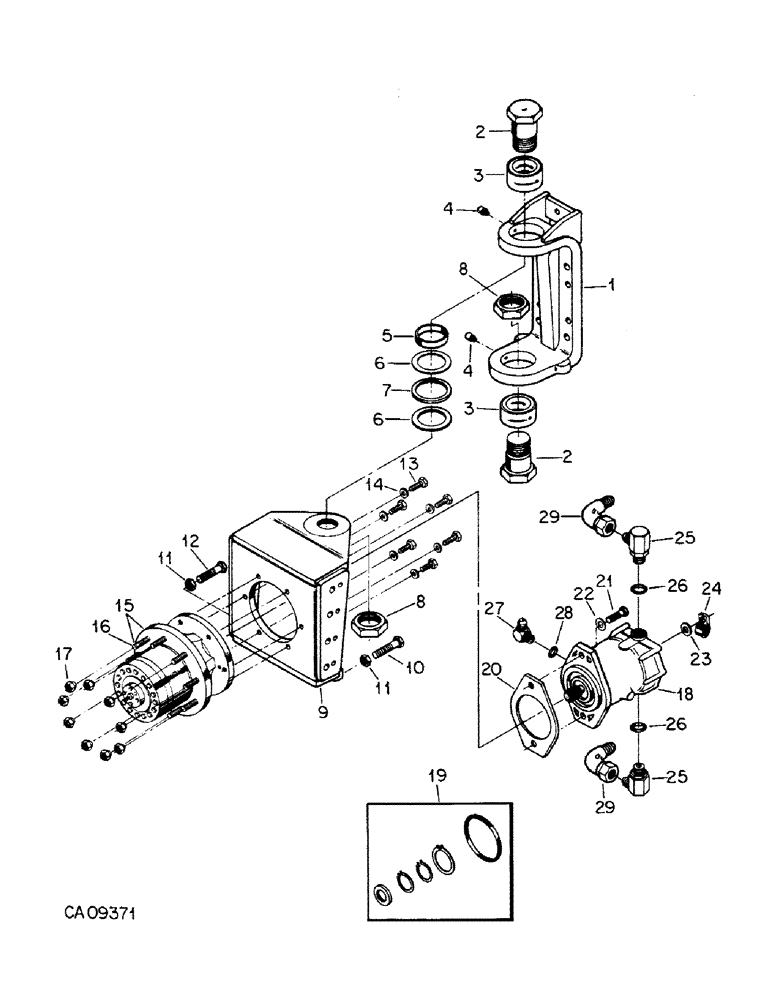

Запчасти Case IH 1460 (15-20) - WHEEL AND TRACTION, POWER GUIDE WHEEL DRIVE, S/N 52156 AND ABOVE Wheels & Traction

1

1314471C1

SUPPORT

ASSY, frame

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

8шт.

366866C1

LOCK WASHER,5/8"

5/8"

10шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

8шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

2

1324468C1

BOLT,1 5/8" - 12 x 2.74"

pivot pin

4шт.

3

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING, spherical radial

4шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

4шт.

5

1310560C1

THRUST WASHER

thrust washer spacer

2шт.

6

890477C1

WASHER

4шт.

7

1310562C1

THRUST WASHER

nylarron thrust

1шт.

8

9403299

LOCK NUT,Blkhd, 1 5/8"-12

NUT, 1-1/4 C-Z bulkhead union lock

4шт.

9

1314472C1

SUPPORT

ASSY, frame

2шт.

10

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

2шт.

11

25949R1

JAM NUT,Jam, 5/8"-11, G8

5/8 PHC jam type 8

4шт.

12

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

13

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

12шт.

14

1324470C1

WASHER

machinery bushing

12шт.

15

1324465C91

HOUSING

CASE W/STUDS, planetary gear

2шт.

1319387C1

SEAL KIT

seal, consists of (2) (NSS) o-ring, (NSS) retaining ring, (NSS) roll pin, (2) (NSS) seal, (NSS) spindle

1шт.

16

1310563C1

STUD,5/8" - 18 x 2.15"

wheel

18шт.

17

25676R1

NUT,5/8"-18, G8

5/8-NF PHC type 8

18шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

18шт.

18

1310556C91

MOTOR, ELECTRIC

MOTOR ASSY, fixed axial piston

2шт.

19

1272263C1

KIT

motor, consists of (NSS) o-ring, (NSS) retaining ring, (NSS) retaining ring, (NSS) shaft seal

1шт.

20

1310555C1

GASKET

motor

2шт.

21

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

4шт.

22

25710R1

WASHER

.531 x 1.062 x .134 hdn

4шт.

23

27309R1

WASHER

.344 x .688 x .051 pln

4шт.

24

28135R1

CLAMP

.938 dia znp coated med clo

2шт.

25

1324476C2

ELBOW

high pressure swivel, SB 08587, power guide axle high, pressure swivel elbows

4шт.

26

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

4шт.

27

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

2шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

29

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z fld 90D swivel

2шт.

132-348

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.
