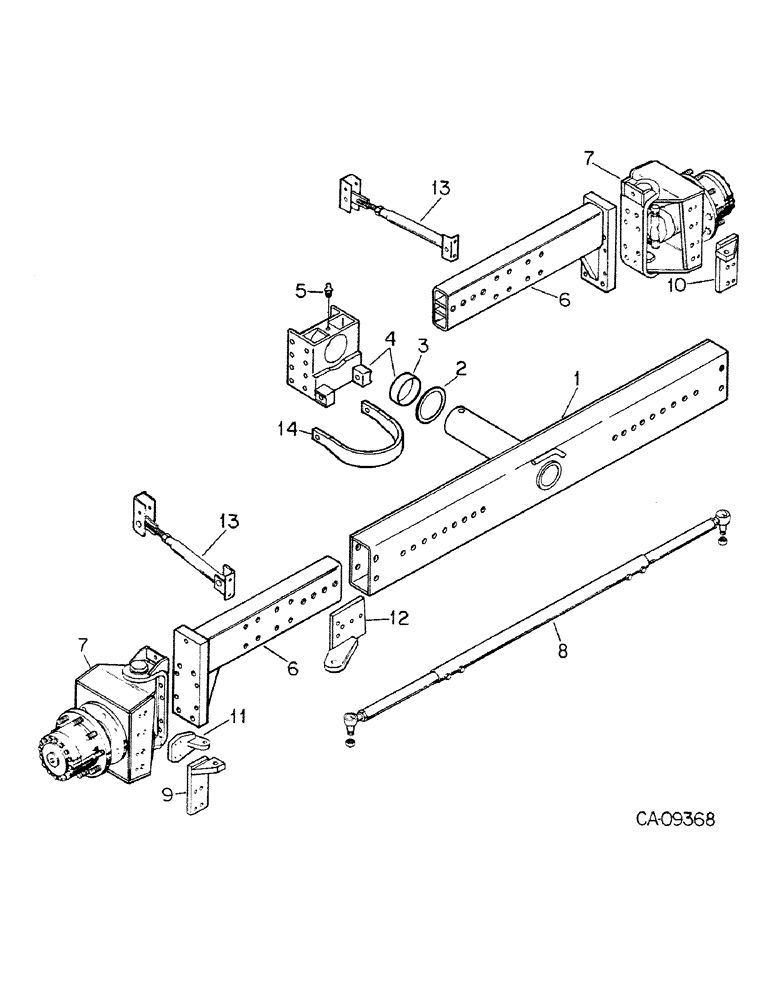

Запчасти Case IH 1460 (15-17) - WHEEL AND TRACTION, POWER GUIDE WHEEL AXLE AND CONNECTIONS, S/N 52156 AND ABOVE Wheels & Traction

1

1302522C2

STEERING AXLE

AXLE ASSY, center steering

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 znd type 5

3шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 znd type 5

4шт.

26523R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 8

3/4 x 5-1/4 PHC type 8

3шт.

177744

NUT, 3/4 PHC flange lock type 8

10шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

steering axle pivot

4шт.

3

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

pivot support

2шт.

4

186599C92

SUPPORT ASSY.

SUPPORT ASSY, axle pivot

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

6шт.

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

3/4 x 5-1/2 PHC type 8

2шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

8шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

8шт.

5

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole lub

2шт.

6

1324475C1

EXTENSION

SUPPORT ASSY, axle extension

2шт.

7

DRIVE ASSY, power guide wheel, refer to power guide wheel drive

2шт.

8

ROD ASSY, refer to tie rod assembly

1шт.

9

1324461C1

SUPPORT

tie rod bracket LH

1шт.

24893R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

2шт.

9413983

NUT

3/4 PHC p/t lock type 8

2шт.

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 x 3-1/2 PHC type 8

2шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

2шт.

10

1324463C1

SUPPORT

tie rod bracket RH

1шт.

24893R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

2шт.

9413983

NUT

3/4 PHC p/t lock type 8

2шт.

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 x 3-1/2 PHC type 8

2шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

2шт.

11

1324462C1

SUPPORT

steering bracket

1шт.

12

1324464C1

SUPPORT

steering bracket

1шт.

13

ROD, axle sta, refer to axle sta rod

1шт.

14

1302625C1

CHANNEL

tow-strap

1шт.

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 PHC flange lock type 8

2шт.
