(15-15[A]) - WHEEL AND TRACTION, SERVICE LADDER EXTENSION S/N 50025 AND ABOVE

Запчасти Case IH 1460 (15-15[A]) - WHEEL AND TRACTION, SERVICE LADDER EXTENSION S/N 50025 AND ABOVE Wheels & Traction

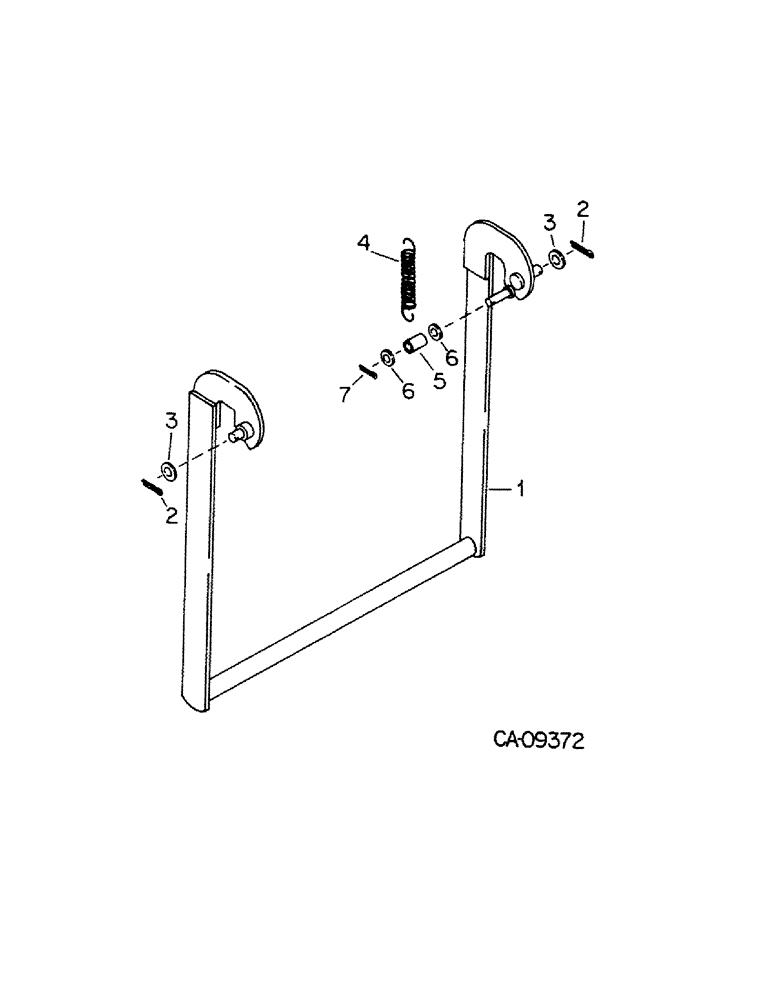

Схема запчастей Case IH 1460 - (15-15[A]) - WHEEL AND TRACTION, SERVICE LADDER EXTENSION S/N 50025 AND ABOVE Wheels & Traction
6
1
4
2
7
3
5
2
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

181181C1

LADDER

STEP ASSY, service ladder ext.

1шт.

2

23042R1

WASHER

.531 x 1.000 x .027

2шт.

3

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

472179R1

SPRING

over center ladder extension

1шт.

5

181185C1

SPACER

spring pivot, bushing

1шт.

6

619856R1

WASHER

.406 x 1.000 x .056

2шт.

7

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
