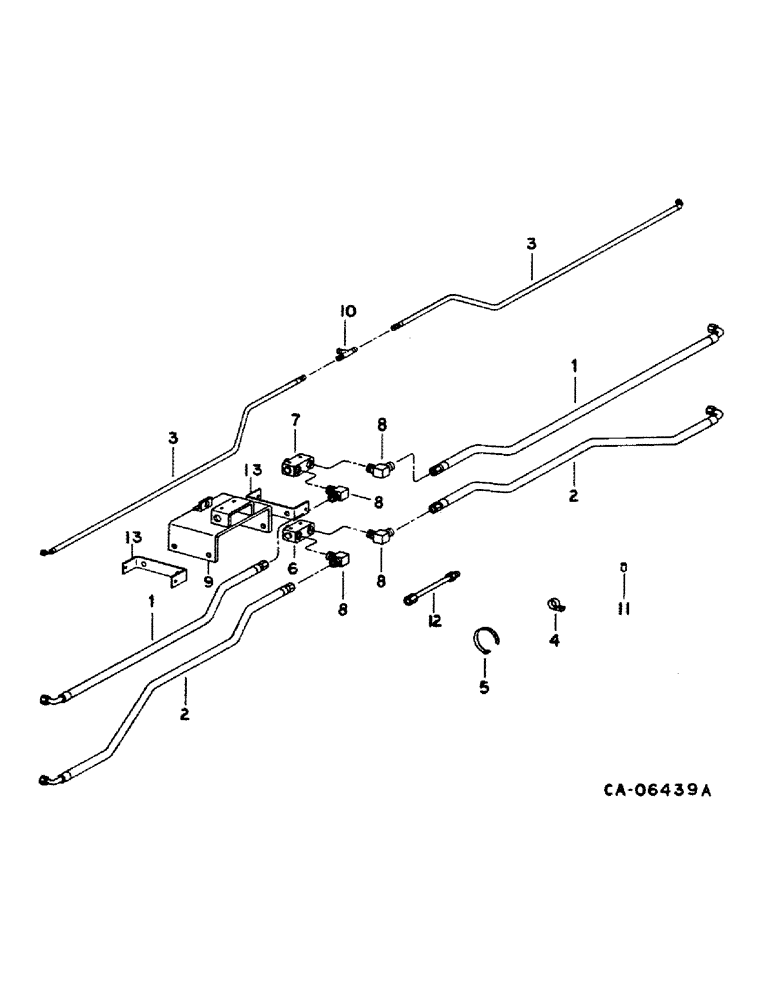

Запчасти Case IH 1460 (15-13) - WHEEL AND TRACTION, AXLE HYDRAULIC HOSES AND POSITRACTION VALVE, S/N 52155 AND BELOW Wheels & Traction

1

1301614C1

HOSE

ASSY, wheel motor, 45 in.

2шт.

2

1301615C1

HOSE ASSY.

HOSE ASSY, wheel motor 58 in.

2шт.

3

1301496C1

HOSE ASSY.

HOSE ASSY, wheel motor, 72 in.

2шт.

4

299566C1

CLAMP

.688 dia. znp coated

2шт.

4

28149R1

CLAMP,1 1/4", Insul, 1/2" Bolt

1.25 dia. znp coated

4шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 type 8

1шт.

9413977

NUT

5/16 PHC p/t lock type 8

1шт.

27309R1

WASHER

.344 x .688 x .051

1шт.

5

533959R1

CABLE TIE,.135" x 11"

STRAP, hyd hose tie

4шт.

6

1310543C1

LOCK VALVE

VALVE ASSY, forward positraction

1шт.

7

1310544C1

LOCK VALVE

VALVE ASSY, reverse

1шт.

25958R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3/8 x 3 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

8

1310580C1

ELBOW UNION

ELBOW, 1-1/16-12 90 deg hyd

4шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

9

1310546C1

SUPPORT ASSY.

SUPPORT, positraction valve

1шт.

10

1310575C1

TEE

hyd bulkhead

1шт.

11

(Not used this application)

1шт.

12

1301911C1

HYD TUBE

TUBE, drive pressure, used w/120 in. axle

4шт.

13

(Not used this application)

1шт.
