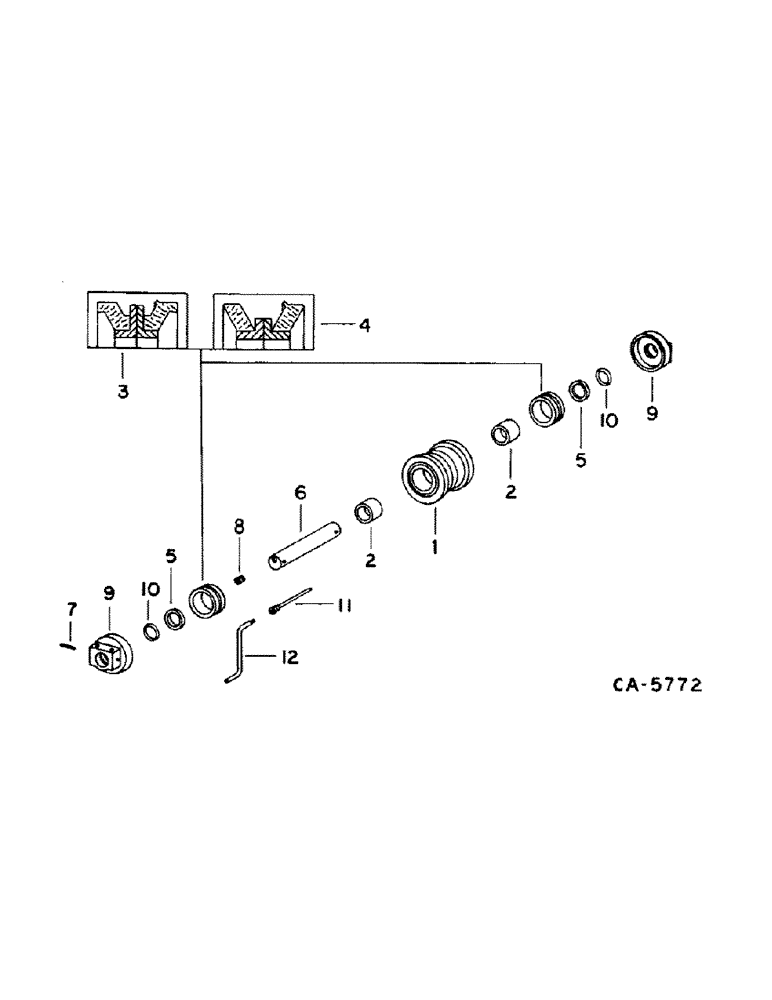

Запчасти Case IH 1460 (15-04) - WHEEL AND TRACTION, TRACK ROLLER Wheels & Traction

621462C94

ROLLER

ASSY, track, includes ref. nos. 1 thru 10

10шт.

1

621455C94

ROLLER

W/BUSHING, track, includes ref. no. 2

1шт.

2

621458C3

BUSHING

track roller

20шт.

3

655973C91

SEAL KIT

track roller oil or

20шт.

4

740915C91

OIL SEAL

SEAL KIT, track roller oil

20шт.

5

621419C1

THRUST WASHER

track roller thrust

20шт.

6

621459C1

SHAFT

track roller

10шт.

7

19424R1

PIN,3/8" x 1 1/2", Coiled

20шт.

8

444783

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 C-Z sq/skt auto drain

10шт.

9

621463C1

HOUSING

BRACKET, roller shaft support

20шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

123174

LOCK WASHER,1/2"

1/2"

1шт.

10

655266C1

O-RING,1.734" ID x 0.144" Width

shaft support bracket

20шт.

11

1330259C1

TUBE,6.78" Length

ASSY, track lubricator, replaces 304909R91 by also ordering, fitting 1330260C1

1шт.

1330260C1

FITTING

tube

1шт.

12

304910R2

SPECIAL WRENCH

WRENCH, tube fitting

1шт.
