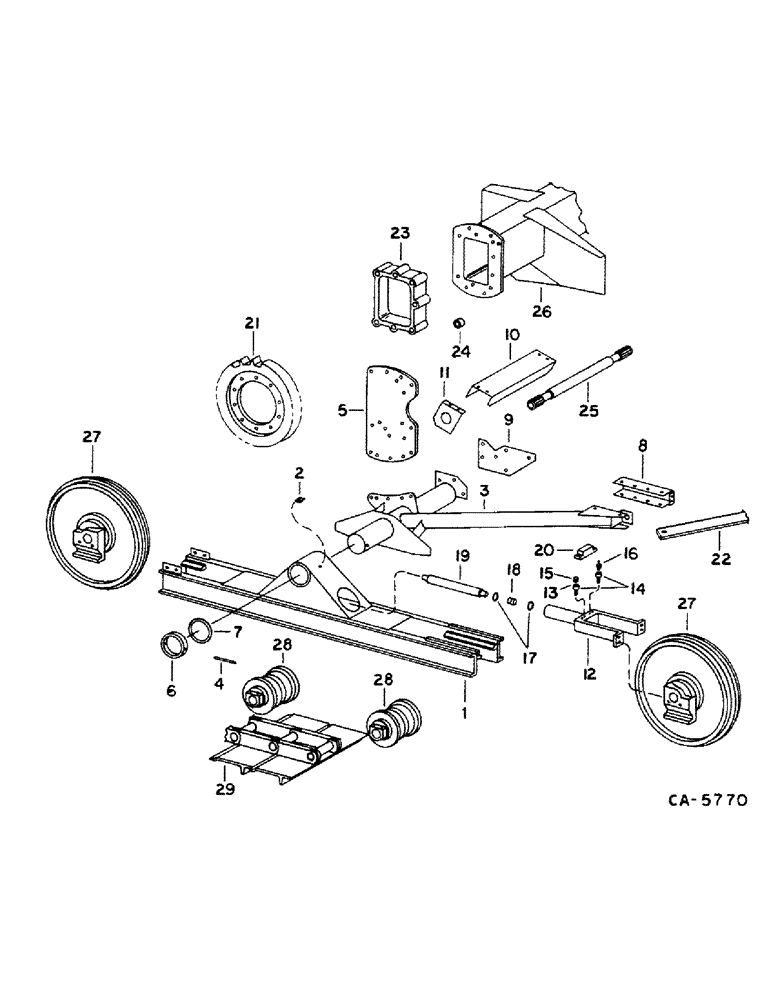

Запчасти Case IH 1460 (15-02) - WHEEL AND TRACTION, TRACK Wheels & Traction
№
Артикул
Название
Примечание
Количество
1
196031C1
FRAME
ASSY, track
2шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 x 1-1/2 type 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
2
109461
LUBE NIPPLE,1/8"-27 x .66 lg
FITTING, 1/8 90 deg str lub
2шт.
3
188487C1
FRAME
PIVOT ASSY, track frame LH
1шт.
3
188488C1
FRAME
PIVOT ASSY, track frame RH
1шт.
186851C1
FLANGE NUT
5/8 flange lock type 8
1шт.
186852C1
FLANGE NUT,Hex, 1/2"-13, Lock
1/2 flange lock type 8
1шт.
21610R1
BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8
3/4 x 2-1/2 type 8
1шт.
25529R1
NUT,3/4"-10, G8
3/4 PHC type 8
1шт.
24771R1
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
25710R1
WASHER
.531 x 1.062 x .134 hdn
1шт.
432695R1
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8
5/8 x 1-3/4 type 8
1шт.
25556R1
WASHER,21/32" x 1 1/2" x .188", HDN
.656 x 1.500 x .188 PHC hdn
1шт.
4
23854R1
LOCK PIN,1/2" x 5", Slotted
Pin, 1/2" x 5", Slotted
2шт.
5
186832C1
PLATE
outer pivot support
2шт.
6
167791C1
SPACER
COLLAR, pivot axle retainer
2шт.
7
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
track pivot shaft
2шт.
8
188498C1
BRACKET
SUPPORT, pivot rear anchor LH
1шт.
8
188499C1
BRACKET
SUPPORT, pivot rear anchor RH
1шт.
186851C1
FLANGE NUT
5/8 flange lock type 8
1шт.
60365H
BOLT,Hex, 3/8" - 16 x 1", Gr 8
3/8 x 1 type 8
1шт.
21333R1
NUT,3/8"-16, G8
3/8 type 8
1шт.
366862C1
LOCK WASHER,3/8"
3/8"
1шт.
24872R1
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8
1шт.
25556R1
WASHER,21/32" x 1 1/2" x .188", HDN
.656 x 1.500 x .188 PHC hdn
1шт.
9
186006C1
SUPPORT
inner pivot, for hi-clear
2шт.
9
1302371C1
PLATE
SUPPORT, inner pivot, LH
1шт.
9
1302372C1
PLATE
SUPPORT, inner pivot RH, for lo-clear
1шт.
186851C1
FLANGE NUT
5/8 flange lock type 8
1шт.
432695R1
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8
5/8 x 1-3/4 type 8
1шт.
25556R1
WASHER,21/32" x 1 1/2" x .188", HDN
.656 x 1.500 x .188 PHC hdn
1шт.
10
186015C1
GUARD
SHIELD, drive axle shaft
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
25709R1
WASHER
.406 x .812 x .089 hdn
1шт.
11
186016C1
SUPPORT
outer shaft shield LH
1шт.
11
186017C1
SUPPORT
outer shaft shield RH
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
1шт.
12
621428C1
CLEVIS
FORK, rear idler roller adjustment
2шт.
24863R1
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8
1шт.
116121
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
13
VALVE W/PLUG, track adj bleeder, for service furnish reference numbers 14 and 15 as required
2шт.
14
D35287
CHECK VALVE,5/8" - 18
ASSY, bleeder, replaces 319628R91
4шт.
15
50410DA
PLUG
bleeder valve
2шт.
16
109461
LUBE NIPPLE,1/8"-27 x .66 lg
FITTING, 1/8 90 deg str lub
2шт.
17
622826C91
SEAL
AND SCRAPPER ADJUSTER SERVICE KIT
2шт.
18
622046C1
PISTON
track adjuster hyd
2шт.
19
196030C1
ROD
track adjuster control
2шт.
20
621430C1
GUARD
SHIELD, track adjuster check
2шт.
24860R1
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1шт.
116121
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
21
162343C1
DRIVE SPROCKET
SPROCKET, track drive, 23T
2шт.
25632R1
NUT,3/4"-16, G8
3/4-NF PHC type 8
1шт.
22
BAR, separator frame diagonal, refer to group 20 under separator sides
2шт.
23
186036C1
SPACER
drive axle track
2шт.
25701R1
BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 8
3/4 x 7-1/2 PHC type 8
1шт.
24
619769R1
SPACER,1" X-Strng Pipe x 3/4"
drive axle track, required for lo clear position only
2шт.
25
SHAFT, axle drive, refer to group 7 under transmission differential shaft and gears
1шт.
26
AXLE ASSY, main, refer to group 7 under main axle
1шт.
27
ROLLER ASSY, idler, refer to this group under track idler
1шт.
28
ROLLER ASSY, track, refer to this group under track roller
1шт.
29
TRACK, chain, refer to this group under track chain
1шт.
