Запчасти Case IH 1460 (14-08) - SUSPENSION, STEERING AXLE SHIELD, STATIONARY, STANDARD FOR GRAIN Suspension

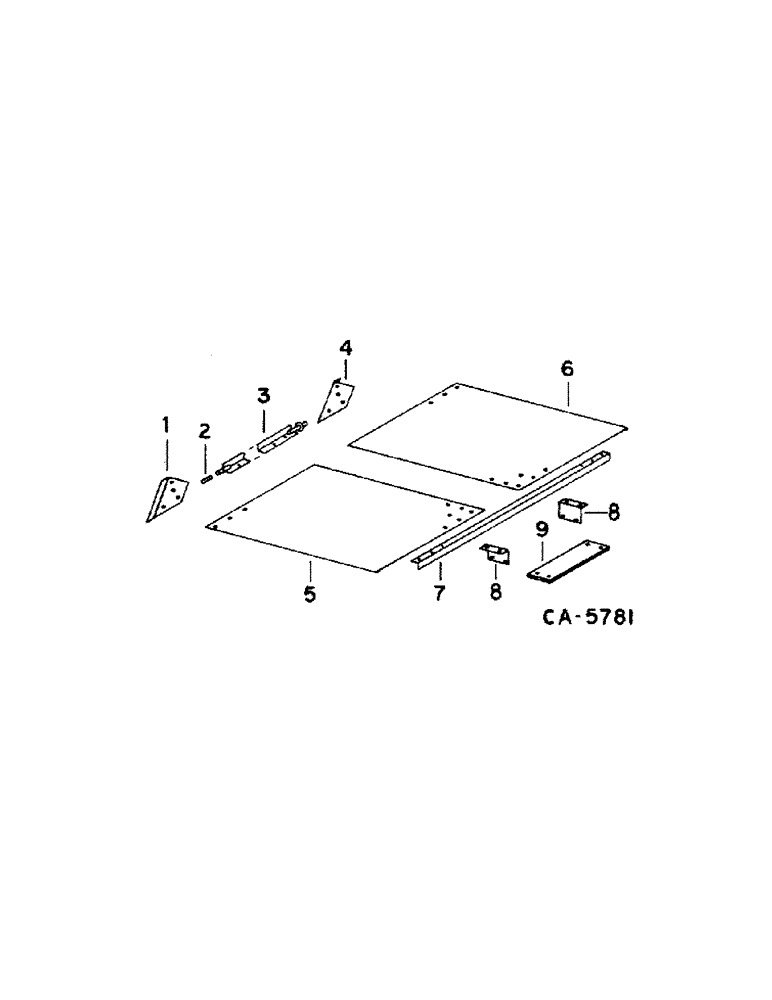

Схема запчастей Case IH 1460 - (14-08) - SUSPENSION, STEERING AXLE SHIELD, STATIONARY, STANDARD FOR GRAIN Suspension
3
7
4
1
8
6
2
5
9
8

Артикул

Название

Примечание

Количество

1

186912C1

SUPPORT

axle shield LH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

203942C1

SPRING

shield pivot

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

3

195450C2

SUPPORT ASSY.

SUPPORT ASSY, axle shield

1шт.

4

186913C1

SUPPORT

axle shield RH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

. 3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

195437C2

SHIELD

axle LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

195438C2

SHIELD

axle RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

(Not used in this application)

1шт.

8

183093C1

BRACKET

ANGLE, axle shield support, Start Serial: 1501

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

183094C1

CUSHION

STRIP, axle shield support, Start Serial: 1501

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

Выбрано товаров: 27
