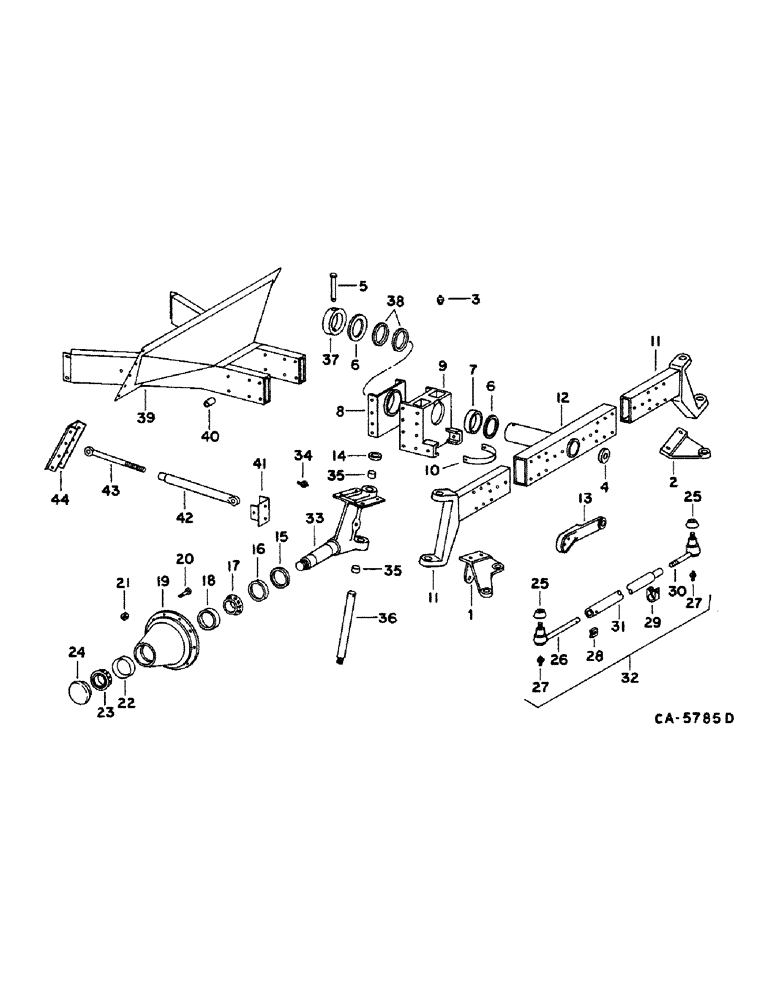

Запчасти Case IH 1460 (14-06) - SUSPENSION, STEERING AXLE, SUPPORT AND TIE ROD, ADJUSTABLE FOR RICE Suspension
№
Артикул
Название
Примечание
Количество
1
186641C1
LEVER
steering LH
1шт.
25340R1
BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8
5/8 x 3-1/4 PHC type 8
1шт.
24883R1
BOLT,Hex, 5/8" - 11 x 5", Gr 8
5/8 x 5 PHC type 8
1шт.
366866C1
LOCK WASHER,5/8"
5/8"
1шт.
21434R1
NUT,5/8"-11, G8
5/8 type 8
1шт.
2
186639C1
LEVER
steering RH
1шт.
25340R1
BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8
5/8 x 3-1/4 PHC type 8
1шт.
24883R1
BOLT,Hex, 5/8" - 11 x 5", Gr 8
5/8 x 5 PHC type 8
1шт.
366866C1
LOCK WASHER,5/8"
5/8"
1шт.
21434R1
NUT,5/8"-11, G8
5/8 type 8
1шт.
3
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 hole lub
2шт.
4
167955C2
SEAL
steering hose
2шт.
5
28147R1
HEADED PIN,3/4" x 5 1/2"
PIN, 1/4 x 5.5 hd type 1
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
6
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
pivot tube, for 92 to 120 in. axle
4шт.
7
177751C1
BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L
axle pivot, 1 required w/68 to 88 in. axle, 2 required w/92 to 120 in. axle
1шт.
8
182792C92
SUPPORT ASSY.
SUPPORT ASSY, front pivot, includes ref. no. 38
1шт.
25712R1
WASHER
.812 x 1.500 x .179 hdn
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 PHC flange lock type 8
1шт.
9
186599C92
SUPPORT ASSY.
SUPPORT ASSY, steering axle pivot, includes ref. no. 7
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 PHC flange lock type 8
1шт.
25712R1
WASHER
.812 x 1.500 x .179 hdn
1шт.
25360R1
BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8
3/4 x 5-1/2 PHC type 8
1шт.
25712R1
WASHER
.812 x 1.500 x .179 hdn
1шт.
10
1302625C1
CHANNEL
combine tow
1шт.
24879R1
BOLT,Hex, 5/8" - 11 x 3", Gr 8
1шт.
195313C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 PHC flange lock type 8
1шт.
24878R1
BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8
1шт.
11
186595C2
EXTENSION
ASSY, axle, 68 to 88 in.
2шт.
11
186045C2
EXTENSION ASSY.
EXTENSION ASSY, axle, 92 to 120 in.
2шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 PHC flange lock type 8
1шт.
271781
BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5
BOLT, 3/8 x 4-1/2 type 5
1шт.
25712R1
WASHER
.812 x 1.500 x .179 hdn
1шт.
12
182797C3
AXLE
ASSY, narrow adjustable, 68 to 88 in.
1шт.
12
1302522C2
STEERING AXLE
AXLE ASSY, adjustable, 92 to 120 in.
1шт.
13
186598C1
BRACKET
ANCHOR, steering cylinder 68 to 88 in.
1шт.
13
186574C1
ANCHOR
steering cyl, 92 to 120 in.
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 PHC flange lock type 8
1шт.
26523R1
BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 8
3/4 x 5-1/4 PHC type 8
1шт.
271783
CAGE,Hex, 3/4" - 10 x 5", Gr 5
3/4 x 5 type 5
1шт.
19873R1
HARDWARE,Hex, 3/4"-10 x 5 1/2", G5
BOLT, 3/4 x 5-1/2 type 5
1шт.
14
596829R91
BEARING ASSY,2.014" ID x 2.9475" OD x 0.635"
ASSY, knuckle thrust
2шт.
15
169329C91
OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk
knuckle oil
2шт.
16
169328C1
SLEEVE
RING, strg. hub oil seal wear
2шт.
17
A61447
ROLLER BEARING,2.1651" ID x 0.9045" Thk
BEARING ASSY, strg. hub inner cone
2шт.
19
169293C11
HUB
ASSY, axle, includes ref. nos. 16, 18, 20, 21 & 22
2шт.
20
366021R2
BOLT,Round, 5/8" - 18 x 2 1/4"
hub
16шт.
21
554480R1
WHEEL NUT
wheel hub bolt
16шт.
25556R1
WASHER,21/32" x 1 1/2" x .188", HDN
.656 x 1.500 x .188 PHC hdn
1шт.
22
663558R1
BEARING CUP
BEARING, strg. hub outer cup
2шт.
23
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
BEARING ASSY, strg. hub outer cone
2шт.
25
A31186
BOOT
SEAL, tie rod stud
2шт.
26
180803C91
JOINT
END ASSY, tie rod LH, 68 to 88 in.
1шт.
26
180799C91
TIE-ROD
END ASSY, tie rod LH, 92 to 120 in., Inc. 25
1шт.
25779R1
BOLT,Hex, 3/8" - 24 x 3", Gr 8
3/8-NF x 3 PHC type 8
1шт.
358901R1
SLOTTED NUT
rod end
1шт.
27
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
28
A43369
CLAMP
WASHER, tie rod end clamp LH
2шт.
29
1319476C91
CLAMP
tie rod end RH, for use with tie rods with 1-1/2 in. OD tube ends
1шт.
30
180798C91
END ASSY.
END ASSY, tie rod RH, includes ref. no. 25
1шт.
358901R1
SLOTTED NUT
rod end
1шт.
31
180802C1
TUBE,1.533" ID x 68.88" L
tie rod, for narrow adj, 68 to 88 in.
1шт.
31
180801C1
TUBE
tie rod, 92 to 120 in.
1шт.
32
186603C91
ROD
ASSY, axle tie, 68 to 88 in.
1шт.
32
186139C91
DRAG LINK
ROD ASSY, axle tie, 92 to 120 in., includes ref. nos. 25 thru 31
1шт.
137204
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
1шт.
232-4636
LOCK NUT,3/8"-24, GC
NUT, LOCK, 3/8"-24, GC
1шт.
358901R1
SLOTTED NUT
5/8-NF slt type 5
1шт.
33
185439C91
STEERING KNUCKLE
KNUCKLE ASSY, steering LH
1шт.
33
185440C91
STEERING KNUCKLE
KNUCKLE ASSY, steering RH, Inc. 35
1шт.
427652
SLOTTED NUT,1"-14, G5
NUT, 1-NF slt type 5
1шт.
137258
COTTER PIN
3/16" x 1 3/4"
1шт.
936727R1
WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk
1-1/32 x 2-1/4 x 1/4
1шт.
36
186052C1
PIN,50.8mm OD x 508mm L
ROD, steering knuckle, king pin
1шт.
25-1224
SLOTTED NUT,1 1/2"-6, G5
NUT, 1-1/2 pln slt type 5
1шт.
551293R1
WASHER
1-17/32 x 3 x 11 ga
1шт.
137318
COTTER PIN,1/4" x 3"
Pin, Split (Cotter). 1/4" x 3"
1шт.
936727R1
WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk
1.031 x 2.25 x .25
1шт.
37
182795C1
BUSHING,101.68mm ID x 127mm OD x 44.7mm L
axle pivot
1шт.
39
194024C1
SUPPORT
ASSY, steering axle, Serial Range: -14025
1шт.
39
1308816C2
SUPPORT
ASSY, steering axle, Start Serial: 14026
1шт.
454998
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2 x 1 type 8
1шт.
380916R1
BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8
3/4 x 1-1/2 type 8
1шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 PHC flange lock type 8
1шт.
195312C1
FLANGE NUT,Flg, USR, 1/2"-13, G8
WASHER, .812 x 1.500 x .179 hdn
1шт.
40
177748C1
SPACER
steering axle support 13/16 x 1-1/4 x 2-13/16
1шт.
41
183494C1
SUPPORT ASSY.
SUPPORT ASSY, rod rear, 92 to 120 in. axle
2шт.
42
181444C1
TIE-ROD,1" - 8
ROD ASSY, axle rod rear eye, 92 to 120 in. axle
2шт.
23313R1
HEADED PIN,7/8" x 3 1/2"
PIN, HEADED, 7/8" x 3 1/2"
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
9849633
NUT,1"-8, G5
1шт.
43
181442C2
BOLT
axle front eye, 92 to 120 in. axle
2шт.
23729R1
HEADED PIN,22.23mm OD x 76.2mm L
PIN, 7/8 x 3 hd type 5
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
44
183491C1
SUPPORT ASSY.
SUPPORT ASSY, rod front, 92 to 120 in. axle
2шт.
Выбрано товаров: 103
