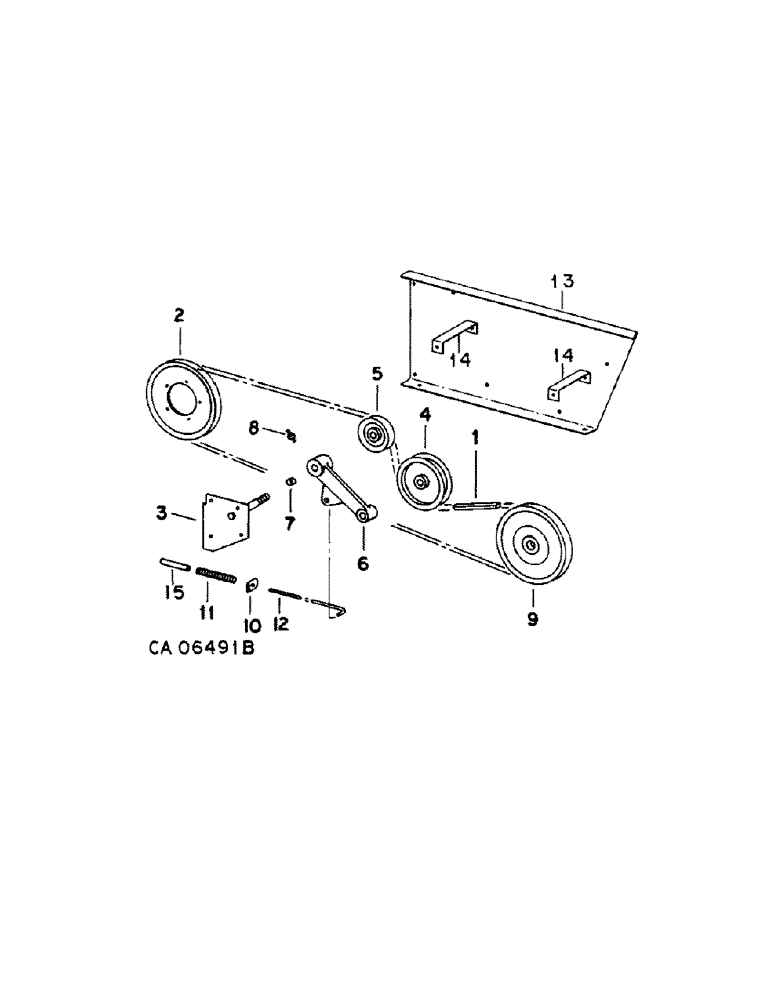

Запчасти Case IH 1460 (20-16) - SEPARATOR, STRAW SPREADER DRIVE, S/N 23401 AND ABOVE, S/N 23400 AND BELOW WITH STRAW CHOPPER Separation

1

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive, OC 0.630" W x 222.59" L

1шт.

2

566516R91

PULLEY ASSY.

PULLEY ASSY, spreader drive, 9.75 in. OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

1315275C91

SUPPORT ASSY, drive tightener, replaces 1302354C1

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

181126C91

PULLEY

drive tightener, 6.75 in. OD

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

5

181127C1

PULLEY

idler, with .635 ID bearing, used with support 1302354C1, Serial Range: -42000

1шт.

5

1315269C1

PULLEY

idler, with .510 ID bearing, used with support 1315275C1, Start Serial: 42001

1шт.

6

181153C91

LEVER ASSY.

LEVER ASSY, tightener arm, includes ref. no. 7

1шт.

7

165704C1

BUSHING

tightener lever

2шт.

25548R1

WASHER

.812 x 1.500 x .219 PHC hdn

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 str lub

1шт.

9

181196C2

PULLEY

spreader driven, 10 in. OD

1шт.

25234R1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

5/16 x 2-1/4 PHC type 8

1шт.

9413977

NUT

5/16 PHC p/t lock type 8

1шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

.344 x .688 x .089 PHC hdn

1шт.

10

194652C1

PIVOT

BAR, tightener rod

1шт.

11

1315223C1

SPRING

tightener rod, replaces 523677R1

1шт.

12

181152C1

ROD

separator drive idler

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

13

1309121C3

SUPPORT

SHIELD, spreader drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

14

1309354C1

SUPPORT

CHANNEL, spreader drive

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

1315197C1

SPACER

tightener rod

1шт.

1315271C91

PACKAGE

support assy drive tightener, consists of, Serial Range: -42000

1шт.

1315275C1

SUPPORT ASSY.

SUPPORT, drive tightener

1шт.

1315269C1

PULLEY

idler

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.
