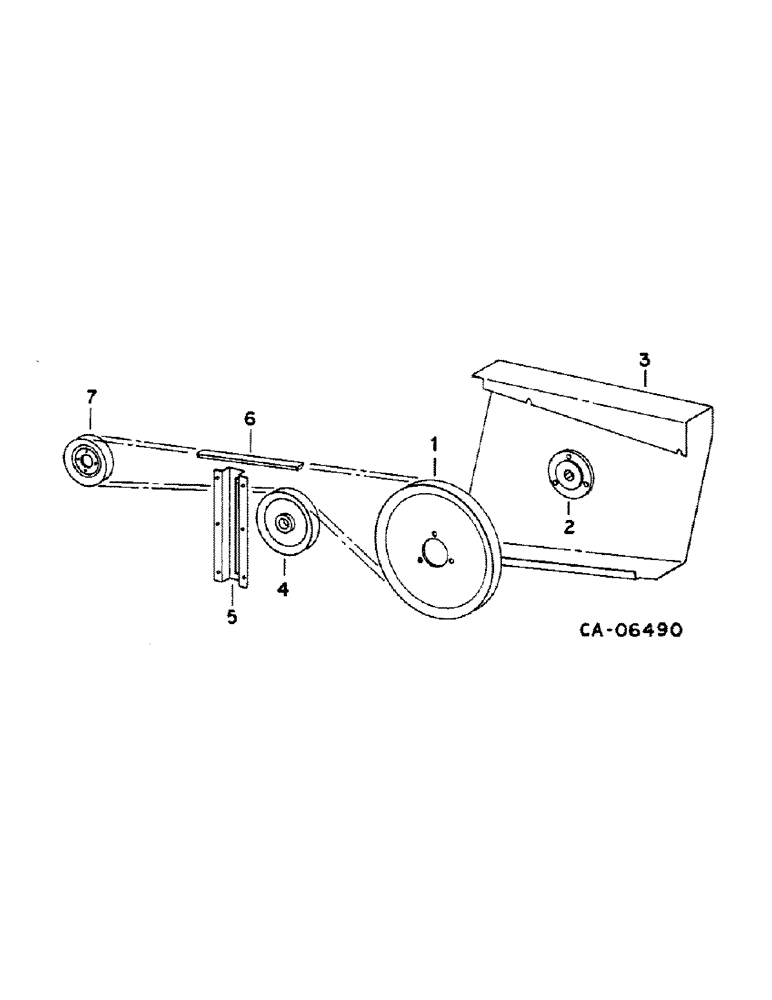

Запчасти Case IH 1460 (20-15) - SEPARATOR, STRAW SPREADER DRIVE, S/N 23400 AND BELOW Separation

1

557917R92

PULLEY

ASSY, separator driven 15.9 in. OD

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

195185C1

HUB

driven pulley

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

192296C2

SUPPORT

spreader drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

564745R91

PULLEY

drive tightener, 5-1/2 in. OD

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

121547

PIN

3/16 x .580 UHDN clevis

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

5

161589C1

SUPPORT

drive tightener pulley

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

153359C1

V-BELT,0.63" W x 186.87" L

Straw Spreader Drive 0.63" W x 186.87" L

1шт.

7

195163C2

PULLEY

ASSY, spreader drive, 5 in. OD

1шт.
