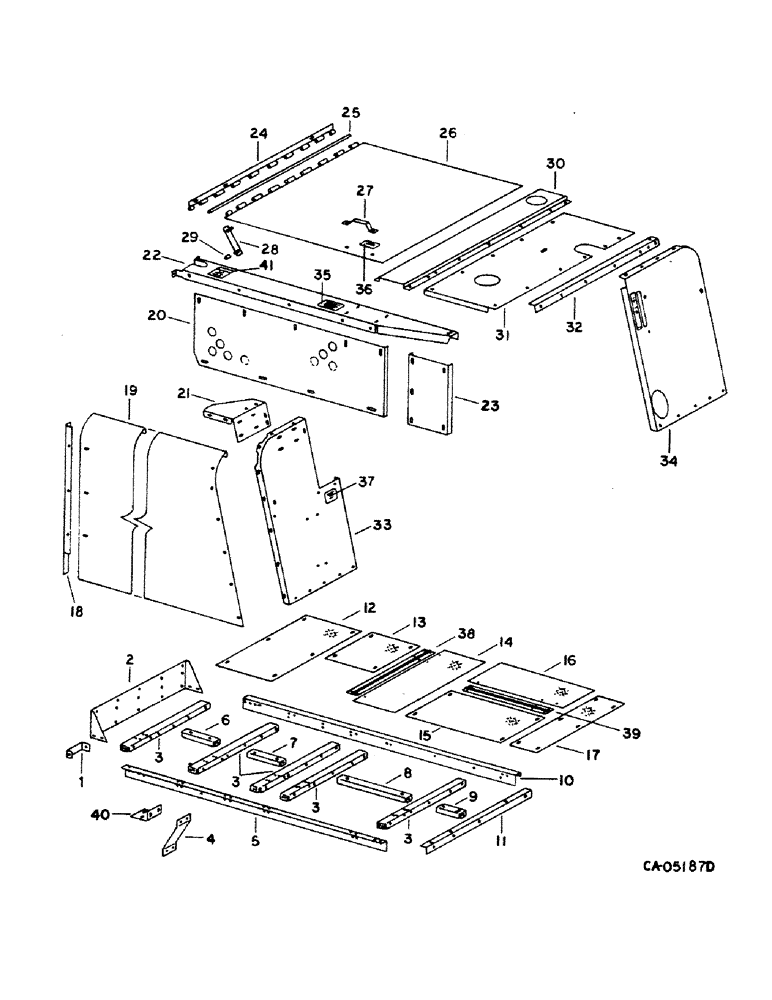

Запчасти Case IH 1460 (20-11) - SEPARATOR, ENGINE SHIELD AND SERVICE DECK Separation

1

188419C1

CHANNEL

grain ank rear upper LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp slt-truss-hd

1шт.

2

193435C2

SUPPORT

engine service deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

3

192959C4

SUPPORT

deck

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

4

187506C1

SUPPORT

separator valve, used w/valve 187505C91

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

22859R1

WASHER

.344 x .750 x .164

1шт.

5

188368C1

ANGLE

LH deck support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

6

188081C1

SUPPORT

deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

7

194461C1

SUPPORT

deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

194460C1

SUPPORT

deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

9

194459C1

SUPPORT

deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

192960C3

SUPPORT

deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

193146C3

ANGLE

SUPPORT, engine deck rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

1шт.

12

194456C2

PLATE

engine compartment

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 znd hex-washer-hd

1шт.

13

194455C2

PLATE

engine compartment

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 znd hex-washer-hd

1шт.

14

186694C2

DOOR

belt adjusting access, separator drive

1шт.

15

188096C2

PLATE

engine deck left center

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 znd hex-washer-hd

1шт.

16

186692C2

DOOR

separator drive housing

1шт.

17

192596C3

PLATE

BAR, engine compartment

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 znd hex-washer-hd

1шт.

18

188377C1

ANGLE

shield stiffener upper LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

19

193154C3

SUPPORT

rear upper lift trim

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

20

1302703C1

PLATE

rotor cover to service deck, replaces 194469C1 and 194465C1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

21

195356C1

SUPPORT

LH rear upper shield unloader tube saddle support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

22

1319647C91

SUPPORT

assy, door and hood, includes ref. no. 35 and 41, replaces 186195C91

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

23

194465C1

CHANNEL

engine cover support, Serial Range: -14026

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

24

194477C2

HINGE

rotor door cover

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

25

194478C1

ROD

rotor door hinge

1шт.

26

186197C92

DOOR

ASSY, engine and rotor drive cover, includes ref. no. 36

1шт.

27

160638C1

HANDLE

rotor door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

28

1302413C1

PROP

BAR, door hold-up

1шт.

29

568257R1

SPACER,1/2" Tube x 3/8"

door hold-up

2шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16-18 w/face p/t lock

1шт.

567532R1

WASHER

.328 x .50 x .16

1шт.

30

186757C1

SUPPORT

hood support engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

31

192604C3

SUPPORT

top cover rear, machines w/o aspirator

1шт.

31

1324172C3

SUPPORT

top cover rear, machines w/aspirator

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

32

192599C3

ANGLE

engine hood support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

180087

SPRING

5/16 x 2 znd type 5

1шт.

33

186194C93

SUPPORT

ASSY, rear engine LH, includes ref. no. 37

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

34

193159C2

SUPPORT

rear engine RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

35

188198C1

PRODUCT GRAPHIC

caution

1шт.

36

188200C1

PRODUCT GRAPHIC

caution

1шт.

68819C1

CAUTION DECAL

PRODUCT GRAPHIC, caution

1шт.

38

186695C1

HINGE

door

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

39

186693C1

HINGE

door

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

40

1301037C1

ANGLE

separator valve, used w/valve 1301171C1

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

41

1319494C1

PRODUCT GRAPHIC

caution

1шт.
