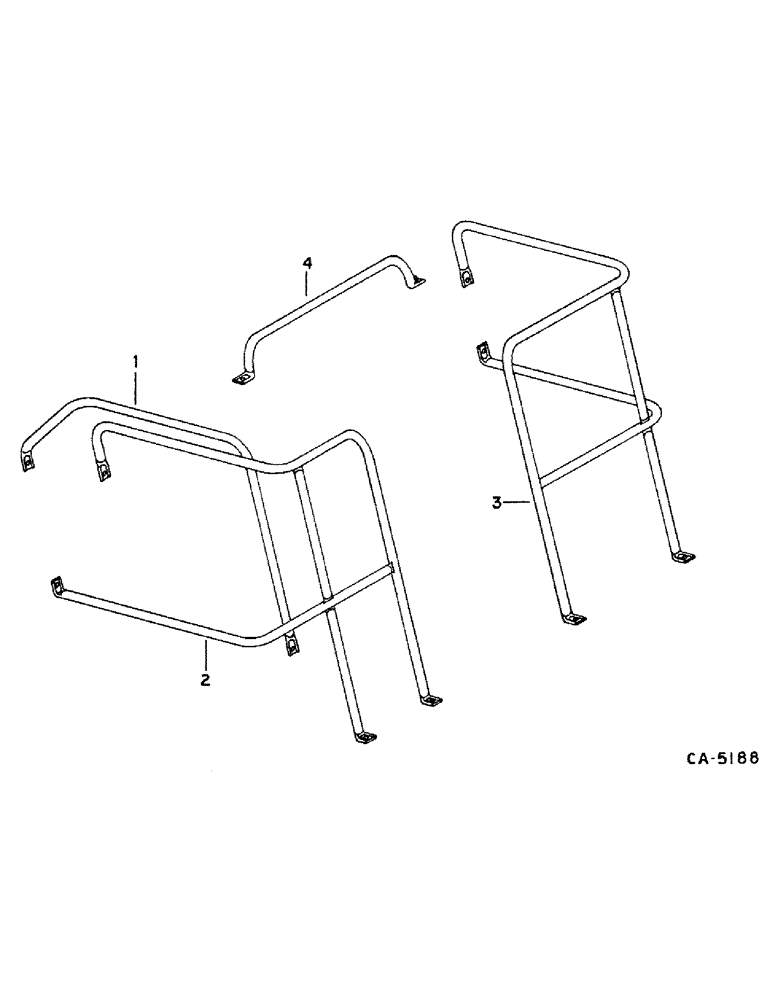

Запчасти Case IH 1460 (20-08) - SEPARATOR, REAR HANDRAILS Separation

1

193136C1

RAIL

service deck to grain tank hand

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

2

193089C1

RAIL ASSY.

RAIL ASSY, service deck LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

3

193090C1

RAIL

ASSY, service deck RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

4

195104C1

ROD

service deck RH

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
