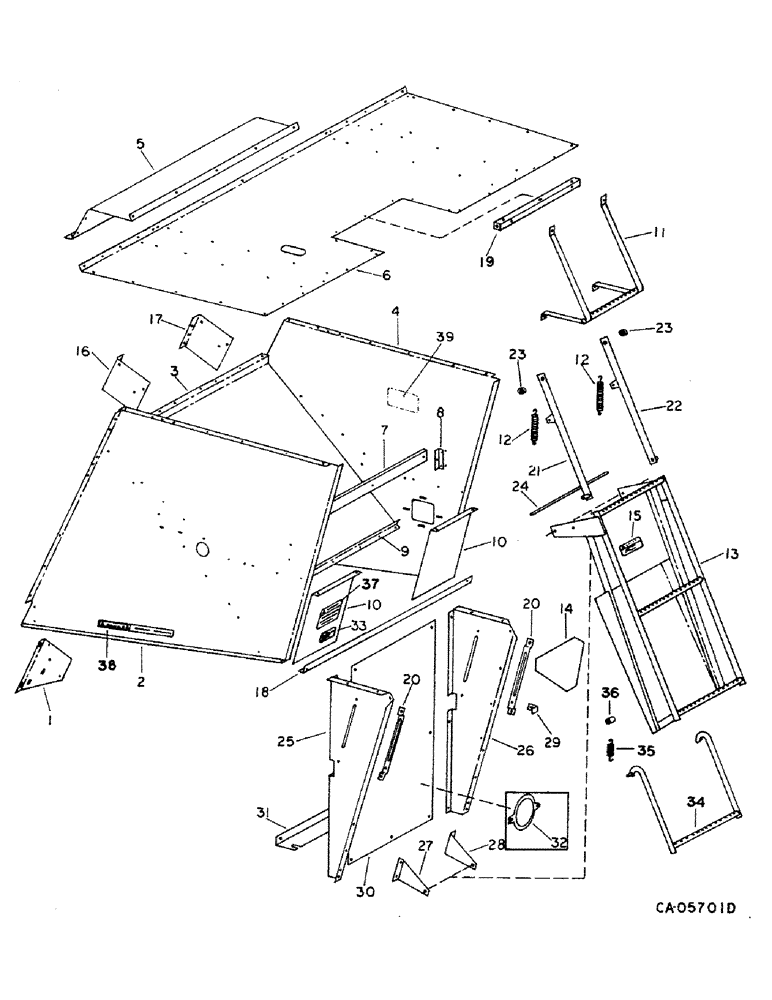

Запчасти Case IH 1460 (20-05) - SEPARATOR, SEPARATOR HOOD AND SERVICE LADDER, S/N 2830 AND ABOVE Separation

1

SUPPORT, separator hood, refer to group 14 under steering axle shield

1шт.

2

192378C5

SUPPORT

separator hood side LH, includes ref. no. 38, replaces 1302697C92

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

192313C5

SUPPORT

straw discharge

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

1302698C92

SUPPORT

separator hood side RH, includes ref. no 39

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

191315C1

SUPPORT

engine deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, 5/16 x 3/4 self tap

1шт.

541310R1

SPRING NUT

5/16 type N speed

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

6

193102C3

SUPPORT

service deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/15 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

7

185399C2

CHANNEL

ASSY, service ladder support

1шт.

8

194311C1

ANGLE

upper service ladder

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

194305C1

ANGLE

deflector stiffener

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

186190C93

SUPPORT

hood rear, includes ref. no. 33, w/o access panel, Serial Range: -22628

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

541310R1

SPRING NUT

5/16 N-type speed

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

10

1300294C91

SUPPORT

ASSY, hood rear access, includes ref. no. 33 & 37, with access panel, serial no. 22629 & above, Start Serial: 22629

1шт.

488837C1

SPRING NUT

5/16

1шт.

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

thumb

1шт.

11

185406C1

STEP

ASSY, upper service ladder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

12

165

SPRING

2шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

186179C93

LADDER

ASSY, rear service, includes ref.nos 14 & 15

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1/4312 x .150 PHC hdn

1шт.

14

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem

1шт.

15

2754442R1

PRODUCT GRAPHIC

danger

1шт.

16

(Not used in this applicaiton)

1шт.

17

(Not used in this application)

1шт.

18

192309C2

ANGLE

hood support rear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

19

186971C1

ANGLE

service deck rear support

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

186980C1

SUPPORT

ladder pivot

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

21

185223C1

LEVER ASSY.

LEVER ASSY, ladder slip LH

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

22

185224C1

LEVER ASSY.

LEVER ASSY, ladder slip RH

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

23

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

ladder lip lever

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

24

174790C1

ROD

service ladder hinge, Serial Range: -12000

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

118140C1

NUT

push-on

1шт.

25

185404C3

PLATE

SUPPORT, rear service ladder

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

26

185405C3

PLATE

SUPPORT, rear service ladder vertical RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

27

185227C3

BAR

rear service ladder pivot LH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

28

185228C3

SUPPORT

BAR, rear service ladder pivot RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

29

186606C2

BAR

ladder stop

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 x flange lock

1шт.

30

186970C2

PLATE

SHEET, ladder opening front

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

92068R1

NUT

ladder sheet

1шт.

31

186972C2

SUPPORT

ladder opening bottom

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

32

188315C1

DOOR

fuel tank shut-off access, Serial Range: -52623

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

126177

WING NUT

NUT, 1/4 wing

1шт.

33

2754446R1

PRODUCT GRAPHIC

caution

1шт.

34

181181C1

LADDER

STEP ASSY, service ladder extension

1шт.

23042R1

WASHER

.531 x 1.000 x .027

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

35

472179R1

SPRING

over center ladder extension

1шт.

36

181185C1

SPACER

BUSHING, spring pivot

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

37

1302722C1

PRODUCT GRAPHIC

danger chopper

2шт.

38

174797C1

DECAL

PRODUCT GRAPHIC, danger

2шт.

39

185442C1

DECAL

PRODUCT GRAPHIC, danger

1шт.
