Запчасти Case IH 1460 (12-17) - POWER, ETHER STARTING Power

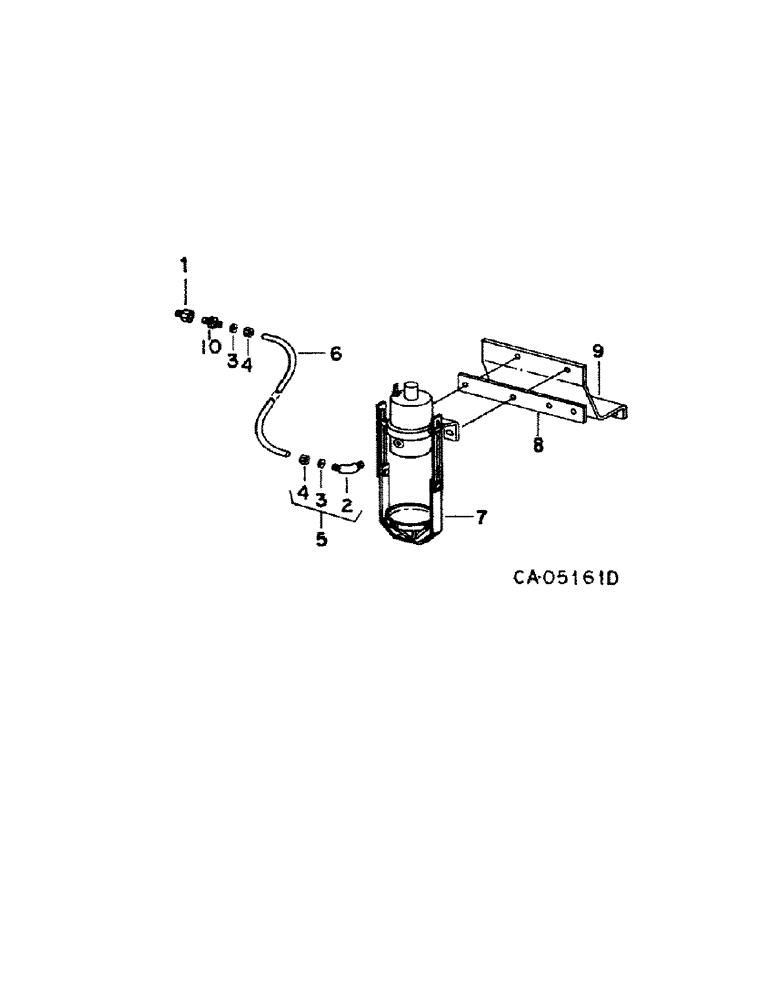

Схема запчастей Case IH 1460 - (12-17) - POWER, ETHER STARTING Power
5
4
6
3
4
3
7
1
8
2
10
9

Артикул

Название

Примечание

Количество

1

269635R91

NOZZLE CAP

NOZZLE, ether

1шт.

2

140304

ELBOW

ASSY, 1/8 ball sleeve ext/thd 90D

1шт.

3

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

4

121220

TUBE NUT

NUT, tube connector

2шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube, includes ref. nos. 2, 3 and 4

1шт.

6

TUBE, ether start, use 20 in. of 1/8 OD copper tubing from 60 ft. roll marked 995059R1 & two 121220 nuts & two 121322 sleeves

1шт.

7

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether injuection, composed of

1шт.

395686R1

GASKET

ether starting injector

1шт.

121851C1

RETAINER

injector, bail assy

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

107607C2

BAR

relay mounting

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

104412C2

BRACKET

ether solenoid mounting

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

298608C11

FITTING

CONNECTOR, 1/8 pln ball sleeve tube

1шт.

385064R91

FLUID

starting, 12 oz. can

1шт.

Выбрано товаров: 20
