(12-17[A]) - POWER, ENGINE BELT DIAGRAM

Запчасти Case IH 1460 (12-17[A]) - POWER, ENGINE BELT DIAGRAM Power

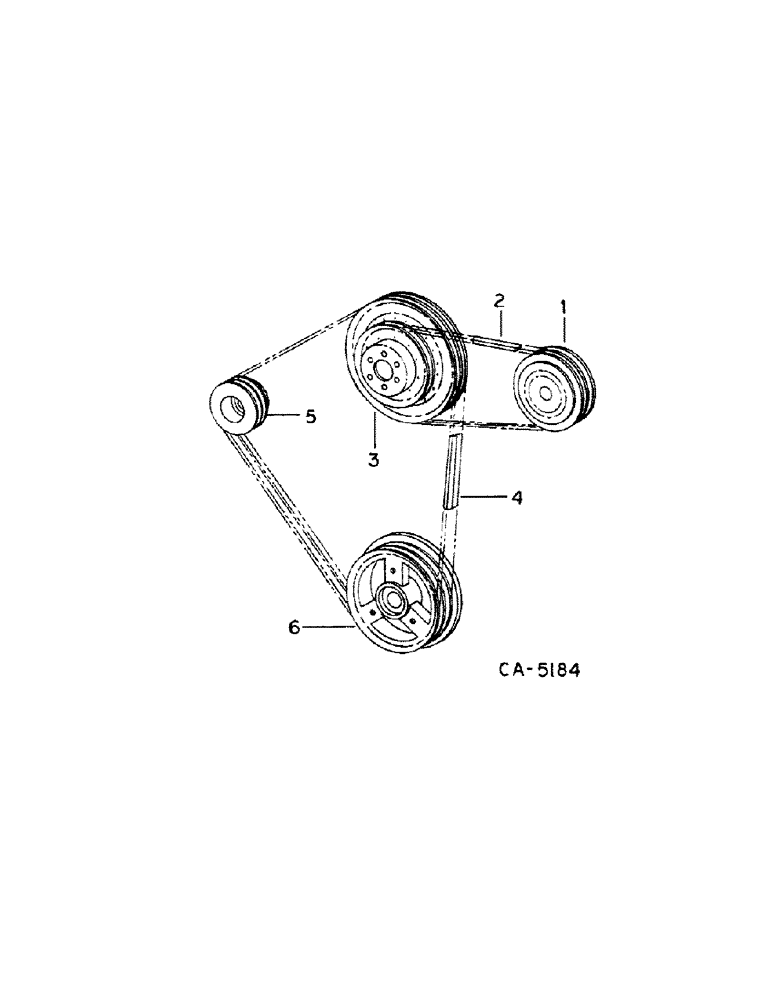

Схема запчастей Case IH 1460 - (12-17[A]) - POWER, ENGINE BELT DIAGRAM Power
1
4
3
5
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PULLEY ASSY, compressor, refer to group 13 under air conditioner compressor and condenser

1шт.

2

BELT, compressor drive, refer to group 13 under air conditioner compressor and condenser

1шт.

3

PULLEY, water pump, refer to eng-5 engine catalog

1шт.

4

537072R91

SET OF BELTS

Matched, Fan

1шт.

5

PULLEY, alternator-generator, refer to group 8 under alternator- generator and mountings

1шт.

6

DAMPER ASSY, vibration, refer to eng-5 engine catalog

1шт.
