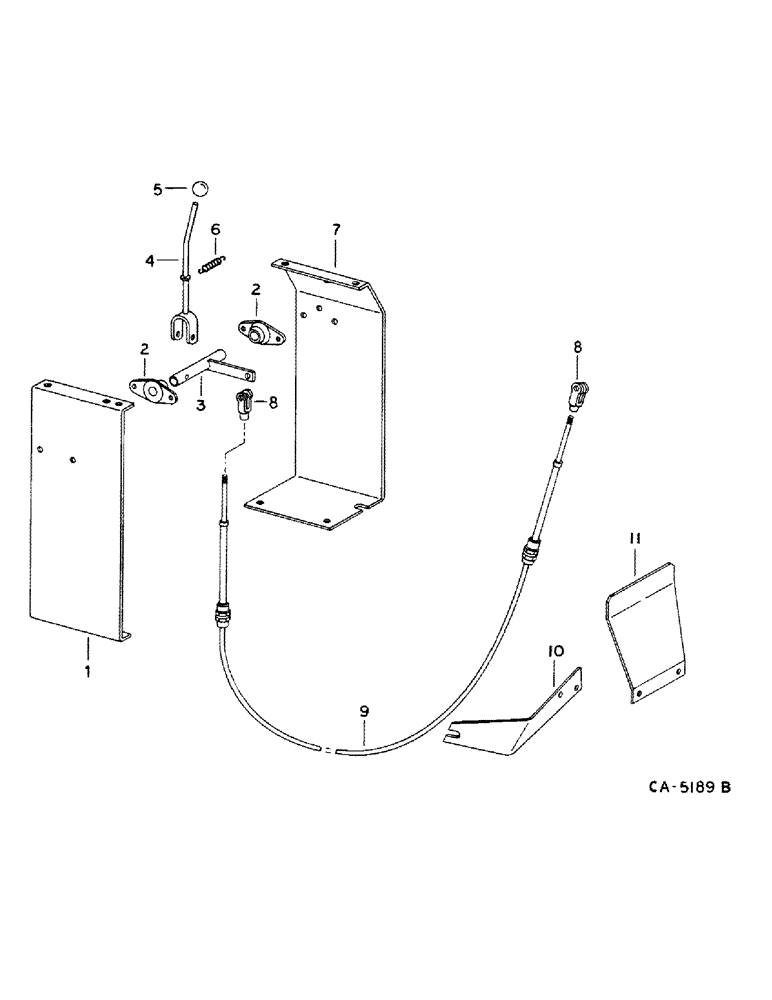

Запчасти Case IH 1460 (12-15) - POWER, THROTTLE CONTROLS, S/N 22000 AND BELOW Power

1

192985C1

SUPPORT

throttle left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znp flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

2

164864C91

FLANGE,15.89mm ID

BEARING ASSY, throttle control shaft

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znp flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt-truss-hd

1шт.

3

192984C1

SUPPORT

ASSY, throttle control

1шт.

4

164846C91

ROD

ASSY, throttle control

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

5

198935C1

KNOB

throttle control

1шт.

6

860060R1

SPRING

throttle control rod

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

7

192986C1

SUPPORT

throttle right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znp flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

8

117824

YOKE

CLEVIS, #10-32 x 1-9/16 pln LT adj

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

20155R1

CLEVIS PIN,3/16" x .719"

PIN, 3/16 x .719 clevis

1шт.

9

1329389C1

CABLE

ASSY, throttle, replaces 196506C1

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

10

187534C2

SUPPORT

throttle rear

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

183777C2

SUPPORT

SHIELD, throttle cable rear

1шт.
