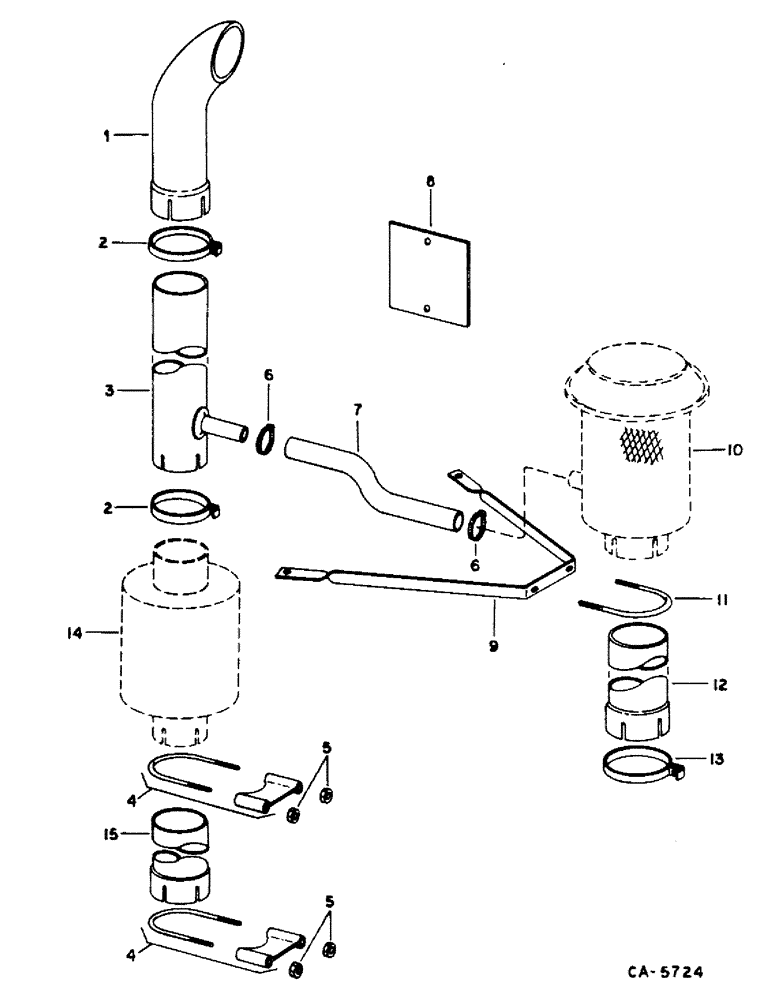

Запчасти Case IH 1440 (12-05) - POWER, ASPIRATED PRE-CLEANER PRE-SCREENER, FOR USE WITH SPARK ARRESTER Power

1

527269R1

PIPE

exhaust elbow

1шт.

2

391156R1

CLAMP

exhaust pipe

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

3

533182R1

BODY

EJECTOR, exhaust

1шт.

4

68219C91

KIT

PACKAGE, muffler clamp, includes ref. no. 5

1шт.

5

535993R1

NUT

muffler clamp

2шт.

6

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, ejector hose

2шт.

7

131399C1

HOSE,31.75 mm ID x 469.9 mm, SAE 20R4 CLASS D2

31.75 mm ID x 469.90 mm, SAE 20R4, CLASS D-2 or D-1, Exhaust Ejector

1шт.

8

121985C1

PLATE

air intake cover

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

121840C1

SUPPORT

pre-cleaner

1шт.

10

130918C91

PRESCREENER ASSY.

PRE-CLEANER, PRE-SCREENER ASSY

1шт.

11

121839C1

BOLT,5/16" - 18 x 4.88" W x 5.30" L

U-BOLT, support

1шт.

120376

NUT,5/16"-18, G5

1шт.

12

131065C2

TUBE

air cleaner intake

1шт.

13

390462R91

CLAMP

air cleaner intake pipe

2шт.

14

ARRESTER, spark, refer to this group under spark arrester

1шт.

15

60504C1

PIPE

spark arrester

1шт.
