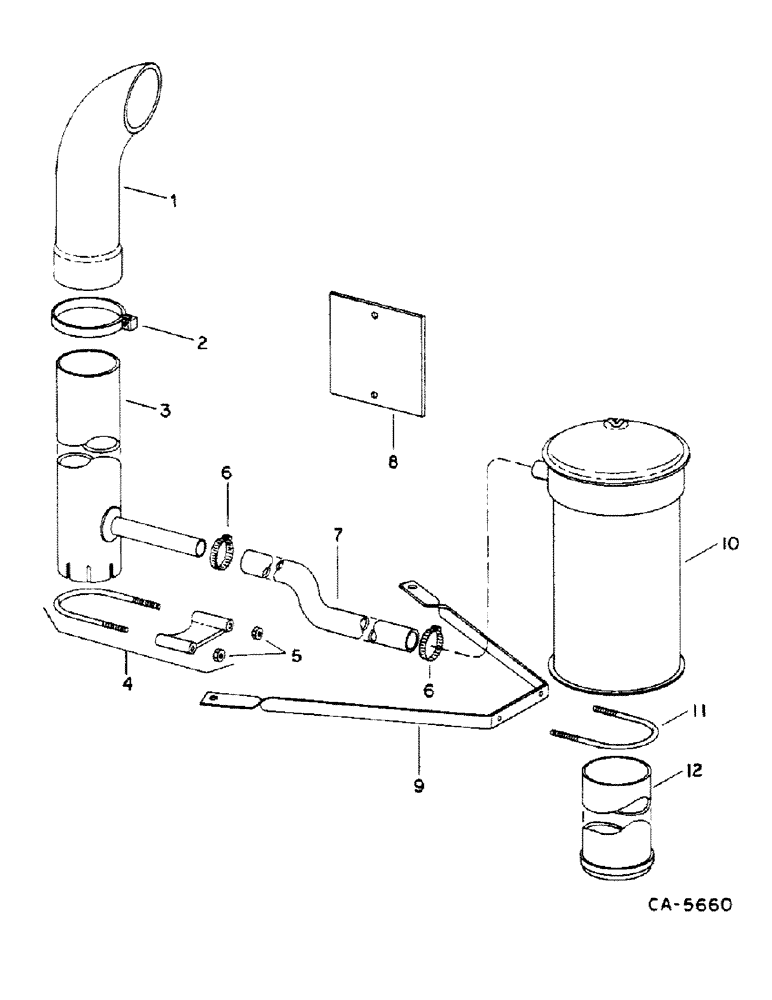

Запчасти Case IH 1440 (12-02) - POWER, ASPIRATED PRE-CLEANER, PRE-SCREENER, S/N 1500 AND BELOW Power

1

527269R1

PIPE

exhaust

1шт.

2

391156R1

CLAMP

exhaust pipe

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

533182R1

BODY

EJECTOR, exhaust

1шт.

4

68219C91

KIT

PACKAGE, muffler clamp

1шт.

5

535993R1

NUT

muffler clamp

2шт.

6

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, ejector hose

2шт.

7

HOSE, exhaust ejector, use 24 in. from stock marked 407001R2

1шт.

8

121985C1

PLATE

air intake cover

1шт.

9

121840C1

SUPPORT

pre-cleaner

1шт.

10

533100R91

PRESCREENER

PRE-CLEANER, pre-screener assy, refer to this group under pre-cleaner, pre-screener for service parts

1шт.

11

121839C1

BOLT,5/16" - 18 x 4.88" W x 5.30" L

U-BOLT, support

1шт.

12

121908C1

TUBE

air cleaner intake

1шт.
