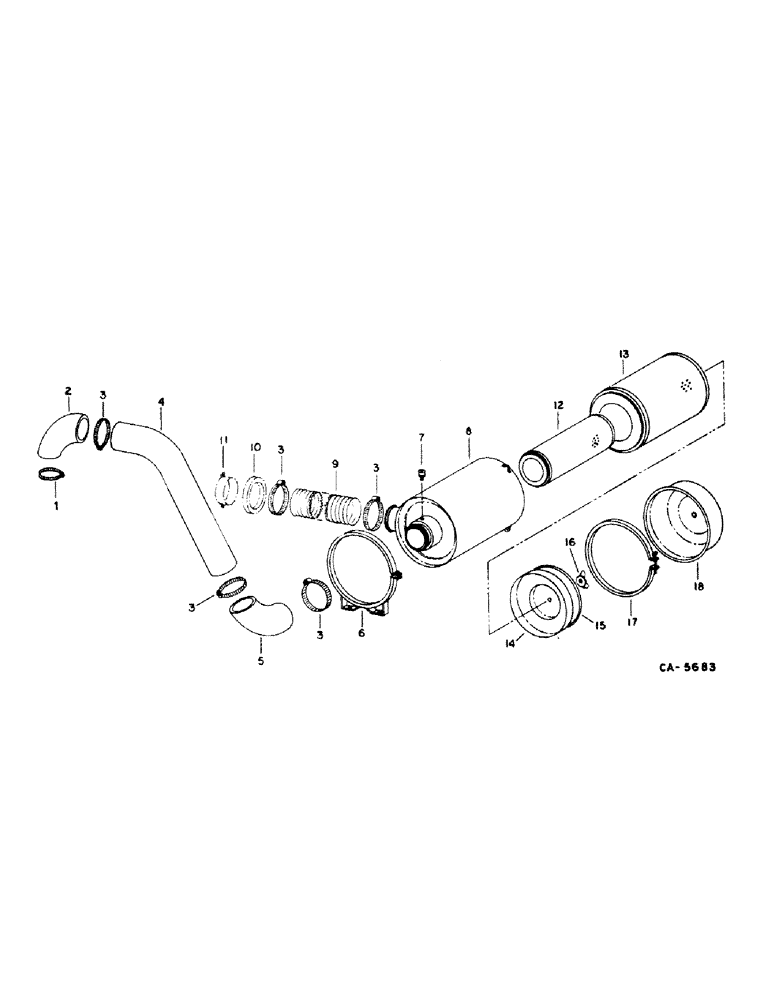

Запчасти Case IH 1440 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

530751R92

CLEANER ASSY.

CLEANER ASSY, air dry type, includes ref nos. 12 thru 18

1шт.

1

146569C1

CLAMP

1шт.

2

548225R1

INTAKE AIR HOSE,3.25" ID, 4.00" ID x 6.50"

ELBOW, inlet engine

1шт.

3

146570C1

CLAMP

air cleaner inlet hose

5шт.

4

121569C1

TUBE,3" Length

ASSY, air cleaner outlet

1шт.

5

218899R1

ELBOW

air cleaner outlet

1шт.

6

259922C91

BAND

air cleaner mounting

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 znd type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

366078C1

INDICATOR

air restriction

1шт.

8

HOUSING ASSY, air cleaner, not serviced separately, order cleaner assy, 530751R92

1шт.

9

130720C1

INTAKE AIR HOSE,4.50" ID x 60.00"

Air Cleaner Inlet 4.50" ID x 60.00"

1шт.

10

SEAL, air cleaner tubing, refer to group 6 under rotary screen chute

1шт.

11

TUBE ASSY, air cleaner inter, refer to group 6 under rotary screen chute

1шт.

12

530270R2

AIR CLEANER

ELEMENT, safety

1шт.

13

529821R2

AIR CLEANER

ELEMENT, primary

1шт.

14

383610C1

BAFFLE

1шт.

15

225067R1

O-RING,10.62" ID x 0.27" Width

dust cap

1шт.

16

412078C1

WING NUT

NUT

1шт.

17

891128R91

CLAMP

1шт.

18

529820R1

CUP

CAP, dust

1шт.
