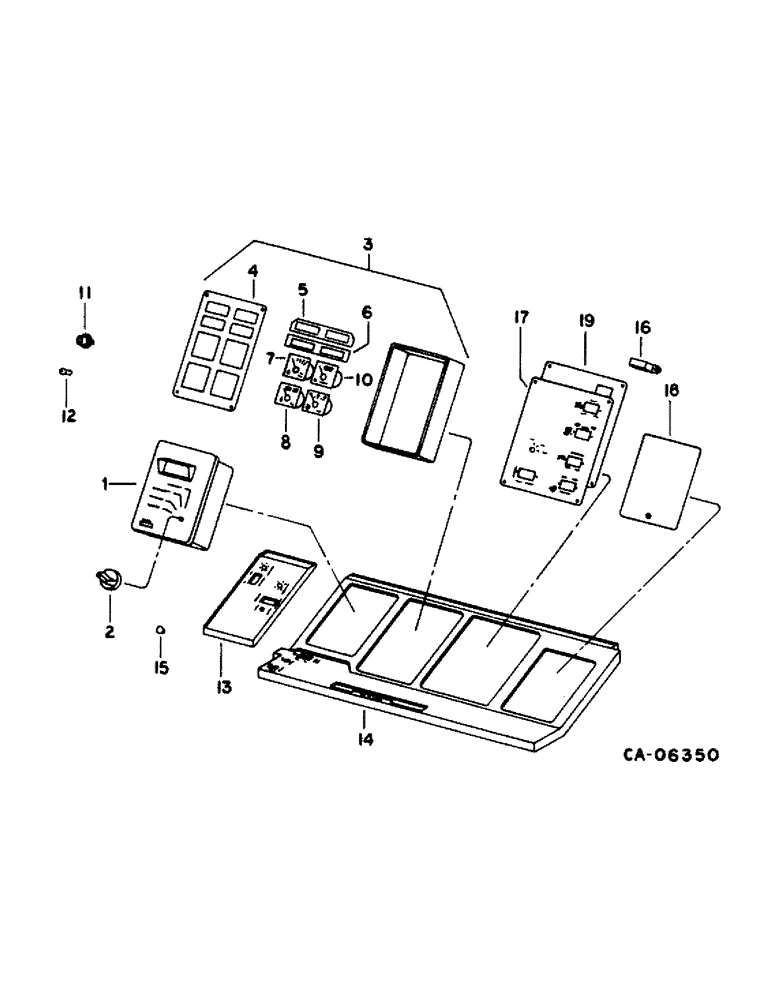

Запчасти Case IH 1440 (11-02) - INSTRUMENTS, INSTRUMENTS AND GAGES, S/N 20001 AND ABOVE Instruments
№
Артикул
Название
Примечание
Количество
1
245256C91
TACHOMETER
SYSTEM, multi-position, replaces R187512C91, includes ref no. 2
1шт.
26232R1
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW, no. 10-16 x 3/4 PHC O/HDCR tap
1шт.
2
196980C1
KNOB
multi-position tachometer
1шт.
192208
SET SCREW,Hex Soc, #8-32 x 3/16"
SCREW, no. 8 x 3/16 c/pt znp hdl/s set
1шт.
3
198067C91
ELECTRICAL GAUGE
GAUGE ASSY, cluster, includes ref nos. 4 thru 12
1шт.
26232R1
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW, no. 10-16 x 3/4 PHC O/HDCR tap
1шт.
4
121608C1
GASKET
BEZEL AND GASKET ASSY
1шт.
5
187596C1
LENS
warning lights
1шт.
6
187597C1
LENS
warning lights
1шт.
7
121606C1
ELECTRICAL GAUGE
GAUGE, oil pressure
1шт.
8
121607C1
METER
VOLTMETER
1шт.
9
121604C1
ELECTRICAL GAUGE
GAUGE, fuel
1шт.
10
121605C2
ELECTRICAL GAUGE
GAUGE, temperature
1шт.
11
121611C1
SOCKET
ASSY, lamp
8шт.
12
20627R1
BULB,C2F, #194, 14V
no. 194
8шт.
13
1301223C3
COVER
right console switch support
1шт.
Ref. 13 Not as shown in this picture.
1шт.
26232R1
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW, no. 10-16 x 3/4 PHC O/HDCR tap
1шт.
14
1324973C1
COVER
W/PRODUCT GRAPHIC, right console, replaces 1301222C4
1шт.
26232R1
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW, no. 10-16 x 3/4 PHD O/HDCR tap
1шт.
15
353-404
PLUG,Dome, .500" hole, Nylon
Header height & auto reel Dome, .500" hole, Nylon
4шт.
15
183617C1
PLUG
RH console
1шт.
15
353-408
PLUG,Dome, .750" hole, Nylon
calibration pot
1шт.
16
1301238C1
PLUG
auto header & auto reel
2шт.
156664
SCREW,Cross Oval Hd, #6 - 32 x 5/8"
1шт.
17
1301226C2
BAR
COVER, right console switch support
1шт.
26232R1
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW, no. 10-16 x 3/4 PHC O/HDCR tap
1шт.
18
187573C1
COVER
fuse panel
1шт.
26232R1
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW, no. 10-16 x 3/4 PHC O/HDCR tap
1шт.
19
1301227C1
PLATE
right console insert
1шт.
Выбрано товаров: 30
