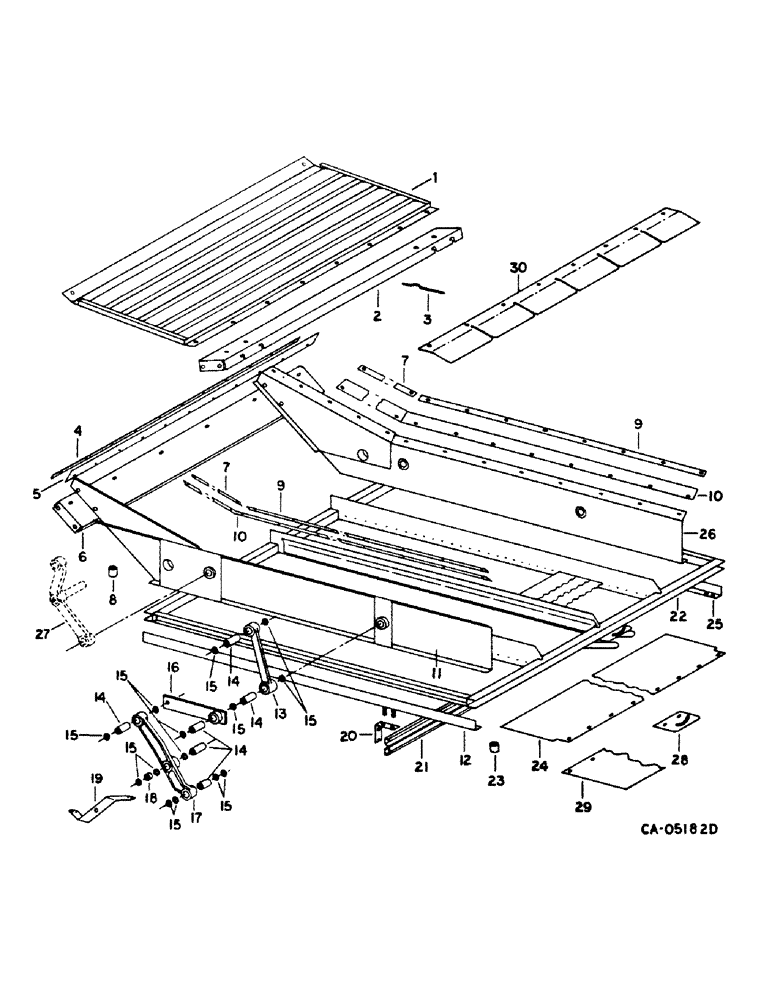

Запчасти Case IH 1440 (23-09) - AUGER BED, SHOE AND SHOE SIEVE, CHAFFER SIEVE Grain Pan, Shoe & Shoe Sieve

1

192056C1

GRAIN PAN

PAN ASSY, grain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

2

192060C1

SUPPORT

Chaffer pan support

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

175114C1

FINGER,Formed, 1 Prong, 264mm L

auger bed

13шт.

4

192048C1

BAR

front Chaffer frame seal

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

5

192047C1

SEAL,63.5mm W x 1143mm L

STRIP, Chaffer frame front

1шт.

6

192044C1

SUPPORT

Chaffer frame

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

7

192052C2

BAR

Chaffer frame seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/hwd tap

1шт.

8

493933R1

SPACER,5/8" Tube x 1 7/16"

Chaffer sieve support front, Serial Range: -1500

2шт.

8

186646C1

SPACER,5/8" Tube x 15/16"

Chaffer sieve support front, Start Serial: 1501

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 x 2-1/4 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

9

192053C1

BAR

Chaffer frame seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

10

192051C3

SEALING STRIP

Chaffer frame

2шт.

11

185430C4

RAIL

ASSY, Chaffer left

1шт.

12

193379C1

SUPPORT ASSY.

SUPPORT ASSY, Chaffer LH, Serial Range: -1500

1шт.

12

186369C1

ANGLE

Chaffer support LH, Start Serial: 1501

1шт.

13

175131C91

ARM ASSY.

ARM ASSY, rear hanger, includes Ref. no. 14

2шт.

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

5/8 x 6-1/2 type 8

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

14

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

rear hanger arm

1шт.

15

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

rear hanger arm

1шт.

16

188010C91

ARM ASSY.

ARM ASSY, shoe rear, includes Ref. no. 14

2шт.

17

192941C92

LEVER ASSY.

LEVER ASSY, shoe, includes Ref. no. 14

2шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4 crg type 1

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

9412231

NUT

5/8 phc p/t lock type 8

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage znd

1шт.

18

168250C1

RING

SPACER, shoe and Chaffer lever

2шт.

19

193107C2

SUPPORT

shoe lever LH

1шт.

19

193108C2

SUPPORT

shoe lever RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

193381C1

ANGLE

rear deflector, Serial Range: -2388

2шт.

20

186674C1

ANGLE

rear deflector, Start Serial: 2389

1шт.

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

1шт.

120376

NUT,5/16"-18, G5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

192070C2

CHANNEL

rear

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

172840C3

SIEVE

ASSY, 1-5/8 close slat Chaffer, corn standard, optional for rice and grain, includes Ref. no. 28

1шт.

Ref. 22, See SB 081-87 new chaffer Sieves.

1шт.

22

172839C4

SIEVE

ASSY, 1-1/8 adj Chaffer, standard for rice and grain, includes Ref. no. 28

1шт.

22

172841C2

SIEVE

ASSY, 1-5/8 corn Chaffer, standard for corn, optional for rice and grain, includes Ref. no. 28

1шт.

22

1319092C1

SIEVE

Peterson Chaffer, parts accessory

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

23

612233R1

SPACER,5/8" Tube x 1 1/8"

Chaffer sieve support rear

2шт.

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

3/8 x 2-3/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

24

195186C2

SEAL

SEAL, Chaffer

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

20824R1

WASHER

.344 x 1.500 x .054

1шт.

25

193380C1

SUPPORT ASSY.

SUPPORT ASSY, Chaffer RH, Serial Range: -1500

1шт.

25

186370C1

ANGLE

Chaffer support RH, Start Serial: 1501

1шт.

26

185431C4

RAIL

ASSY, Chaffer right

1шт.

27

LEVER ASSY, Chaffer drive hanger, refer to this group under shaker shaft and auger drive

2шт.

28

186675C1

ADJUSTING PLATE

Chaffer lever

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 crg type 1

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

29

1302784C1

STRIP

CHAFFER, extension flap

1шт.

30

1319258C1

COVER

SUPPORT, Chaffer finger cover

1шт.
