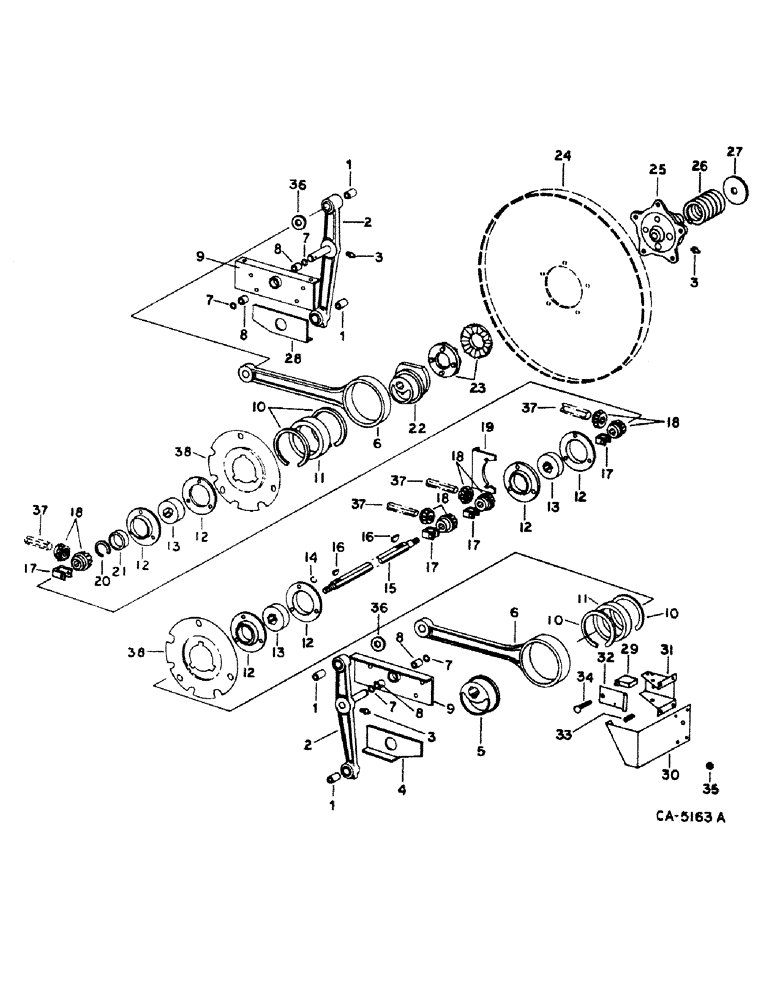

Запчасти Case IH 1440 (23-03) - AUGER BED, SHOE AND SHOE SIEVE, SHAKER SHAFT AND AUGER DRIVE, S/N 1500 & BELOW Grain Pan, Shoe & Shoe Sieve

1

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

chaffer drive hanger arm

4шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

2

191432C91

LEVER ASSY.

LEVER ASSY, chaffer drive hanger, includes ref. no. 1

2шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

21/32 x 1-1/4 x 11 ga znd

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 str self-tap lub

3шт.

4

186684C1

SUPPORT

seal chaffer rail LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

5

183053C1

CAM

shaker shaft Pitman drive LH

1шт.

6

186549C1

PITMAN

shaker shaft

2шт.

7

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

front hanger support bearing

4шт.

8

551139R91

BEARING, NEEDLE

BEARING, front hanger support

4шт.

9

194649C91

SUPPORT ASSY.

SUPPORT ASSY, front hanger, includes ref. nos. 7 and 8

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

10

892775C1

SNAP RING,#475, 5.070", Int

RING, shaker shaft Pitman brg snap, replaces 630508C1

2шт.

11

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING, shaker shaft Pitman

2шт.

12

617863R1

FLANGED BEARING

RETAINER, shaker shaft bearing

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, shaker shaft

3шт.

14

132550H1

RING

shaker shaft bearing snap

1шт.

15

194178C1

SHAFT

shaker

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 CAD P/T lock type 5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

16

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

17

192377C1

YOKE

auger bed gear

4шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

185411C1

GEAR-SET

GEAR SET, auger drive bevel, 17T, matched set

4шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

19

186589C1

SUPPORT

auger drive center brg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

20

132550H1

RING

shaker shaft Pitman

1шт.

21

935856R1

BUSHING

shaker shaft Pitman

1шт.

22

191459C1

SHAFT ASSY.

CAM, shaker shaft pitman drive RH

1шт.

23

B12170

RATCHET,Clutch Slip, 94.49mm

shaker shaft drive slip clutch

2шт.

24

PULLEY, shaker shaft driven, refer to group 20 under R.H. drive

1шт.

25

195287C1

HUB

shaker shaft drive slip clutch

1шт.

26

19302K

SPRING

shaker shaft drive slip clutch

2шт.

27

167521H1

SPRING WASHER

slip clutch retainer

1шт.

28

186684C1

SUPPORT

seal chaffer rail RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.334 x1.000 x .054

1шт.

29

574649R91

SWITCH

ASSY, auger alarm

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

159358

PIN

no. 6 x 1-1/4 znd slt

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

131014

WASHER

.156 x .375 x .036

1шт.

30

194776C1

SUPPORT

auger alarm switch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

31

167323C1

SUPPORT

auger alarm switch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2.500 HD type 1

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-trus-hd

1шт.

21870R1

WASHER

17/64 x 3/4 16 ga C-Z

1шт.

32

167324C1

HINGE

STRIP, auger alarm switch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23099R1

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 znd std-hd

1шт.

33

M296

SPRING

alarm switch strap return

1шт.

34

194304C1

STOP

ASSY, auger alarm switch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

35

117959

GROMMET,5/16" ID x .719" x .062"

5/16 ID x .72 OD

1шт.

36

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

1шт.

37

AUGER ASSY, 4, refer to this group under auger bed

1шт.

38

193978C1

RETAINER

shaker shaft

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 ZNP slt-truss-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
