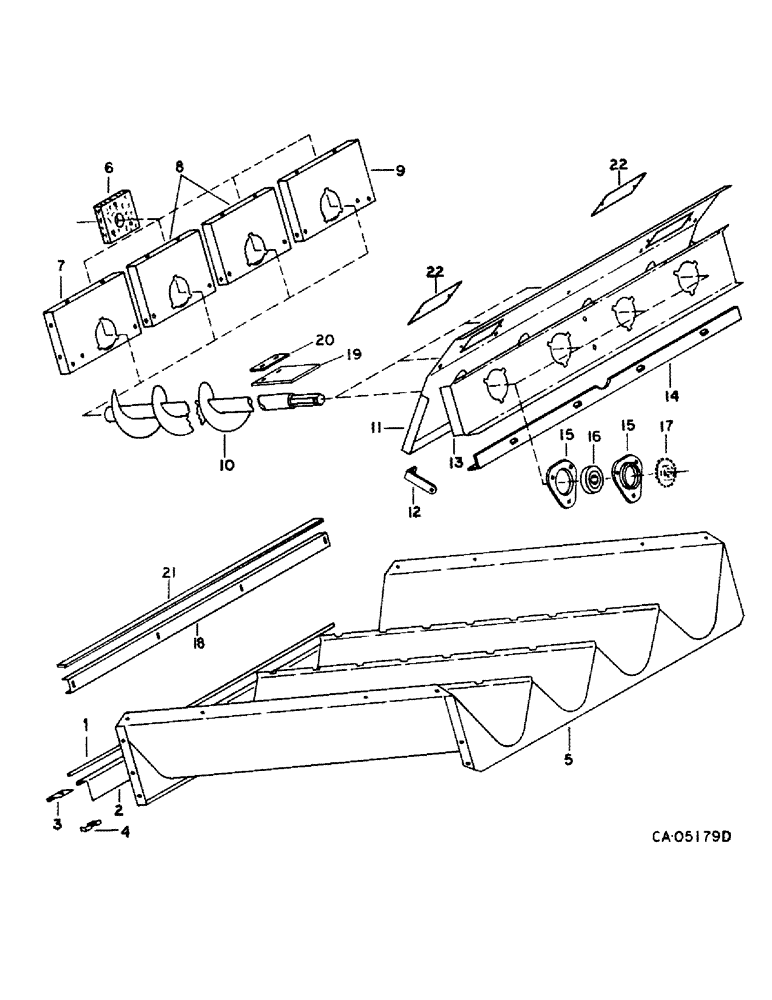

Запчасти Case IH 1440 (23-01) - AUGER BED, SHOE AND SHOE SIEVE, AUGER BED Grain Pan, Shoe & Shoe Sieve

1

584862R1

ROD

auger bed door hinge, Serial Range: -2210

1шт.

2

191666C1

HINGE

auger bed front, Serial Range: -2210

1шт.

3

191664C1

HINGE

auger bed door, Serial Range: -2210

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

565449R1

CLIP

auger front door retainer, Serial Range: -2210

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

185038C3

TRAY

TROUGH ASSY, auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

193414C2

BOARD

front auger brg

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT, 3/8 x 2-1/4 crg type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD P/T lock type 5

1шт.

7

191662C1

SUPPORT

front auger LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

191659C1

SUPPORT

front auger center

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

191663C1

SUPPORT

front auger RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

10

193398C1

AUGER

ASSY, RH rotation, Serial Range: -30000

4шт.

10

1308541C1

AUGER

ASSY, RH rotation, Serial Range: -30001

4шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

1шт.

11

1321373C1

PLATE

FILLER, rotor to auger drive support, replaces 193556C1 by also ordering 2 covers, 1319548C1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

193554C1

SUPPORT

pan

2шт.

13

191655C1

SUPPORT

auger drive gears, Serial Range: -30000

1шт.

13

1309225C1

SUPPORT

auger drive gear, Start Serial: 30001

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

14

188359C1

ANGLE

auger support stiffener

1шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE, auger drive bearing, Serial Range: -30000

8шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

571424R1

FLANGE

auger shaft bearing

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

16

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, auger drive, Serial Range: -30000

4шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING ASSY, auger drive, Start Serial: 30001

4шт.

17

GEAR, auger drive bevel, matched set, refer to this group under shaker shaft and auger drive

1шт.

18

1319163C91

COVER

TROUGH ASSY, auger trough clean out, includes ref. no. 21, replaces 185067C1, Start Serial: 2211

1шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

cleanout cover wing

1шт.

19

1302112C1

STRIP

auger bed grain spreader

1шт.

20

1302113C1

BAR

grain spreader strip

1шт.

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

no. 28 type F

1шт.

21

1309426C1

SEALING STRIP,13mm W x 990mm L x 6mm Thk

clean out trough, used with 1319163C91

1шт.

22

1319548C1

BAR

COVER, grain lose sensor, used w/filler, 1321373C1

1шт.

1300666C91

KIT

PACKAGE, auger bed grain spreader strips, parts accessory, includes ref. nos. 19, 20 and instructions

1шт.

1300638C1

KIT

PACKAGE, auger adapter, to adapt swedge tube augers, consists of auger bearing support (NSS), bar (NSS), bolt (NSS), gear, 14T (NSS), instructions (NSS)

1шт.

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING, auger

1шт.

571424R1

FLANGE

auger bearing

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
