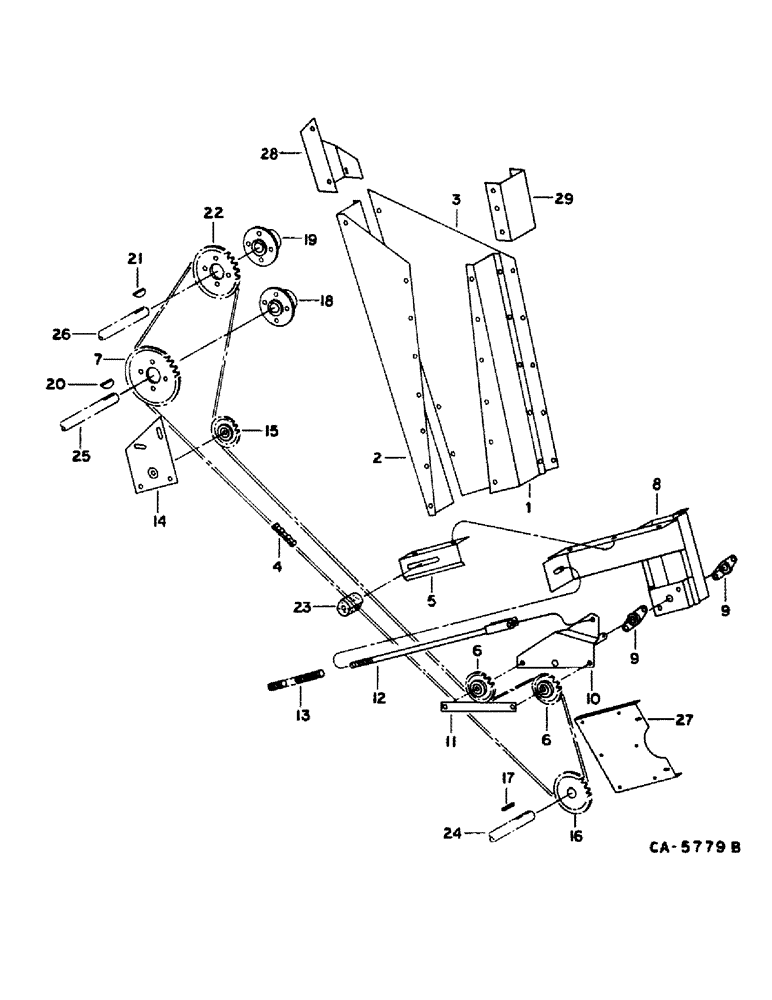

Запчасти Case IH 1440 (25-17) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, S/N 10001 AND ABOVE Elevators

1

188027C1

SHIELD

inner elevator upper

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188026C1

SHIELD

inner elevator lower

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188028C1

SHIELD

outer elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

CHAIN ASSY, raised elevator drive, use 259 links from 10 ft. roll marked 1791D and one connectin glink 1310D

1шт.

5

1302487C1

SUPPORT

elevator tightener block

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

631905R91

SPROCKET

elevator chain idler, 17T

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

7

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33T, slow speed

1шт.

7

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 27T, fast speed

1шт.

7

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator spout, parts accessory, 24 tooth

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

182765C1

SUPPORT

ASSY, idler pivot

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

9

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSY, idler pivot

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

182758C1

ARM

ASS, double idler pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108 (or as required)

6шт.

11

182771C1

BAR

double idler tie

1шт.

12

182768C1

ROD ASSY.

ROD ASSY, idler spring tension

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1.000 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

13

523677R1

SPRING

double idler tensioning

1шт.

14

182777C1

SUPPORT ASSY.

SUPPORT ASSY, stationary idler

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

15

631905R91

SPROCKET

stationary idler, 17T

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

16

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd c/pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 sae B Woodruff

1шт.

18

1302217C1

HUB

grain sprout drive sprocket, Serial Range: -50000

1шт.

18

1302216C1

HUB

grain sprout drive sprocket, Start Serial: 50001

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd c/pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

19

1302216C1

HUB

grain elevator drive sprocket

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd c/pt set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

, Serial Range: -50000

1шт.

20

124554

O-RING

5/16 x 1 sae B Woodruff, Start Serial: 50001

1шт.

21

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 sae B Woodruff

1шт.

22

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27T

1шт.

22

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator head shaft, 24T, parts accessory

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

23

582018R1

BLOCK

grain elevator drive chain

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

606546R1

JAM NUT

5/8 hex jam

1шт.

21782R1

WASHER

.656 x 1.500 x .054, tightener

1шт.

24

SHAFT, elevator drive, refer to this group under tailings elevator drive and jackshaft

1шт.

25

AUGER ASSY, grain delivery, refer to this group under grain elevator

1шт.

26

SHAFT, grain elevator head, refer to this group under grain elevator

1шт.

27

Not used this application

1шт.

28

183265C1

EXTENSION

shield front

1шт.

29

183266C1

EXTENSION

shield rear

1шт.
