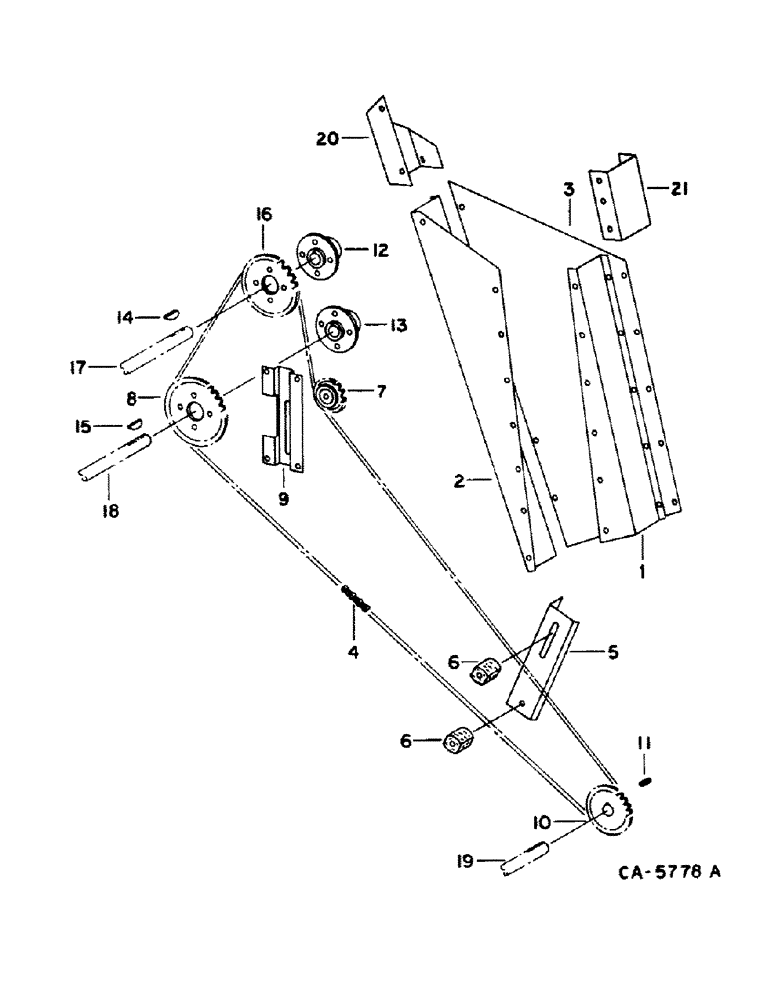

Запчасти Case IH 1440 (25-15) - GRAIN AND TAILINGS ELEVATORS, ELEVATOR DRIVE, S/N 10000 AND BELOW Elevators

1

188027C1

SHIELD

inner elevator upper

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

188026C1

SHIELD

inner elevation lower

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

188028C1

SHIELD

outer elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

CHAIN ASSY, grain elevator drive, use 229 links from 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

Ref. 4, Description should read, 220 Links.

1шт.

5

194884C1

SUPPORT

elevator tightener block

1шт.

6

582018R1

BLOCK

elevator driven chain tightener

2шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

7

631905R91

SPROCKET

elevator chain idler, 17T

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

8

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator spout, 33T

1шт.

8

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator spout, 24T, parts accessory

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

9

192964C1

SUPPORT

grain elevator idler

1шт.

10

192139C2

SPROCKET

ASSY, grain elevator drive, 25T

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znp sq/hd c/pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

11

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

12

1302217C1

HUB

grain elevator drive sprocket

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd c/pt set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

1302217C1

HUB

grain elevator driven sprocket

1шт.

26202R1

SET SCREW

3/8 x 1-1/4 phc sq/hd c/pt set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

15

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

16

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 27T

1шт.

16

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator headshaft, 24T, parts accessory

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

17

SHAFT, elevator drive, refer to this group under tailings elevator drive and jackshaft

1шт.

18

AUGER ASSY, grain delivery, refer to this group under grain elevator

1шт.

19

SHAFT, grain elevator head, refer to this group under grain elevator

1шт.

20

183265C1

EXTENSION

shield front

1шт.

21

183266C1

EXTENSION

shield rear

1шт.
