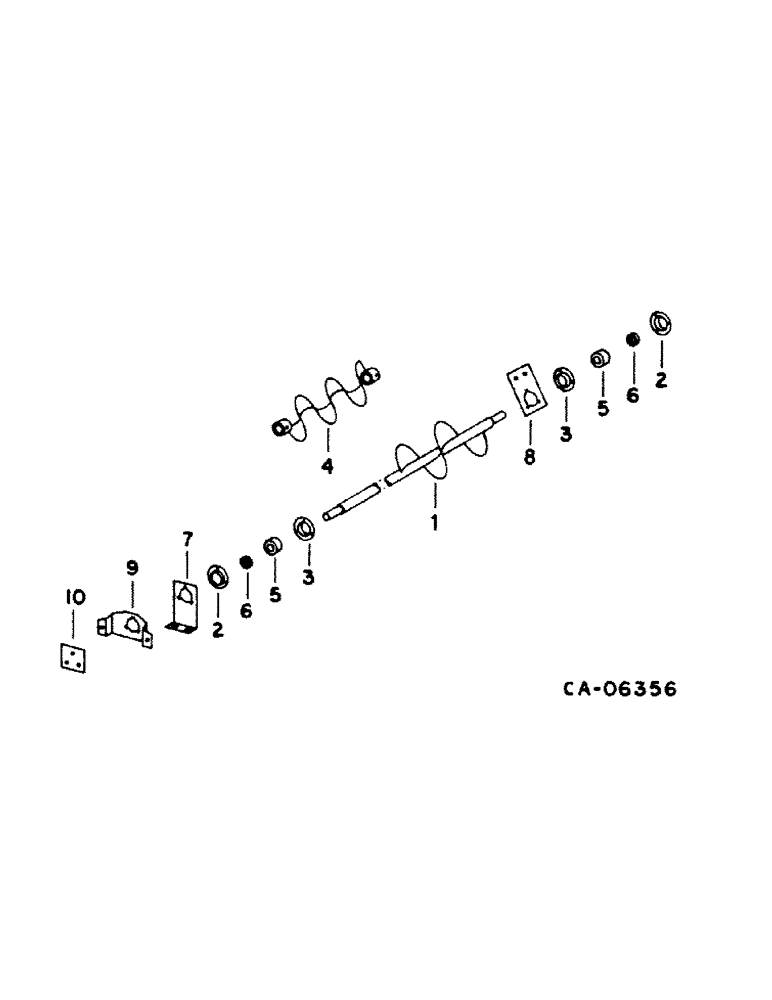

Запчасти Case IH 1440 (25-06) - GRAIN AND TAILINGS ELEVATORS, GRAIN DELIVERY AUGER Elevators

1

1319710C1

AUGER

delivery, replaces 191913C1

1шт.

Auger 1319710C1 must also be ordered for use with this package.

1шт.

2

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE W/LUB FITTING, auger brg, 2 required w/auger 191913C1, 1 required w/auger 1319710C1 at left end of auger

2шт.

2

167878C11

FLANGE

W/LUB FITTING AUGER BEARING, for use w/auger 1319710C1, at end of auger

1шт.

3

937517R1

FLANGE

auger brg grooved, 2 required w/auger 191913C1, 1 required w/auger 1319710C1, at left end of auger

2шт.

3

202909C1

BEARING HOUSING

FLANGE, auger bearing groove, for use w/auger 1319710C1, at right end of auger

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

162103C91

AUGER

ASSY, distribution

2шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

1шт.

5

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

delivery auger, 2 required w/auger 191913C1, 1 required w/auger 1319710C1 at left end of auger

2шт.

5

939475R92

BEARING ASSY

delivery auger, for use w/auger 1319710C1 at right end of auger

1шт.

6

455102R21

COLLAR

brg locking, 2 required w/auger 191913C1, 1 required w/ auger 1319710C1, at left end of auger

2шт.

6

557115R11

COLLAR

COLLAR, bearing locking, for use w/auger 1319710C1 at right end of auger

1шт.

7

191190C1

BRACKET

grain auger brg

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

183466C1

BAR

distribution auger brg RH, for use w/auger 191913C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

1319839C1

PLATE

BAR, distribution auger bearing, for use w/auger 1319710C1

1шт.

9

Not used this application

1шт.

10

Not used this application

1шт.

1319967C91

PACKAGE

ASSY, auger, note, consists of, Serial Range: -50000

1шт.

1319711C1

PANEL

SIDE, elevator head RH

1шт.

1319839C1

PLATE

PLAGE, auger brg

1шт.

939475R92

BEARING ASSY

auger

1шт.

557115R11

COLLAR

COLLAR, brg

1шт.

167878C11

FLANGE

brg

1шт.

202909C1

BEARING HOUSING

FLANGE, brg

1шт.

1302216C1

HUB

auger sprocket

1шт.

124554

O-RING

5/16 x 1 Woodruff

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

INSTRUCTIONS (NSS)

1шт.
