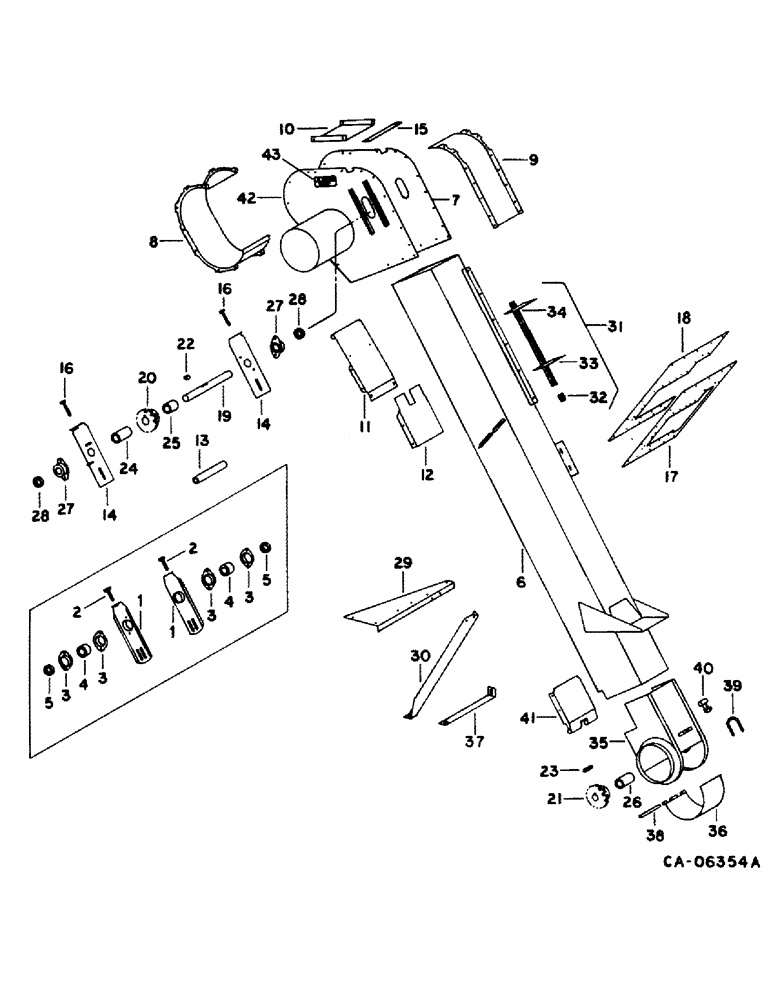

Запчасти Case IH 1440 (25-01) - GRAIN AND TAILINGS ELEVATORS, GRAIN ELEVATOR Elevators

1

170584C11

BRACKET

SUPPORT ASSY, elevator head shaft

2шт.

2

191200C1

BOLT,7/6" - 14 x 4.50", Cl 5, Full Thd

elevator head

2шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

3

F9417

FLANGE

elevator head shaft brg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, elevator head shaft

2шт.

5

455102R21

COLLAR

W/SET SCREW, elevator

2шт.

6

191608C2

ELEVATOR TUBE,115.07" Length

TUBE ASSY, grain elevator

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

1302190C1

SIDE ASSY.

SIDE ASSY, elevator head RH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

106969R1

WASHER

.344 x 1.250 x .054

1шт.

8

195422C1

SUPPORT ASSY.

SUPPORT ASSY, grain spout cover

1шт.

8

1309140C1

SUPPORT ASSY.

GRAIN SPOUT COVER, FOR RICE

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

195415C1

TOP

grain elevator head

1шт.

9

1309136C1

CHANNEL

GRAIN ELEVATOR HEAD, FOR RICE

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

195424C1

DOOR

grain elevator head

1шт.

10

1309143C1

DOOR SEAL

GRAIN ELEVATOR HEAD, FOR RICE

1шт.

11

195423C1

COVER

END, grain elevator spout

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21389R1

BOLT,Hex, 5/16" - 18 x 9", Gr 5

5/16 x 9 mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

12

183367C1

END

top false bottom

1шт.

13

191685C2

SPACER

headshaft guide lock

1шт.

14

183363C1

SUPPORT ASSY.

SUPPORT ASSY, elevator head shaft

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

183382C1

BAR

conveyor chain tightener

1шт.

16

667486R1

BOLT

BOLT, elevator head

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

17

194885C1

SEAL

grain elevator

1шт.

18

194886C2

PLATE

grain elevator seal

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

19

186723C1

SHAFT

grain elevator head

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

1шт.

20885R1

WASHER

1.156 x 2.000 x .054

1шт.

20

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 6T

1шт.

20

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 7T

1шт.

21

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 6T

1шт.

21

168683C1

SPROCKET

grain elevator boot, 7T, for use with 1 in. auger shaft

1шт.

21

1319176C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 7T

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

22

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

23

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq-parallel

1шт.

23

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq-parallel

1шт.

24

201567C1

SPACER,1" Pipe x 3 3/4"

1.049 x 1.315 x 3.75

1шт.

24

27953R1

SPACER,1 3/8" Tube x 3 3/4"

1.157 x 1.375 x 3.75

1шт.

25

516316R1

SPACER

1.049 x 1.315 x 2.5

1шт.

25

57954R1

SPACER, 1.157 x 1.375 x 2.562

1шт.

26

605822R1

SPACER

1.049 x 1.315 x 2.12

1шт.

26

1319181C1

SPACER

32.5 x 38.1 x 54mm

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

27

1302001C91

ROLLER BEARING,28.57mm ID

grain elevator head shaft

2шт.

28

557115R11

COLLAR

COLLAR W/SET SCREW, elevator

2шт.

29

191697C1

SUPPORT

elevator upper

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

30

194753C2

SUPPORT

elevator lower

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

192699C92

CHAIN,149 Links x 41.4mm = 6168.6mm

CONVEYOR ASSY, grain elevator

1шт.

31

1302201C91

ELEVATOR CHAIN,CA550, 150 Links x 41.4mm = 6210mm

CONVEYOR ASSY, grain elevator

1шт.

185053C1

RIVET

elevator flight

1шт.

32

631254R91

DRAG LINK

LINK, connecting

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

32

23880R1

OFFSET LINK

LINK, offset

1шт.

32

631253R91

LINK

plain

1шт.

33

1302204C91

CONVEYOR

W/FLIGHT, grain elevator, rubber

1шт.

185053C1

RIVET

elevator flight

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

34

SLINK, attaching, for use with 185330C91 and 1302204C91

1шт.

34

150722C91

LINK

attaching, for use w/160710C91 & 1302191C92

1шт.

35

191687C2

BOOT

ASSY, grain elevator

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

36

174194C1

DOOR

grain elevator boot corn, perforated

1шт.

Ref. 36 P/N 174194C1, for rice use non-perf.

1шт.

36

1309146C1

DOOR

grain elevator boot, non-perforated

1шт.

37

186734C2

SUPPORT

grain elevator

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

38

160748C1

PIN

grain elevator boot door

1шт.

39

664360R1

BOLT,U, 1/4" - 20 x 69.65"

grain elevator boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

40

155909C1

LATCH

grain elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1.250 hd type 1

1шт.

41

191691C1

END

false bottom grain

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

42

1312201C1

SIDE ASSY.

SIDE ASSY, elevator head LH, includes Ref. no. 43

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

43

1319494C1

PRODUCT GRAPHIC

caution, replaces 188197C3

1шт.
