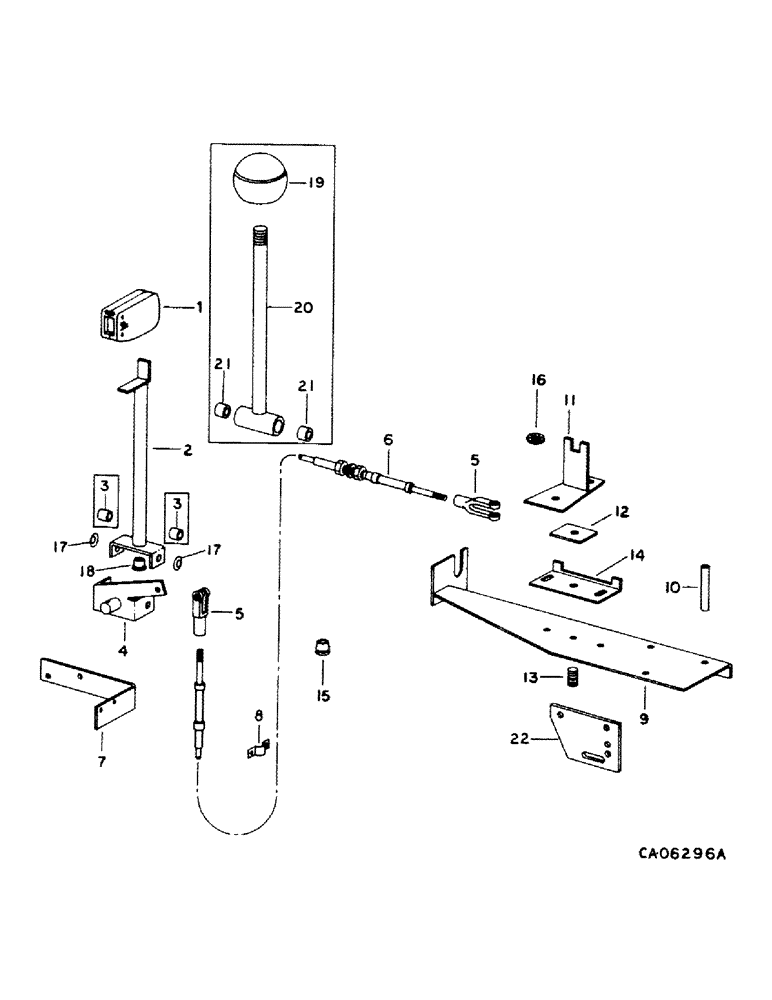

Запчасти Case IH 1440 (07-14) - DRIVE TRAIN, PROPULSION CONTROL Drive Train

1

1301180C92

HANDLE

multi-control, Start Serial: 20001

1шт.

Ref. P/N 1301180C92 Switch is P/N 91926C Grp 8, pg 6, ref. 12.

1шт.

28002R1

HEX SOC SCREW,#6 - 32 x 1/2"

SCREW, no. 6 x 1/2 pln h/shd cap

1шт.

2

183508C93

LEVER

ASSY, multi-control handle, Start Serial: 20001

1шт.

28258R1

CLEVIS PIN,1/2" x 3 7/16'"

PIN, 1/2 x 3.438 pln hdn clevis

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

3

165685C1

BUSHING

lever, for use w/lever, 183508C91

1шт.

4

1267441C1

SUPPORT ASSY.

SUPPORT ASSY, control lever, replaces 193275C1

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

5

144242

CLEVIS

5/16-24 adj rod end

2шт.

120368

NUT,5/16"-24, G5

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN, 5/16 x .940 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

6

1329388C1

CABLE

drive control, replaces 193280C1

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

7

193281C1

ANGLE

drive control cable

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

195593C1

CLAMP

drive control cable upper

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

9

198783C1

SUPPORT

ASSY, pump control, for Sunstrand

1шт.

9

183713C1

SUPPORT

ASSY, pump control, for Eaton

1шт.

10

573174R1

SPACER,5/8" Tube x 3"

hydrostatic pump control, for Sunstrand

3шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

14233L

SPACER,3/8" Pipe x 2 7/8"

hydrostatic pump control, for Eaton

3шт.

180165

BOLT,Hex, 7/16" - 14 x 4", Gr 5

7/16 x 4 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

11

151917C94

ARM ASSY.

ARM ASSY, pump control actuating

1шт.

22019R1

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 2

7/16 x 3-1/4 type 8

1шт.

607891R1

WASHER

.469 x 1.000 x .054

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD P/T lock type 5

1шт.

12

150627C1

FRICTION WASHER

pump control arm friction

1шт.

13

28395H

SPRING

pump control arm

1шт.

14

1301490C1

SUPPORT

pump control arm, Serial Range: -50000

1шт.

When replacing hydro pump with P# 1958073c1 must use support plate P# 1957600c4 and discard ref#14 support.

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

1317093C1

SUPPORT

pump control arm, Start Serial: 50001

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 type 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4 type 5

1шт.

15

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

hydrostatic cable

2шт.

16

159688R91

THRUST BEARING

BEARING, pump control actuating arm

1шт.

25535R1

WASHER

.469 x .922 x .065 PHC hdn

1шт.

17

366613R1

SPRING

DISK, tension spring, for use w/lever, 183508C93

2шт.

18

224871C1

BUSHING

control handle lever, for use w/lever, 183508C93

1шт.

19

175815C1

KNOB

control lever, Serial Range: -20000

1шт.

20

174776C91

LEVER

ASSY, ground speed control, Serial Range: -20000

1шт.

19876R1

PIN

1/2 x 3-17/32 clevis

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21

165685C1

BUSHING

control lever, Serial Range: -20000

2шт.

22

(Not used in this application)

1шт.
