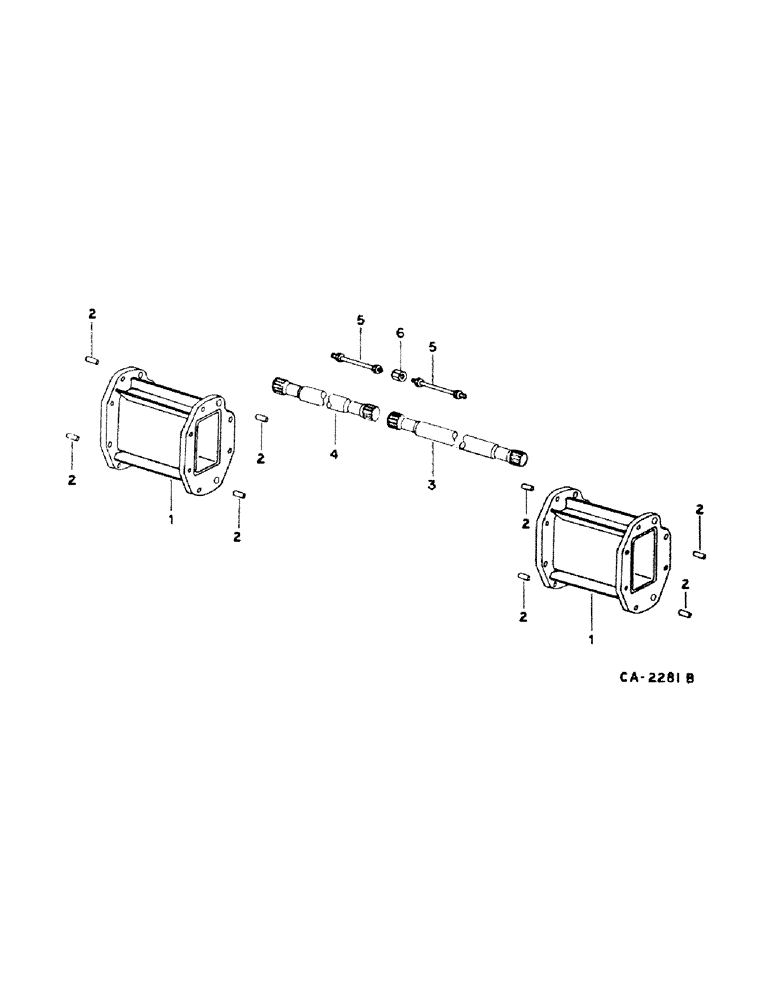

Запчасти Case IH 1440 (07-11) - DRIVE TRAIN, MAIN WHEEL EXTENSION, 120 INCH TREAD Drive Train

1

177340C2

EXTENSION

ASSY, main axle, Serial Range: -30000

2шт.

1

1319024C2

AXLE

EXTENSION ASSY, main axle, Serial Range: 30001-50049

2шт.

1

1315370C2

EXTENSION

ASSY, main axle, Start Serial: 50050

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 type 8

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 type 8

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn, for use with extensions 177340C2 and 1319024C1

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

1шт.

25548R1

WASHER

.812 x 1.500 x .219 PHC hdn, for use with extension 1315370C1

1шт.

2

177337C1

SPACER

BUSHING, axle extension end plate, Serial Range: -50049

4шт.

2

1315371C1

BUSHING

axle extension end place, Start Serial: 50050

1шт.

3

193991C1

SHAFT

LH axle drive, Serial Range: -30000

1шт.

Ref. 3 P/N 193991C1, 27.81"

1шт.

3

184221C1

SHAFT

LH axle drive, Start Serial: 30001

1шт.

Ref.3, P/N 184221C1 should read 'RH' instead of 'LH'

1шт.

4

193992C1

SHAFT

RH axle drive, Serial Range: -30000

1шт.

Ref.4 P/N 193992C1, 32.73"

1шт.

4

184220C1

SHAFT

RH axle drive shaft length is 701.25 mm , Start Serial: 30001

1шт.

Ref.4 P/N 184220C1 should read 'LH' instead of 'RH', see TS420-89

1шт.

5

TUBE ASSY, brake extension,use 7 in. of 1/4 OD steel tubing from 25 ft. roll marked 990094C1 and 2 nuts 137397, Serial Range: -30000

2шт.

5

TUBE ASSY, brake extension,use 8 in. of 1/4 OD steel tubing from 25 ft. roll marked 990094C1 and 2 nuts 137397, Start Serial: 30001

2шт.

6

442336

SUPPORT TUBE

UNION, 1/4 inverted flare plain

2шт.
