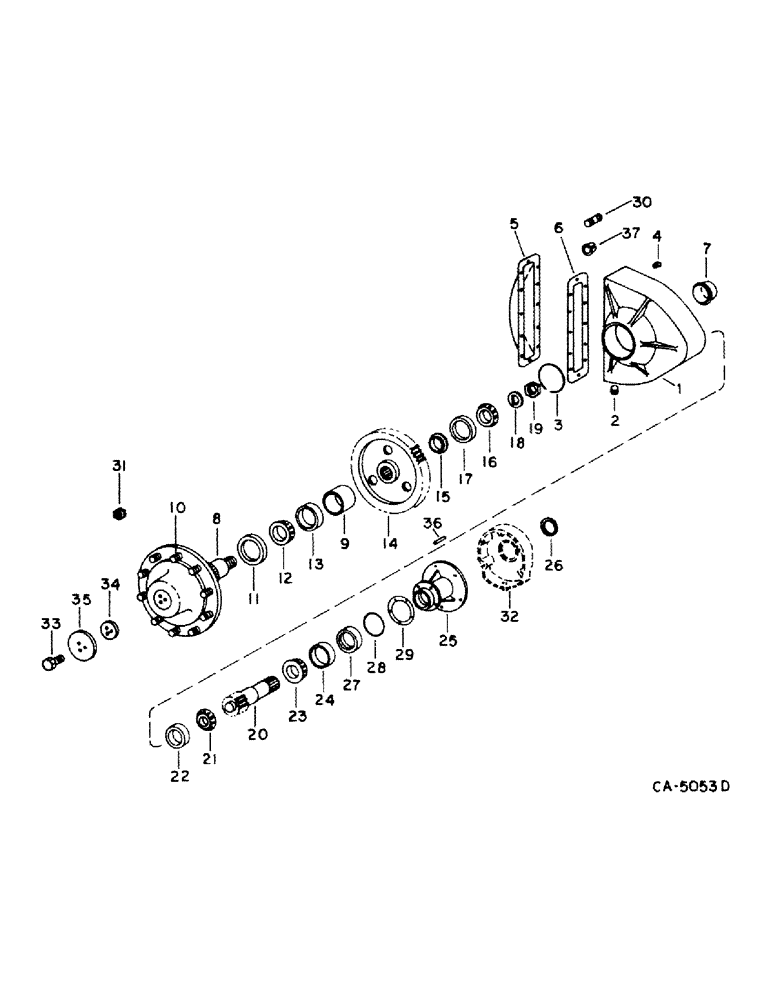

Запчасти Case IH 1440 (07-09) - DRIVE TRAIN, FINAL DRIVE Drive Train

63436C92

PARTS ACCESSORY, final drive assy LH, consists of ref nos. 1 thru 30, and 33 thru 37, Serial Range: -30000

1шт.

63437C92

PACKAGE

PARTS ACCESSORY, final drive assy RH, consists of ref nos. 1 thru 30, and 33 thru 37, Serial Range: -30000

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2 type 5

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

1277165C92

DRIVE

ASSY, final, LH

1шт.

1277166C92

DRIVE

ASSY, final, RH, consists of ref nos. 1 thru 30 and 32 thru 36 and

1шт.

1321946C1

CLEVIS

YOKE

1шт.

121961C92

CLUTCH

DISC

1шт.

188878C1

DISC

1шт.

366182R93

CLUTCH DISC

DISC

1шт.

357113R2

LINK

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

354642R1

STUD

1шт.

17028R1

BALL,7/8" Dia

1шт.

619731C1

SPRING

1шт.

1

63434C1

HOUSING

final drive, LH, Serial Range: -30000

1шт.

1

107615C1

HOUSING

final drive, LH, Serial Range: 30001-50049

1шт.

1

1277169C1

HOUSING

final drive, LH, Start Serial: 50050

1шт.

1

63435C1

HOUSING

final drive, RH, Serial Range: -30000

1шт.

31

429-1112

NUT,3/4"-16, G5

3/4-16 hex-hd type 8

20шт.

1

107616C1

HOUSING

final drive, RH, Serial Range: 30001-50049

1шт.

1

1277170C1

HOUSING

final drive, RH, Start Serial: 50050

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

28032R1

SET SCREW,Hex Soc, 5/8"-11 x 1/2"

SCREW, 5/8 x 1/2 c/pt hdl/s set

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn, for use with housings 63434C1, 63435C, 107615C1 and 107617C1

1шт.

27356R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 PHC P/T type 8

1шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC TYPE 8

1шт.

25548R1

WASHER

.812 x 1.500 x .219 PHC hdn, for use with housings 1277169C1 and 1277170C1

1шт.

2

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto sq-hd pipe

2шт.

3

107625C1

RING

snap

2шт.

4

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY, oil

2шт.

5

587078R91

PAN ASSY.

PAN ASSY

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

184229C1

SEAL

GASKET, pan

2шт.

Use 587655R1 Gasket

1шт.

7

107622C1

CAP

final drive shaft

2шт.

8

63283C92

SHAFT

final drive

2шт.

9

107627C1

SPACER

shaft outer

2шт.

10

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

20шт.

11

59881C1

OIL SEAL,96.14mm ID x 133.5mm OD x 11.89mm Thk

outer bearing cage oil

2шт.

12

63461C91

BEARING ASSY,3.25" ID x 5.25" OD x 1.5625"

ASSY, outer cone

2шт.

13

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

BEARING, outer cup

2шт.

14

107628C1

GEAR

final drive, 69T

2шт.

15

107626C1

SPACER

gear inner

2шт.

16

298033R91

TAPERED BEARING,53.98mm ID x 36.51mm W

ASSY, cone

2шт.

17

107624C1

BEARING CUP,104.78mm OD x 28.57mm W

cup

2шт.

18

404076R1

WASHER

final drive shaft

2шт.

19

528935R1

NUT

final drive shaft

2шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

20

395675R1

SHAFT

pinion, 13T, Serial Range: -30000

2шт.

20

184180C2

SHAFT

pinion, 13T, Start Serial: 30001

2шт.

The S/N 30001 and above is a three brake assy.

1шт.

21

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, cone

2шт.

22

50213V

BEARING CUP

BEARING ASSY, cup

2шт.

23

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

ASSY, cone

2шт.

24

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING ASSY, cup

2шт.

25

60002C91

ADAPTER

ASSY, brake LH

1шт.

25

60004C91

ADAPTER

ASSY, brake RH

1шт.

28138R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 8

7/16 x 1-1/8 PHC P/T type 8

1шт.

25545R1

WASHER

.469 x .922 x .134 PHC hdn

1шт.

26

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing dirt

2шт.

27

380186R92

OIL SEAL

brake housing oil

2шт.

28

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2 x 3-3/4 x 1/8

2шт.

29

376467R1

SHIM

brake housing adapter .007

1шт.

29

405627R1

SHIM

brake housing adapter .003

1шт.

29

184348R1

SHIM, brake housing adapter .015

1шт.

29

184349C1

SHIM

brake housing adapter .030, used as required

1шт.

30

441553R2

STUD

5/8-11 x 2-3/4 long, for use housings: 63434C1, 63435C1, 107615C1 and 107616C1

12шт.

30

1277171C1

STUD

3/4 x 2-7/8 long, for use with housings: 1277169C1 and 1277170C1

12шт.

25548R1

WASHER

.812 x 1.500 x .219 PHC hdn

1шт.

32

BRAKE HOUSING ASSY, refer to group 4 under master and parking brakes

1шт.

33

875933C1

BOLT,Hex, 5/8" - 11 x 2 1/4", Drilled

axle, retaining

6шт.

34

121798C1

SHIM

final drive shaft .015

1шт.

34

121799C1

SHIM

final drive shaft .018

1шт.

34

121800C1

SHIM

final drive shaft .021, used as reqd

1шт.

35

121797C1

WASHER

final drive shaft

2шт.

36

141279

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

2шт.

37

54700R1

DOWEL

BUSHING

2шт.
