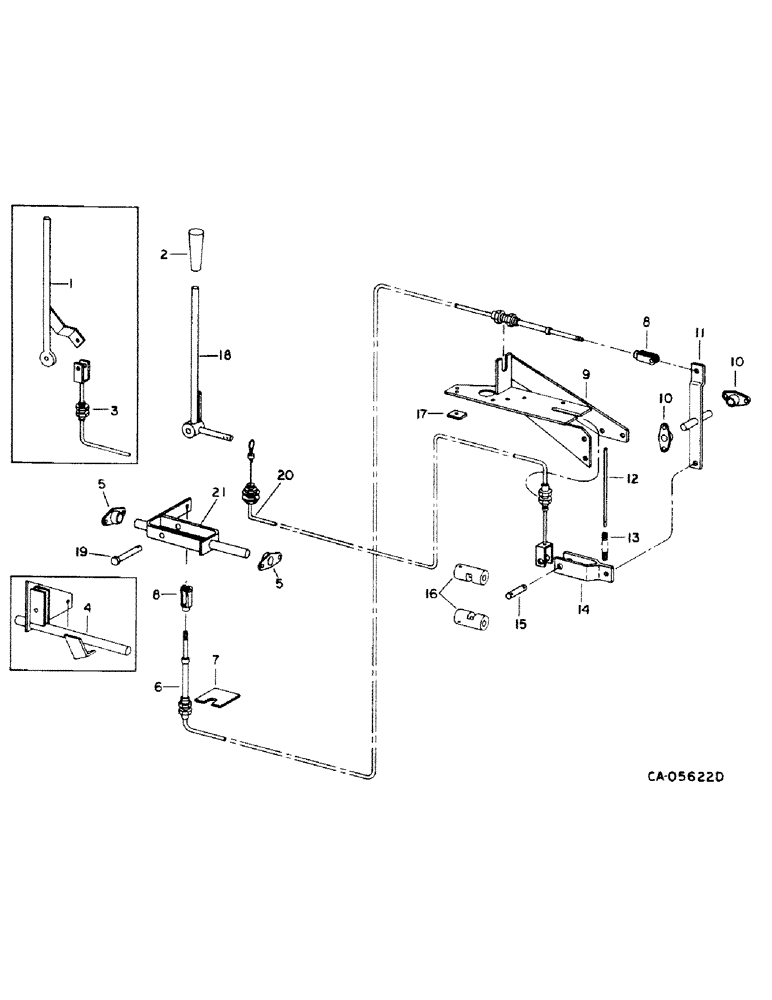

Запчасти Case IH 1440 (07-07) - DRIVE TRAIN, TRANSMISSION GEAR SHIFT AND LINKAGE Drive Train

1

192143C1

LEVER

ASSY, gear shift, Serial Range: -10000

1шт.

1

1301272C1

LEVER

ASSY, gear shift, Start Serial: 10001

1шт.

25489R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 8

1/4 x 1-3/4 PHC hex-hd type 8

1шт.

9413992

LOCK NUT,1/4"-20, GC

NUT, 1/4 CAD hex. torque lock

1шт.

2

198934C1

HANDLE

gear shift lever

1шт.

3

192671C1

CABLE ASSY.

CABLE ASSY, trans linkage, Serial Range: -60049

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

22910R1

HEADED PIN

PIN, 1/4 x 1-1/4 znd std-hd

1шт.

4

195031C2

PIVOT

ASSY, gear shift, Serial Range: -10000

1шт.

4

1301273C1

PIVOT ASSY.

PIVOT ASSY, gear shift, Serial Range: 10001-60049

1шт.

5

A63366

SPHERICAL BEARING,19mm ID

BEARING, gear shift pivot

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

1329391C1

CABLE ASSY.

CABLE ASSY, shift rail control, 101 in., replaces 196659C1

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

7

196511C1

LARGE PLATE

SUPPORT, cable nut

1шт.

8

144243

CLEVIS

3/8-24 C-Z adj rod end

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1.060 clevis

1шт.

9

194442C1

SUPPORT ASSY.

SUPPORT ASSY, shift linkage

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

10

A63366

SPHERICAL BEARING,19mm ID

BEARING ASSY, pivot support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

194439C1

LEVER ASSY.

LEVER ASSY, transmission shift lower

1шт.

12

194445C1

ROD

spring anchor

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

13

47822D

SPRING

transmission shifting retractor

1шт.

14

194437C1

LINK

ASSY, shift rail control

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

15

195108C1

PIN

3/4 x 2-15/16 shift lug

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

16

192689C1

PIN,34.93mm OD x 73.7mm L

shift rail

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

17

(Not used this application)

1шт.

18

224865C1

LEVER

ASSY, gear shift, Start Serial: 60050

1шт.

19

21899R1

HEADED PIN

PIN, 1/2 x 2.500 type 5 hd, Start Serial: 60050

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20

1321297C3

CABLE

ASSY, trans linkage, (Replaces 1221297C3), Start Serial: 60050

1шт.

19444R1

PIN,5/32" x 1 3/8", Coiled

1шт.

21

1276181C1

BRACKET

SUPPORT ASSY, shift shaft, Start Serial: 60050

1шт.
