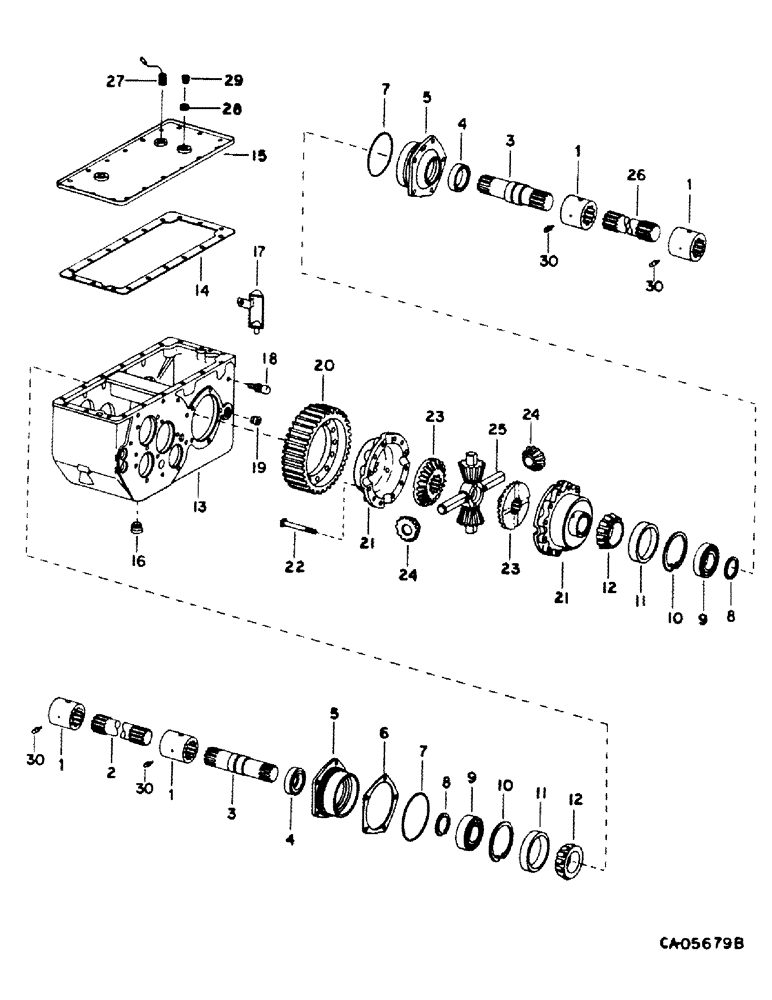

Запчасти Case IH 1440 (07-05) - DRIVE TRAIN, TRANSMISSION, DIFFERENTIAL SHAFT Drive Train

1

59890C1

PORT

SLEEVE, axle drive shaft, Serial Range: -30000

4шт.

1

184342C1

COUPLING

axle drive shaft, includes ref no. 30, Start Serial: 30001

4шт.

27652R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3/8 x 3 dld type 8

1шт.

654049R1

LOCK NUT

3/8-16 pln slt-hex

1шт.

21864R1

COTTER PIN

.114 dia. S type cot.

1шт.

2

63848C1

SHAFT

final drive LH, Serial Range: -30000

1шт.

2

184183C1

SHAFT

final drive LH shaft length is 504.70 mm, Start Serial: 30001

1шт.

3

533848R3

SHAFT

differential

2шт.

4

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

differential brg. cage oil

2шт.

5

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

differential brg.

2шт.

27347R1

BOLT,Hex, 3/8" - 16 x 1 1/8" , Gr 8

3/8 x 1-1/8 PHC P/T type 8

1шт.

6

573976R1

DISC

SHIM, cage, light

1шт.

6

573977R1

SHIM

cage, med

1шт.

6

573978R1

SHIM

cage, heavy

1шт.

7

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

4-5/8 x 4-7/8 x 1/8

2шт.

8

379511R1

SNAP RING,#177, 1.657", Ext

RING, 1.657 ext rect sect ret

4шт.

9

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING, differential cage

2шт.

10

379485R1

RING

differential cage brg. snap

2шт.

11

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

differential cup

2шт.

12

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

BEARING ASSY, cone

2шт.

13

402837R1

CASE, transmission, Serial Range: -7864

1шт.

13

402837R1

CASE, transmission, Serial Range: 7893-7902

1шт.

13

184079C1

CASE

transmission, Serial Range: 7865-7892

1шт.

13

184079C1

CASE

transmission, Start Serial: 7903

1шт.

140798

ELBOW,45 Degree, 3/4" NPT Street

3/4 45 deg street

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

14

573998R2

GASKET

transmission case cover

1шт.

15

195741C1

LID

COVER ASSY, Serial Range: -7864

1шт.

15

195741C1

LID

COVER ASSY, Serial Range: 7893-7902

1шт.

15

184074C1

COVER ASSY

, Serial Range: 7865-7982

1шт.

15

184074C1

COVER ASSY

, Start Serial: 7903

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext pln tooth lock

1шт.

16

320185C1

PLUG

3/4-14 sq-soc magnetic plug

1шт.

17

402838R1

TROUGH

oil

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

106260

WASHER,#12

.250 x .562 x .036 pln

1шт.

18

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

transmission case oil., Serial Range: -7864

1шт.

18

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

transmission case oil., Serial Range: 7893-7902

1шт.

19

20969R1

PLUG

3/4-14 sq-soc auto.

1шт.

20

GEAR, differential driven, order service package 395631R92 ref. no. 21

1шт.

21

395631R92

PACKAGE

differential case & gear, consists of case assy (NSS), gear (NSS), (4) wire (NSS)

1шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

8шт.

395636R2

BOLT,1/2" - 20 x 3.87"

8шт.

22

395636R2

BOLT,1/2" - 20 x 3.87"

differential case

8шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2 pln thick type 8

1шт.

23

360962R2

GEAR

differential bevel, 28T

2шт.

24

360961R1

GEAR

PINION, differential bevel, 15T

4шт.

25

388093R1

U-JOINT SPIDER

SPIDER, differential

1шт.

26

63849C1

SHAFT

final drive RH, Serial Range: -30000

1шт.

26

184184C1

SHAFT

final drive RH, Start Serial: 30001

1шт.

27

196979C1

GAUGE

GAGE, reluctance pickup, Serial Range: -1500

1шт.

27

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF CAD stamped, Start Serial: 1501

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF CAD stamped, Serial Range: 7893-7902

1шт.

27

1301241C1

SENSOR

CONVERTER, reluctance pickup

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 zn stamped, Serial Range: 7865-7892

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 zn stamped, Start Serial: 7903

1шт.

28

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

ADAPTER, 3/4 x 3/8 pipe, Serial Range: 7865-7892

1шт.

28

144041

SEAL,3/4" NPT Male x 3/8" NPT Fem

ADAPTER, 3/4 x 3/8 pipe, Start Serial: 7903

1шт.

29

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

transmission case, Serial Range: 7895-7892

1шт.

29

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

transmission case, Start Serial: 7903

1шт.

30

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub, Serial Range: -30000

4шт.

30

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 lub, Start Serial: 30001

4шт.
