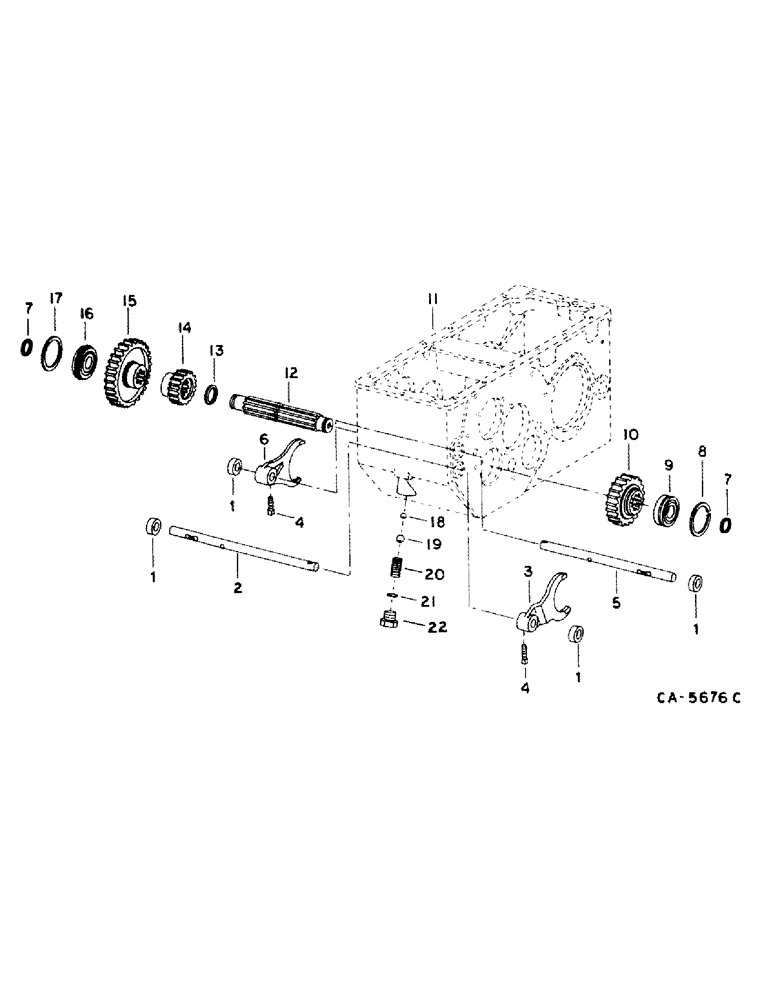

Запчасти Case IH 1440 (07-02) - DRIVE TRAIN, TRANSMISSION, MAIN TRANSMISSION SHAFT Drive Train

1

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

shifter rail oil, replaces 549712R1

1шт.

2

121796C2

RAIL

second gear shifter

1шт.

3

574904R1

FORK

second gear shifter

1шт.

4

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

2шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

5

63893C2

RAIL

first & third gear shift

1шт.

6

395656R1

FORK

first and third gear shifter

1шт.

7

370504R1

RING

transmission main shaft bearing snap

2шт.

8

ST421

SNAP RING,1.65mm Thk, Ext

RING, transmission main shaft right bearing snap

1шт.

9

379475R91

BEARING, ROLLER, CYL,30mm ID x 62.03mm OD x 16mm W

main shaft right

1шт.

10

402841R1

GEAR

second speed drive, 26T

1шт.

11

CASE, transmission, refer to this group under differential shaft

1шт.

12

1276989C3

SHAFT

ASSY, transmission main, replaces 395648R11

1шт.

13

359141R1

RING, SNAP

RING, transmission main shaft bearing snap

1шт.

14

395649R1

GEAR

PINION, first speed drive, 18T

1шт.

15

379495R1

GEAR

transmission input drive, 44T

1шт.

16

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission main shaft left

1шт.

17

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

transmission case sq. seal

1шт.

18

17014R1

BALL

7/16 cr-stl

2шт.

19

17016R1

BALL,1/2" Dia

2шт.

20

64600C1

SPRING

gear shift lock ball

2шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

22

9410358

PLUG

9/16-18 str. thd. O-ring Boss

2шт.
