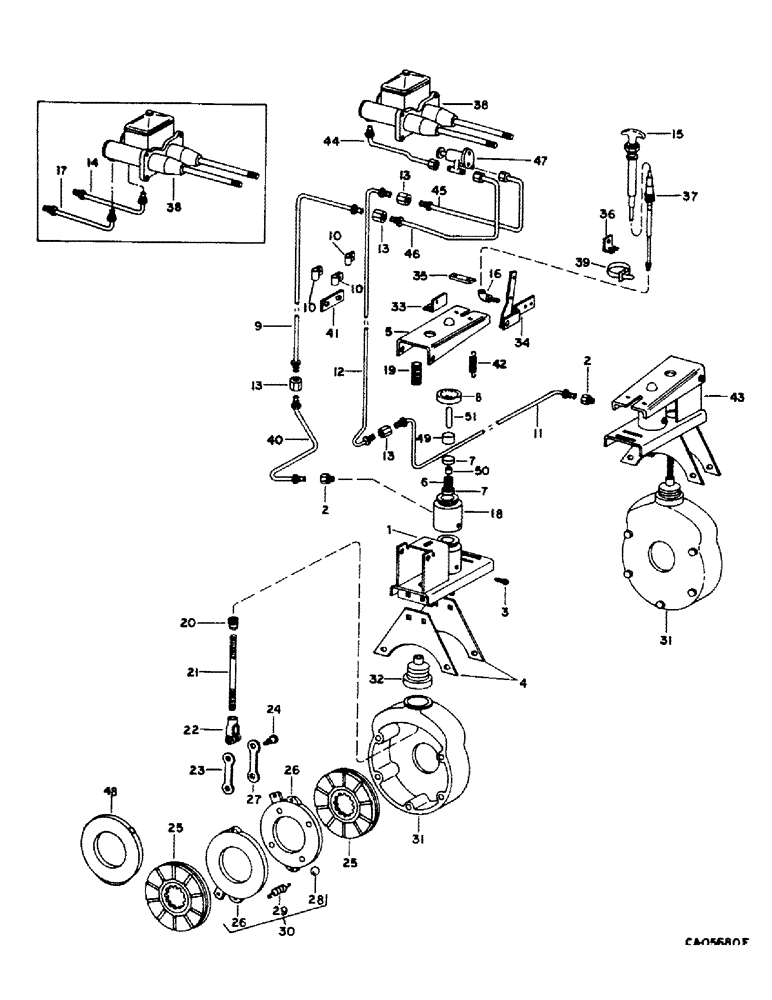

Запчасти Case IH 1440 (04-05) - BRAKE, MASTER AND PARKING BRAKES (5.1) - BRAKES

1

177682C3

BRACKET

ASSY, brake cyl, Serial Range: -20240

1шт.

1

1303496C1

SUPPORT

ASSY, brake cyl LH, Serial Range: 20241-30000

1шт.

1

184317C1

SUPPORT ASSY.

SUPPORT ASSY, brake cylinder LH, Start Serial: 30001

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

442362

PIPE FITTING

CONNECTOR, 1/8-27 inverted flared

2шт.

3

660901R1

VALVE

wheel brake cylinder bleeder

2шт.

4

177688C1

HANGER

brake cyl

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

5

177687C3

LEVER

wheel brake cyl, includes pins

2шт.

28607R1

HEADED PIN,3/8" x 4"

PIN, 3/8 x 4 znd header type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

6

662612R1

SPRING

wheel brake cup

2шт.

7

51906H

CUP

wheel brake cyl piston rubber

4шт.

8

662620R1

COVER

BOOT, wheel brake cylinder

2шт.

9

1301587C1

TUBE

ASSY, LH center brake

1шт.

10

515-2863

CLAMP,1/4", 3/8" Bolt

.25 dia znp bare closed

3шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

11

196870C1

TUBE

ASSY, RH lower brake, Serial Range: -20240

1шт.

11

1301830C1

TUBE

ASSY, RH brake lower, Start Serial: 20241

1шт.

12

187729C1

TUBE

ASSY, RH brake center, Serial Range: -20714

1шт.

12

1301860C1

TUBE

ASSY, RH brake center, Start Serial: 20715

1шт.

13

442336

SUPPORT TUBE

UNION, 1/4 pln inv fld tube

4шт.

14

187728C1

TUBE

ASSY, RH brake upper

1шт.

15

170273C1

HANDLE

brake control cable, Serial Range: -20714

1шт.

16

165288C91

JOINT

1/4-28NF ball

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

187726C1

TUBE

ASSY, LH upper brake upper, Serial Range: -20714

1шт.

18

CYLINDER, wheel brake, not serviced separately order ref. no. 43

1шт.

19

667480R1

SPRING

brake compression, Serial Range: -5500

2шт.

20

354630R1

NUT

brake pull rod

2шт.

21

665995R1

ROD

brake pull, includes nut

2шт.

NLS

NO LONGER SERVICED

7/16-NF type 5

1шт.

22

1321946C1

CLEVIS

brake pull rod, replaces 357043R1

2шт.

Ref. 22, P/N 1321946C1, is a 1/2" thread. P/N 357043R1 is a 7/16" thread.

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1.190 pln clevis

1шт.

23

357113R2

LINK

actuating plain

2шт.

24

354642R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

25

121961C92

CLUTCH

DISC ASSY, middle, Serial Range: -30000

4шт.

25

121961C92

CLUTCH

DISC ASSY, middle, Start Serial: 30001

6шт.

26

DISC, not serviced separately, order disc assy, 366182R93

1шт.

27

357113R2

LINK

actuating plain

2шт.

28

17028R1

BALL,7/8" Dia

10шт.

29

619731C1

SPRING

6шт.

30

366182R93

CLUTCH DISC

DISC ASSY, actuating, includes ref nos. 23, 24, 27, 28 and 29

2шт.

31

574914R2

HOUSING

wheel brake, Serial Range: -30000

2шт.

31

184177C2

HOUSING

wheel brake, Start Serial: 30001

2шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

190909

BOLT,Hex, 7/16" - 14 x 5"

7/16 x 5 pln type 5

1шт.

187462

BOLT,Hex, 7/16" - 14 x 5 1/2", Gr 5

7/16 x 5-1/2 type 5

1шт.

425-107

NUT,7/16"-14, G5

7/16 pln type 5

1шт.

PO10535

WASHER

.531 x 1.205 x .105 pln

1шт.

413-780

BOLT,Hex, 7/16" - 14 x 5", Gr 5

7/16 x 5 type 5 , Course threads

1шт.

32

381699R1

BOOT

wheel brake housing

2шт.

33

177804C2

SUPPORT

parking brake ratchet

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

34

177799C1

SECTOR

ASSY, parking brake

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

35

177802C1

BAR

parking brake ratchet

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

36

184314C1

BRACKET

parking brake cable

1шт.

37

193292C1

BOWDEN CONTROL

CABLE ASSY, parking brake, 79 in.

1шт.

38

CYLINDER ASSY, brake master, refer to this group under master brake control

1шт.

39

702093C1

CABLE TIE

STRAP, parking brake cable tie

4шт.

40

187667C1

TUBE

ASSY, LH lower brake

1шт.

41

196868C1

BAR

SUPPORT, brake tube RH

1шт.

42

168567C1

SPRING

brake lever return, Start Serial: 5501

2шт.

43

177682C3

BRACKET

ASSY, brake cylinder, Serial Range: -20240

1шт.

43

1303690C1

SUPPORT

ASSY, brake cylinder RH., Serial Range: 20241-30000

1шт.

43

184318C1

SUPPORT

ASSY, brake cylinder RH, Start Serial: 30001

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

44

1301858C1

TUBE

ASSY, master brake cyl to equalizer valve, Start Serial: 20715

2шт.

45

1301859C1

TUBE,0.25" OD, 18.8, 3.8" Length

ASSY, RH master brake upper to equalizer valve, Start Serial: 20715

1шт.

46

1301861C1

TUBE

ASSY, LH brake upper to equalizer valve, Start Serial: 20715

1шт.

47

VALVE ASSY, equalizer, refer to this group under master brake control

1шт.

48

188878C1

DISC

intermediate, Start Serial: 30001

2шт.

49

662616R1

PISTON

brake cylinder

2шт.

50

184304C1

SPACER

brake piston

2шт.

51

662618R1

PLUNGER

brake piston

2шт.
