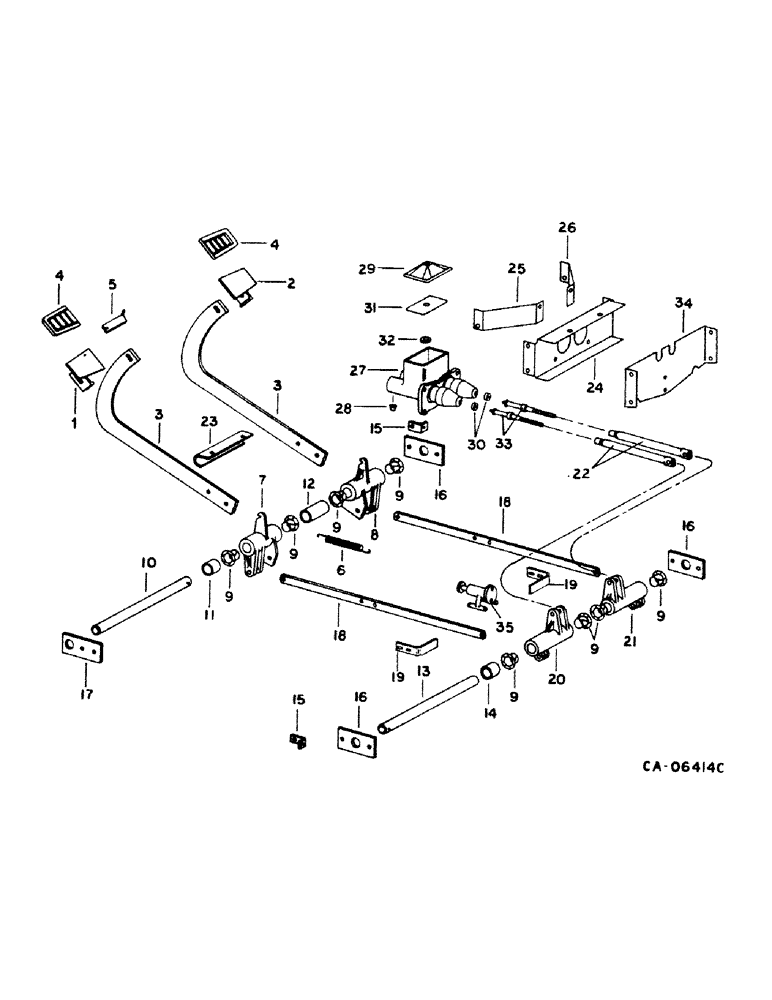

Запчасти Case IH 1440 (04-03) - BRAKE, MASTER BRAKE CONTROLS, S/N 20848 AND ABOVE (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
163426C1
PEDAL
brake LH
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
2
163427C1
PEDAL
brake RH
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
3
184166C2
SUPPORT ASSY.
SUPPORT, brake
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
4
863426R1
PAD
brake pedal
2шт.
5
614251R1
BAR
brake locking
1шт.
19938R1
PIN,1/8" x 7/8", Coiled
1шт.
6
184327C1
SPRING
brake pedal return, replaces 398763C2
1шт.
7
1302154C2
HUB
brake pedal LH
1шт.
8
1302155C2
HUB
brake pedal RH
1шт.
9
277523R1
BUSHING
brake pedal pivot
8шт.
10
187580C1
SHAFT
brake pedal, replaces 1302146C1
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
1шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
11
152261C1
SPACER,1 1/4" Tube x 1 7/8"
1-1/4 x .625 brake shaft LH
1шт.
12
151478C1
SPACER,1 1/4" Tube x 1 5/8"
brake pivot shaft inner
1шт.
13
187580C1
SHAFT
brake rear pivot
1шт.
591715R1
WASHER
1.031 x 1.500 x .054
1шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
14
654385R1
SPACER,26.21mm ID x 31.75mm OD x 19.05mm L
brake rear pivot shaft LH
1шт.
15
187628C1
ANGLE
brake pivot shaft retainer
2шт.
16
165901C1
BAR
brake pivot shaft support
3шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
17
1302147C1
BAR
brake pivot shaft support
1шт.
18
192973C2
ROD
BAR, brake pedal, replaces 188889C1 by also ordering adjusting angle, 184326C1
1шт.
22320R1
CLEVIS PIN,3/8" x 1.781"
PIN, 3/8 x 1.781 clevis
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
19
184326C1
ANGLE
equalizer arm adjusting
2шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/4 crg type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
20
188891C2
HUB
brake link LH
1шт.
21
188892C2
HUB
brake link RH
1шт.
22
1302145C2
ROD
brake cylinder
2шт.
22320R1
CLEVIS PIN,3/8" x 1.781"
PIN, 3/8 x 1.781 clevis
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
23
195509C1
SUPPORT
brake lever
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
24
195515C2
SUPPORT ASSY.
SUPPORT, brake master cyl
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
25
1302150C1
SUPPORT
brake master cyl LH
1шт.
26
1302149C1
SUPPORT
brake master cyl RH
1шт.
27
222834C91
MASTER CYLINDER,124.46mm Stroke
CYLINDER ASSY, brake master, includes ref nos. 29 thru 33
1шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
3/8 x 1-1/4 hex-hd lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
28
222846C1
INSERT
seat
2шт.
29
222843C1
CAP
master cyl
1шт.
180050
BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5
1/4 x 2-3/4 type 5
1шт.
30
222842C1
WASHER
stop
1шт.
31
222844C1
GASKET
cap
1шт.
32
222845C1
WASHER
internal
1шт.
33
222841C1
ROD
master cyl push
2шт.
124925
JAM NUT,Jam, 3/8"-24, G5
1шт.
34
1302168C2
SUPPORT
equalizer valve adj
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
35
1301839C91
VALVE
ASSY, equalizer
1шт.
NLS
NO LONGER SERVICED
SCREW, 1/4 x 1/2 phc r/hds mach
1шт.
222835C91
KIT
master cyl repair, consists of (2) piston (NSS), (2) cup (NSS), (2) spring (NSS), (2) ring (NSS), (2) boot (NSS)
1шт.
