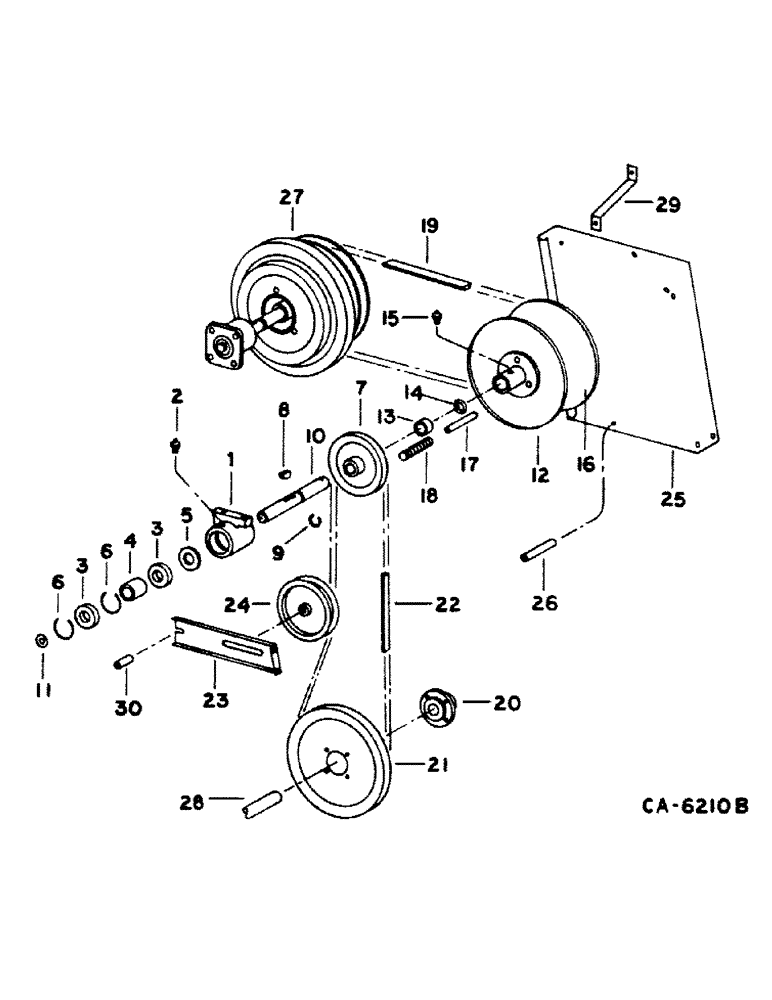

Запчасти Case IH 1440 (24-08) - CLEANING FAN AND DRIVE, SLOW SPEED FAN DRIVE (15) - CLEANING

1

185263C1

HUB

slow speed jackshaft

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

22264R1

WASHER

.406 x 1.000 x .164

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

1шт.

3

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

2шт.

4

152926C1

SPACER

1-5/16 ID x 1-5/8 OD x 1.88

1шт.

5

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER, fan jackshaft

1шт.

6

360936R1

RING

fan hub bearing snap

4шт.

7

181360C1

PULLEY ASSY.

PULLEY ASSY, slow speed fan jackshaft 5 in. OD

1шт.

8

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

9

609053R1

SNAP RING,#125, Ext

Ring, Snap, , slow speed fan jackshaft #125, Ext

1шт.

10

181358C1

SHAFT HOUSING

SHAFT, slow speed fan jackshaft, Serial Range: -21621

1шт.

10

1309040C1

SHAFT

slow speed fan jackshaft, Start Serial: 21622

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flg w/scotch grip

1шт.

11

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, fan jackshaft bearing retainer

1шт.

12

185023C93

PULLEY

ASSY, fan driven adjustable, includes Ref. nos. 13 & 14

1шт.

13

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

fan driven adjustable

2шт.

14

537545R92

SEAL

lub, used with pulley 185023C91 and 185023C92 only

1шт.

14

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 class 5, used with pulley 185023C93

1шт.

15

87414

LUBE NIPPLE,1/4" - 28

FITTING, lub

1шт.

16

185020C2

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, Serial Range: -21621

1шт.

277232R1

BOLT,Hex, 3/8" - 18 x 2 3/4", Gr 8

3/8 x 2-3/4 phc type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

1шт.

16

1309014C1

PULLEY ASSY.

PULLEY ASSY, fan driven fixed, 11.24 in. OD, Start Serial: 21622

1шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1/2 x 3 phc type 8

1шт.

9412230

LOCK NUT

1/2 phc p/t lock type 8

1шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.062 x .188 phc hdn

1шт.

17

185019C2

SLEEVE,8.18mm ID x 14.27mm OD x 69.85mm L

fan drive spring

3шт.

18

1302540C1

SPRING

fan drive outer pulley

3шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

5/16 x 3-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

19

181359C1

BELT,1.25" W x 66.54" L

V-BELT , Fan jackshaft, OC 1.25" W x 66.54" L

1шт.

20

185271C1

HUB

fan pulley, Serial Range: -10000

1шт.

20

182650C1

HUB

fan pulley, Start Serial: 10001

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

564569R11

PULLEY ASSY.

PULLEY ASSY, fan hub, 12.68 in. OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

610521R1

V-BELT

Slow speed fan jackshaft, 76 in. OC

1шт.

23

185270C1

SUPPORT

idler

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

24

564745R91

PULLEY

idler, 5.5 in. OD

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

.656 x 1.250 x .090 sq/h

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

25

181372C1

SHIELD

slow speed fan drive

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

PO22778

SPACER,1/4" Pipe x 2"

1/4 x 2 std pipe

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

27

DRIVE ASSY, refer to this group under fan drive

1шт.

28

SHAFT, cleaning fan, refer to this group under fan & shields

1шт.

29

Not used this application

1шт.

30

612233R1

SPACER,5/8" Tube x 1 1/8"

.407 x .625 x 1.18

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.
