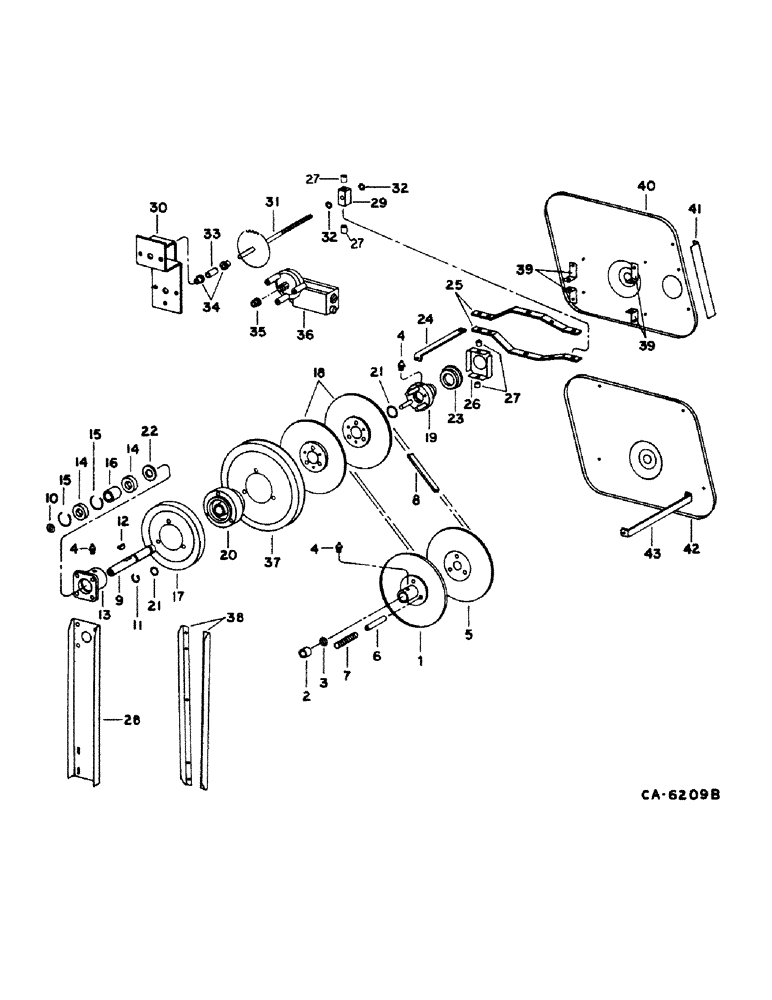

Запчасти Case IH 1440 (24-06) - CLEANING FAN AND DRIVE, FAN DRIVE, S/N 10001 AND ABOVE (15) - CLEANING
№
Артикул
Название
Примечание
Количество
1
185023C93
PULLEY
ASSY, fan driven adj, 11.24 in. OD, includes Ref. nos. 2 & 3
1шт.
2
629232R1
BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L
driven adj pulley
1шт.
3
537545R92
SEAL
driven adj pulley, used with pulley 185023C91 and 185023C92 only
1шт.
3
252483R1
O-RING,-218, 70 Duro, 1.234" ID x .139" Thk
1-1/4 class 5, used with pulley 185023C93
1шт.
5
185020C2
PULLEY ASSY.
PULLEY ASSY, fan driven fixed, 11.24 in. OD, Serial Range: -21621
1шт.
897520R1
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8
3/8 x 2-3/4 type 8
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 phc p/t lock type 8
1шт.
25544R1
WASHER,13/32" x 13/16" x .134", HDN
.406 x .812 x .134 phc hdn
1шт.
5
1309014C1
PULLEY ASSY.
PULLEY ASSY, fan driven fixed, 11/24 in. OD, Start Serial: 21622
1шт.
275635R1
BOLT,Hex, 1/2" - 13 x 3", Gr 8
1/2 x 3 phc type 8
1шт.
9412230
LOCK NUT
1/2 phc p/t lock type 8
1шт.
25546R1
WASHER,17/32" x 1 1/16" x .188", HDN
.531 x 1.062 x .188 phc hdn
1шт.
6
185019C2
SLEEVE,8.18mm ID x 14.27mm OD x 69.85mm L
fan drive spring
3шт.
7
1302540C1
SPRING
fan drive outer pulley
3шт.
187147
BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5
5/16 x 3-1/2 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 CAD p/t lock type 5
1шт.
20893R1
WASHER
.344 x 1.000 x .105
1шт.
8
195396C2
BELT,31.80 mm W x 1881.58 mm L
V-BELT , Fan drive, OD 31.80 mm W x 1881.58 mm L
1шт.
9
194853C3
SHAFT
elevator and fan drive
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
1шт.
668569R1
WASHER
.344 x 1.500 x .105
1шт.
10
185129C1
WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk
WASHER, fan bearing retainer
1шт.
1302143C1
FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"
SCREW, 1/2 x 1 hex flange w/scotch grip
1шт.
11
609053R1
SNAP RING,#125, Ext
Ring, Snap, , inner drive bearing #125, Ext
1шт.
12
124554
O-RING
elevator and fan drive shaft
1шт.
13
192418C1
HUB
elevator and fan drive
1шт.
14
1302725C91
BALL BEARING,31.75mm ID x 62mm OD x 18mm W
BEARING, elevator and fan drive
2шт.
15
360936R1
RING
fan drive shaft snap
2шт.
16
152926C1
SPACER
1-5/16 ID x 1-5/8 OD x 1.88
1шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 x 1-1/2 type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
17
PULLEY ASSY, fan & elevator jackshaft driven, 13.0 in. OD, refer to group 20 under RH drive
1шт.
18
183288C1
PULLEY
fan driven, 11.25 in. OD
2шт.
541313R1
BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"
SCREW, 3/8 x 3/4 hex-hd flange
1шт.
19
185286C91
HUB
ASSY, fan driver adj pulley
1шт.
25095R1
SPLIT PIN/SAFETY PIN
PIN, 1/2 x 3.500 pln hdn-dowel
1шт.
20
183333C1
HUB
fan driver fixed pulley
1шт.
21
252483R1
O-RING,-218, 70 Duro, 1.234" ID x .139" Thk
1-1/4 ID x 1-1/2 OD 1/8
1шт.
22
183274C2
WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk
WASHER, fan bearing retainer
1шт.
23
185094C91
BALL BEARING
BEARING, fan jackshaft
1шт.
24
186283C1
SUPPORT
fan drive control
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
21964R1
HEADED PIN,3/8" x 1 1/2"
PIN, 3/8 x 1.500 hd type 1
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
21752R1
WASHER
.406 x 1.500 x .054
1шт.
25
194850C2
SUPPORT
fan control
2шт.
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
5/16 x 2 type 5
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
26
194852C2
SUPPORT
fan driven
1шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/4 crg type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
27
27825R1
SPACER,8.5mm ID x 12.7mm OD x 12.7mm L
4шт.
28
188128C1
CHANNEL
fan hub
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
29
181206C1
BLOCK
fan speed control shaft
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
30
181199C1
SUPPORT ASSY.
SUPPORT ASSY, speed control motor
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
31
181202C1
SHAFT ASSY.
STUD ASSY, adjusting gear shaft
1шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
22258R1
WASHER
.656 x 1.000 x .027
1шт.
32
1302054C1
WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk
fan control thrust
2шт.
33
181205C1
SPACER
adjusting gear stud
1шт.
34
55826C1
BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L
fan speed control stud
2шт.
35
55825C1
BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L
fan speed control motor
1шт.
36
126573C1
MOTOR, ELECTRIC
MOTOR ASSY, fan variable speed
1шт.
22264R1
WASHER
.406 x 1.000 x .164
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
37
PULLEY ASSY, cleaning unit drive, refer to group 20 under RH drive
1шт.
38
Not used this application
1шт.
39
194756C2
ANGLE
fan drive pulley shield
4шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16 x 3/4 znp hex-hd flange lock
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
40
194758C2
SUPPORT
fan jackshaft
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
41
186089C1
SHIELD
elevator drive idler
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
42
194759C3
GUARD
SHIELD, fan drive
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
43
194760C1
SUPPORT
lower shield
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lower
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
Выбрано товаров: 98
