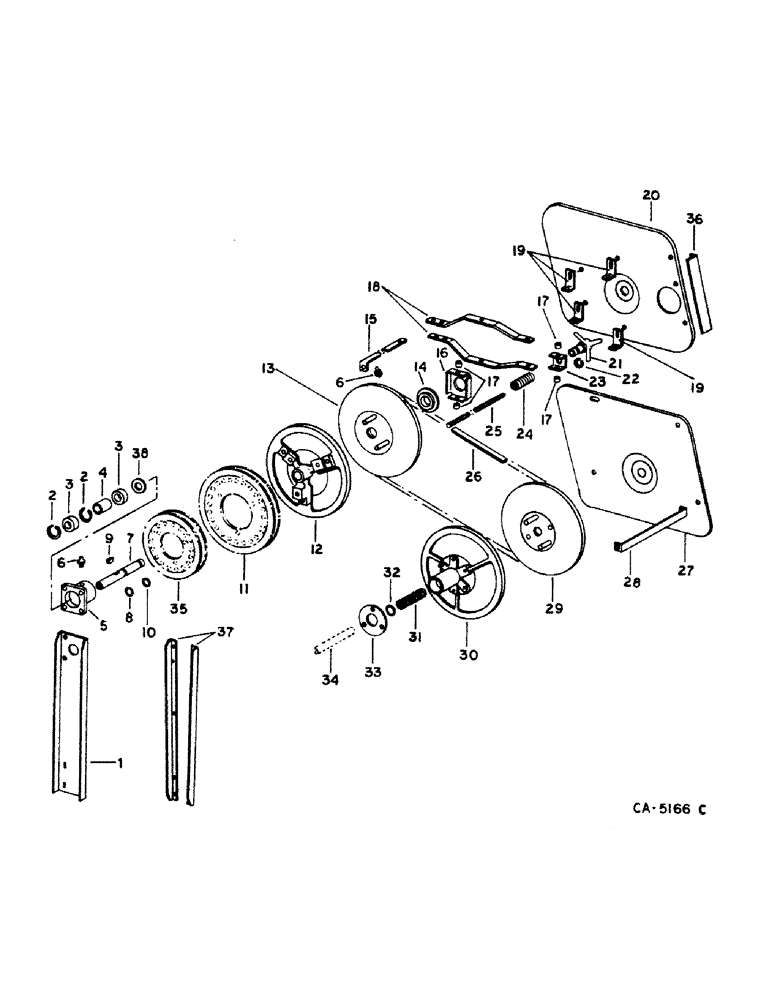

Запчасти Case IH 1440 (24-04) - CLEANING FAN AND DRIVE, FAN DRIVE, S/N 10000 AND BELOW (15) - CLEANING

1

188128C1

CHANNEL

fan hub

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

360936R1

RING

fan drive shaft snap

2шт.

3

183019C91

WASHER

BEARING, elevator and fan drive

2шт.

4

152926C1

SPACER

1-5/16 ID x 1-5/8 OD x 1.88

1шт.

5

192418C1

HUB

elevator and fan drive

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lub

1шт.

7

194853C3

SHAFT

elevator and fan drive

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER, .53 x 1.5 x .18

1шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

9

124554

O-RING

5/16 x 1 Woodruff

1шт.

10

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 ID x 1-1/2 OD x 1/8

1шт.

11

PULLEY ASSY, cleaning unit drive, refer to group 20 under RH drive

1шт.

12

194660C2

PULLEY

fan driver fixed, 11.00 in. OD

1шт.

13

194854C92

PULLEY

ASSY, fan driver adj, 11.00 in. OD

1шт.

23092R1

DOWEL,1/2" x 2 1/2"

PIN, 1/2 x 2.500 pln hdn dowel

1шт.

14

168215C91

BALL BEARING

BEARING, fan jackshaft

1шт.

15

186283C1

SUPPORT

fan drive control

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1.500 HD type 1

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

16

194852C1

SUPPORT

fan driver

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

17

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

4шт.

18

194850C1

SUPPORT

fan control

2шт.

120376

NUT,5/16"-18, G5

1шт.

180087

SPRING

5/16 x 2 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

19

194756C2

ANGLE

fan drive pulley shield

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

194758C2

SUPPORT

fan jackshaft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

21

169705C1

HANDLE

fan speed control

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

22

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan speed control handle #100, Ext

1шт.

23

194848C1

YOKE

fan handle

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

24

12209D

SPRING

fan speed control handle

1шт.

25

194849C1

ROD

fan speed control

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

195396C1

BELT

fan drive 74 in. OC

1шт.

27

194759C3

GUARD

SHIELD, fan drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

28

194760C1

SUPPORT

lower shield

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

29

192989C93

PULLEY

ASSY, fan driven fixed, 11.24 in. OD

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

3/8 x 2-1/2 phc type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

1шт.

25534R1

WASHER

.406 x .812 x .065 phc hdn

1шт.

23092R1

DOWEL,1/2" x 2 1/2"

PIN, 1/2 x 2.500 pln hdn dowel

1шт.

30

192294C2

PULLEY

HALF, fan driven adjustable

1шт.

31

2833

SPRING

fan drive pulley

1шт.

Ref. 31 Springs do not fit into the Ref. 30 as shown in the illustration. They fit over the bolts listed under item #33.

1шт.

32

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 OD x 1/8

1шт.

33

192299C1

RETAINER

fan drive pulley

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16 x 4-1/2 type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

34

SHAFT, cleaning fan, refer to this group under cleaning fan & shields

1шт.

35

PULLEY ASSY, elevator jackshaft drive, refer to group 20 under belt drive RH

1шт.

36

186089C1

SHIELD

elevator drive idler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

37

Not used in this application

1шт.

38

183274C1

WASHER

fan bearing retainer

1шт.
