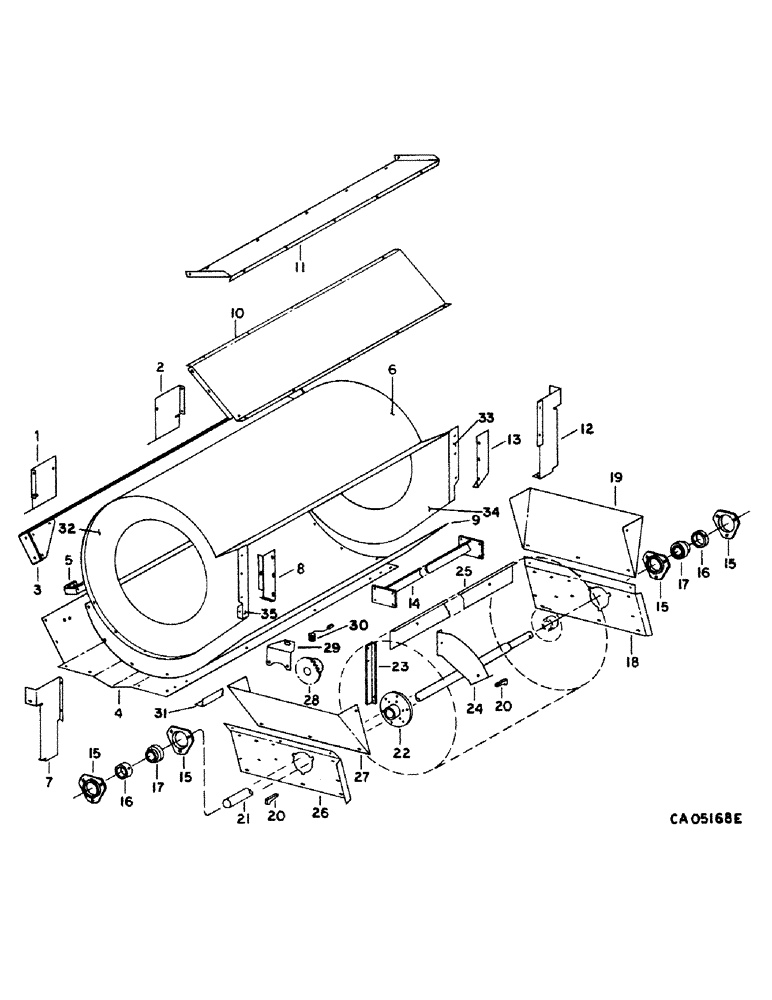

Запчасти Case IH 1440 (24-01) - CLEANING FAN AND DRIVE, CLEANING FAN & SHIELDS (15) - CLEANING

1

188112C2

SUPPORT

fan intake front LH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

2

188113C2

SUPPORT

fan intake front RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

3

194712C1

SUPPORT

ASSY, fan bottom shield

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

4

194717C1

SUPPORT

fan bottom

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

191706C1

SUPPORT

fan front support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

6

SHEET, fan housing top, note, replaces 185432C2 (NSS)

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

7

188114C2

SUPPORT

fan intake rear LH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

191709C1

SUPPORT, fan side sheet LH, Serial Range: -2210

1шт.

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT, 1/4 high torque

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

8

186715C1

SUPPORT

fan side LH, Start Serial: 2211

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flg lock

1шт.

9

191702C1

SUPPORT

fan housing bottom

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

10

192066C1

SUPPORT ASSY.

SUPPORT, pan to auger bed, Serial Range: -2210

1шт.

10

185043C1

SUPPORT

pan to auger bed, Start Serial: 2211

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

192064C1

SUPPORT ASSY.

SUPPORT, Chaffer front seal, Serial Range: -2210

1шт.

11

185042C1

SUPPORT

pan to auger bed, Start Serial: 2211

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

188115C2

SUPPORT

fan intake rear RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

191710C1

SUPPORT ASSY.

SUPPORT, fan side sheet RH, Serial Range: -2210

1шт.

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT, 1/4 high torque

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

13

186716C1

SUPPORT

fan side sheet RH, Start Serial: 2211

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

14

191703C3

SUPPORT ASSY.

SUPPORT ASSY, fan rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE, fan shaft bearing

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

16

455104R11

COLLAR

ASSY, fan bearing locking

2шт.

17

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, fan, Serial Range: -5500

2шт.

17

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY, fan, Start Serial: 5501

1шт.

18

194396C1

SUPPORT

fan shaft bearing RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

19

194398C2

SUPPORT

fan intake RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

20

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib, Serial Range: -10000

2шт.

20

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib, Start Serial: 10001

2шт.

21

192234C1

SHAFT

cleaning fan, Serial Range: -1500

1шт.

21

183445C2

SHAFT

cleaning fan, Start Serial: 1501

1шт.

21

185139C2

SHAFT

cleaning fan, Serial Range: 10001-21621

1шт.

21

1309016C1

SHAFT

cleaning fan

1шт.

22

188268C1

HUB

ASSY, fan, Serial Range: -10000

2шт.

22

185480C1

HUB ASSY.

HUB ASSY, fan, Start Serial: 10001

2шт.

23

188270C1

ANGLE

fan, Serial Range: -10000

12шт.

23

185483C1

BAR

fan, Start Serial: 10001

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

24

169706C1

BRACE

cleaning fan blade, Serial Range: -10000

12шт.

24

185484C1

SUPPORT

cleaning fan blace, Start Serial: 10001

12шт.

25

169707C1

BLADE

cleaning fan, Serial Range: -10000

6шт.

25

182928C1

BLADE

cleaning fan, Start Serial: 10001

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

26

194395C1

SUPPORT

fan shaft bearing LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

27

194397C2

BRACKET

SUPPORT, fan intake LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

28

198526C1

SPROCKET ASSY.

SPROCKET, fan speed tach

1шт.

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 c/pt znp hdl/s set

1шт.

29

193222C2

SUPPORT

fan speed tach, Serial Range: -20000

1шт.

29

1301240C2

SUPPORT

fan speed tach, Start Serial: 20001

1шт.

Spacer 1308813C1 not required.

1шт.

30

196979C1

GAUGE

GAGE, reluctance pickup, Serial Range: -1500

1шт.

30

187855C1

ELECTRICAL GAUGE

GAGE, reluctance pickup, Serial Range: 1501-20000

1шт.

145507

NUT,Stamped, 7/8"-14

7/8-NF cad stamped

1шт.

30

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Serial Range: -20001

1шт.

107827

NUT,Stamped, 3/4"-16

3/14 zn stamped

1шт.

31

Not used this application

1шт.

32

SECTION, fan housing side, LH, note (NSS)

1шт.

33

186714C2

EXTENSION

fan sheet filler, RH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

34

SECTION, fan housing side, RH, note (NSS)

1шт.

35

186713C2

KIT

EXTENSION, fan sheet filler, LH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

Furnish fan housing package 1324004C91

1шт.

1324001C91

KIT

PACKAGE, fan housing, consists of (NSS) section, fan housing

1шт.

LH, (NSS) section, fan housing, RH, (NSS) sheet, top

1шт.

186713C2

KIT

EXTENSION, filler, LH

1шт.

186714C2

EXTENSION

filler, RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

INSTRUCTIONS (NSS)

1шт.
