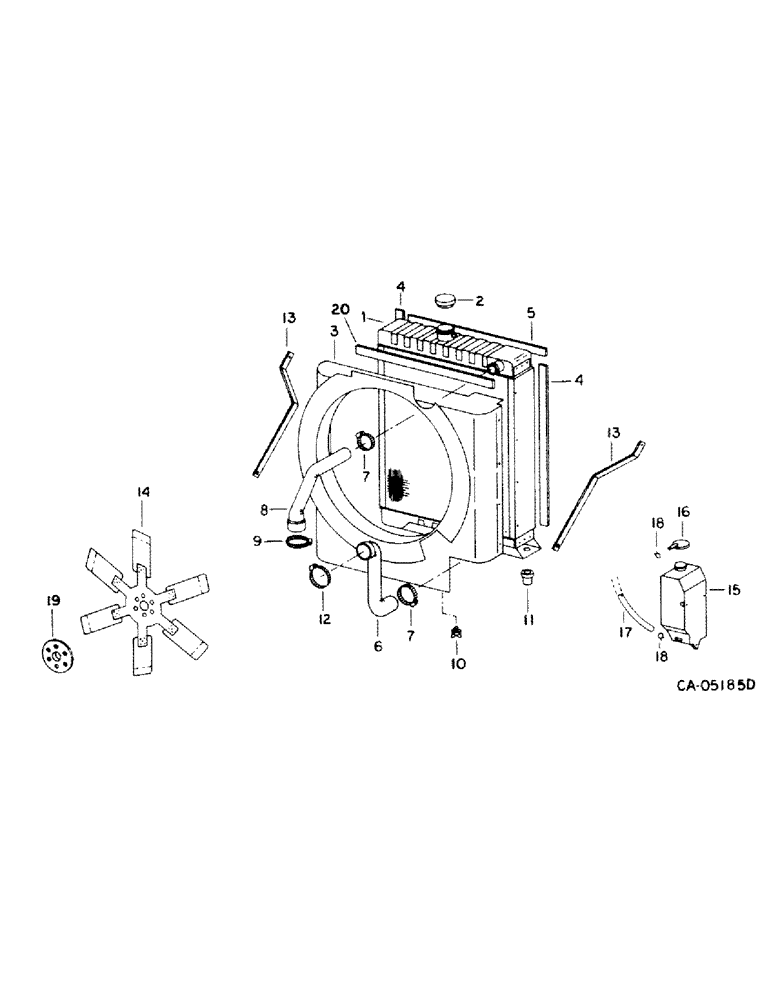

Запчасти Case IH 1440 (06-05) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

55650C3

RADIATOR

1шт.

2

121951C1

CAP

radiator pressure or

1шт.

2

130704C1

CAP

radiator pressure

1шт.

3

400134R2

SHROUD

fan

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

20609R1

WASHER

.469 x 1.750 x .105

1шт.

4

STRIP, radiator side, furnish 35.4 in. from 4 ft. length marked 198581C1

2шт.

5

STRIP, radiator top and bottom, furnish 34.5 in. from 4 ft. length marked 198581C1

1шт.

6

548114R1

RADIATOR HOSE,66.00 mm ID x 584.20 mm, SAE 20R4, CLASS R, GRADE 1A

Outlet 66.00 mm ID x 584.20 mm, SAE 20R4, CLASS R, GRADE 1A

1шт.

7

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 type F hose

2шт.

8

548216R1

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

Inlet 50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

1шт.

9

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, no. 36 type F hose

1шт.

10

86982771

VALVE

COCK, radiator drain

1шт.

11

400159R1

BUMPER

MOUNT, radiator

2шт.

18699R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/2", Gr 2

BOLT, 7/16 x 2-1/2 crg type 1

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD P/T lock type 5

1шт.

23043R1

WASHER

.469 x 2.000 x .105

1шт.

12

122323R91

CLAMP,#52, 2.81/3.75 Type F Worm

no. 52 type F hose

1шт.

13

121984C1

BRACE

radiator

2шт.

175997

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

SCREW, 5/16 x 1-1/4 h/hd tap

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

121789C1

FAN

blade, 658.1mm dia.

1шт.

Ref.14, P/N 121789c1, 25.9".

1шт.

14

1265628C1

FAN

ASSY, blade, 647.7mm dia.

1шт.

Ref. 14 P/N 1265628c1, 25.5"

1шт.

20649R1

BOLT (SPREADER),Hex, 3/8" - 16 x 2 1/4", Gr 8

BOLT, 3/8 x 2-1/4 pln type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

437703C1

TANK

reservoir

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

16

437702C1

CAP

reservoir

1шт.

17

121983C1

RADIATOR HOSE,0.31" ID x 43.00", ASTM D 2000

- Reservoir to Radiator and Overflow 0.31" ID x 43.00", ASTM D 2000

2шт.

18

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, hose

3шт.

19

(Not used in this application)

1шт.

20

STRIP, radiator baffle, furnish 34.5 in. from 4 ft. length marked 1319664C1

2шт.
