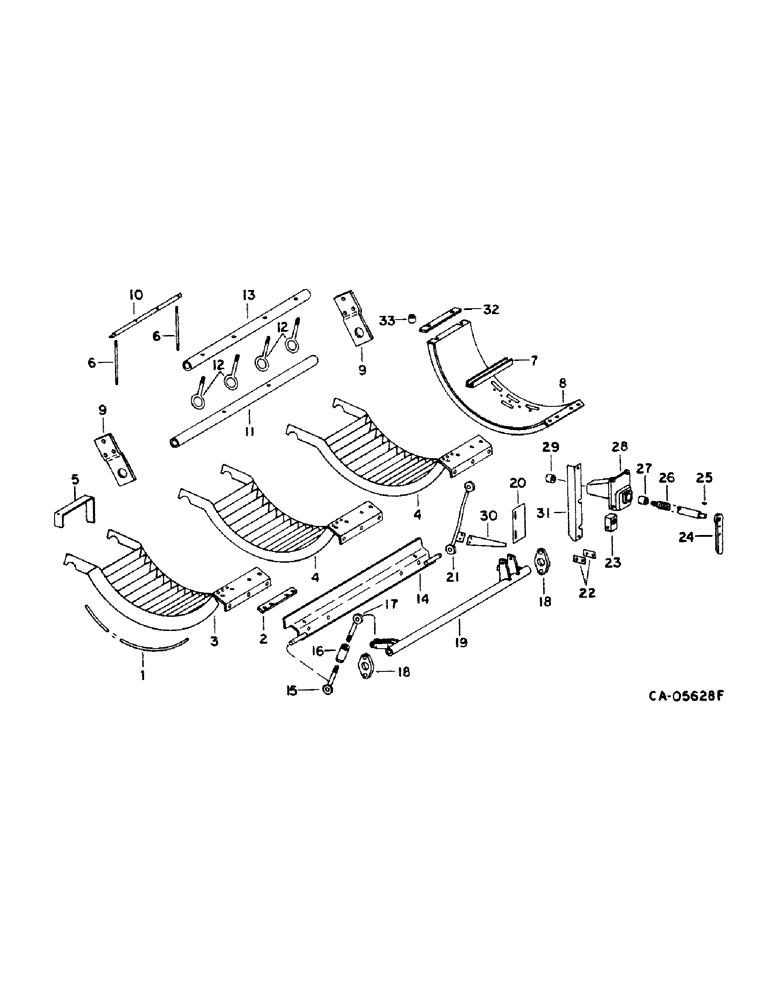

Запчасти Case IH 1440 (21-20) - THRESHING ROTOR AND CONCAVES, CONCAVE AND CONTROL (14) - THRESHING
№
Артикул
Название
Примечание
Количество
1
195311C1
ROD
concave, 3/16 in. dia x 29.06 in. lg., Serial Range: -7665
90шт.
1
1302602C2
ROD
concave, 3/16 in. dia., x 28.81 in. lg., Start Serial: 7666
90шт.
1
191479C1
ROD
concave, 1/4 in. dia x 29.10 in. lg., Serial Range: -7665
42шт.
1
1302601C2
STEM
ROD, concave, 1/4 in. dia. x 28.85 in. lg., Start Serial: 7666
42шт.
2
193859C1
PLATE
BAR, concave wire retainer
6шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
1319406C1
SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl
3/8 x 1 t/hd serrated
1шт.
3
1302608C5
CONCAVE
ASSY, front, small, replaces 195309C3, 1309391C1 and 1309208C2
1шт.
3
1302606C5
CONCAVE
ASSY, front, large, replaces 193780C3, 1309390C1 and 1309209C2, includes ref. no. 1, 1302601C1
1шт.
4
1302609C4
CONCAVE
ASSY, no. 2 and 3, small, replaces 195310C3, 1309395C1 and 1309210C2
2шт.
4
1302607C4
CONCAVE
ASSY, no. 2 and 3, large, replaces 193781C3, 1309394C1 and 1309211C2, includes ref. no. 1, 1301602C2
2шт.
5
1309424C1
CHANNEL
concave filler, for 1/4 in. dia. rod, for corn
1шт.
5
1309425C1
CHANNEL
concave filler, for 3/16 in. dia. rod
1шт.
6
186776C1
ROD
BOLT, concave truss rod, Start Serial: 1501
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
7
191536C1
CHANNEL
grate adjusting
21шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
63шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
63шт.
8
191538C3
GRATE ASSY.
GRATE ASSY, slotted
3шт.
8
1302562C1
CONCAVE
GRATE ASSY, keystock, replaces 182737C4
3шт.
8
1319750C1
GRATE
ASSY, smooth, used for sunflower harvesting
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
1302788C1
FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1 1/4", Gr 8
Hex Flg, 3/8"-16 x 1 1/4 inch, Serr
1шт.
9
195253C1
SUPPORT
concave anchor
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
1302142C1
BOLT,Flng, 1/2" - 13 x 1-1/4"
BOLT, 1/2 x 1-1/4 type 5 w/scotch grip
1шт.
1302787C1
FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8
BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8
1шт.
10
186399C1
SUPPORT
concave truss rod, Start Serial: 1501
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
11
195255C1
PIPE
concave control, Serial Range: -1500
1шт.
11
186392C1
PIPE
concave control, Start Serial: 1501
1шт.
1302787C1
FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8
BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8
1шт.
12
195254C1
BOLT,1/2" - 13 x 6"
concave clamp eye
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
13
193790C2
TUBE
PIPE, concave pipe
1шт.
14
191401C1
SUPPORT ASSY.
SUPPORT ASSY, concave anchor
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
607895R1
WASHER
.531 x 1.000 x .105
1шт.
1302787C1
FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1", Gr 8
BOLT, Hex Flg, 3/8"-16 x 1", Serr, G8
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
15
191411C1
BOLT,1/2" - 13 x 147mm, RH Thd
concave adj RH thread
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2 jam type 5
1шт.
16
M383D
TURNBUCKLE
concave adjusting
1шт.
17
191410C1
BOLT,1/2" - 13 x 147mm, LH Thd
concave adj LH thread
1шт.
18
1319251C2
SUPPORT
HUB, concave control shaft, replaces 192890C1
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2 type 5
1шт.
19
191423C1
LEVER ASSY.
LEVER ASSY, concave control
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
21939R1
HEADED PIN,1/2" x 1 7/16"
PIN, 1/2 x 1.438 hd type 1
1шт.
20
188168C1
PLATE
BAR, concave indicator
1шт.
22844R1
SELF-TAP SCREW,Hex Hd, #10 x 1/2"
SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"
1шт.
21
188345C2
ROD ASSY.
ROD ASSY, concave control
1шт.
22
192888C1
PLATE
BAR, concave control upper
2шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
22899R1
HEADED PIN,1/2" x 2 3/8"
PIN, HEADED, 1/2" x 2 3/8"
1шт.
21814R1
HEADED PIN,1/2" x 3"
PIN, 1/2 x 3 hd type 1
1шт.
23
192886C1
NUT
concave control adjusting
1шт.
24
170282C1
HANDLE
concave control ratchet
1шт.
25
124549
WOODRUFF KEY,#9, 3/16" x 3/4", HT
Replaces 106751 #9, 3/16" x 3/4", HT
1шт.
26
192885C1
SHAFT
concave adjusting
1шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5 5/8"-11, GB
1шт.
576485R1
LOCK PIN,1/4" x 1 1/4", Slotted
1шт.
25537R1
WASHER,21/32" x 1 5/16" x .095", HDN
.656 x 1.312 x .095 PHC hdn
1шт.
27
551068R1
BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L
concave control housing
1шт.
28
192883C93
SUPPORT
HOUSING ASSY, concave control, includes ref. nos. 27 and 29
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
179464C1
SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"
3/8 x 1-1/4 slt-truss-hd
1шт.
29
568921R1
BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L
concave control housing
1шт.
30
194091C1
BAR
concave indicator
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4-20 x 1/2 slt-truss-hd
1шт.
31
182577C1
ANGLE
housing support, Start Serial: 10001
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
32
186784C2
BAR
grate hanger
3шт.
33
600179R1
SPACER,13.9mm ID x 21.34mm OD x 14.3mm L
Grate and cage bar 1/2" X-Strng Pipe x 9/16"
6шт.
236484R1
BOLT,Hex, 1/2" - 13 x 2", Gr 8
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 CAD P/T lock type 8
1шт.
25710R1
WASHER
.531 x 1.062 x .134 hdn
1шт.
1300673C91
PACKAGE
concave filler, for 3/16 in. dia. rod, parts accessories, package of 6 of ref no. 5
1шт.
1300716C91
CHANNEL
PACKAGE, concave filler, for 1/4 in. dia. rod, parts accessories, package of 6 of ref. no. 5
1шт.
1300211C91
SPACER
PACKAGE, concave front bar, S/N 7666 and below, consists of (3) bar (NSS), instructions (NSS)
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
179464C1
SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"
3/8 x 1-1/4 slt-truss-hd
1шт.
20803R1
WASHER
.406 x 1.000 x .105
1шт.
Выбрано товаров: 87
