Запчасти Case IH 1440 (21-17) - THRESHING ROTOR AND CONCAVES, CAGE (14) - THRESHING

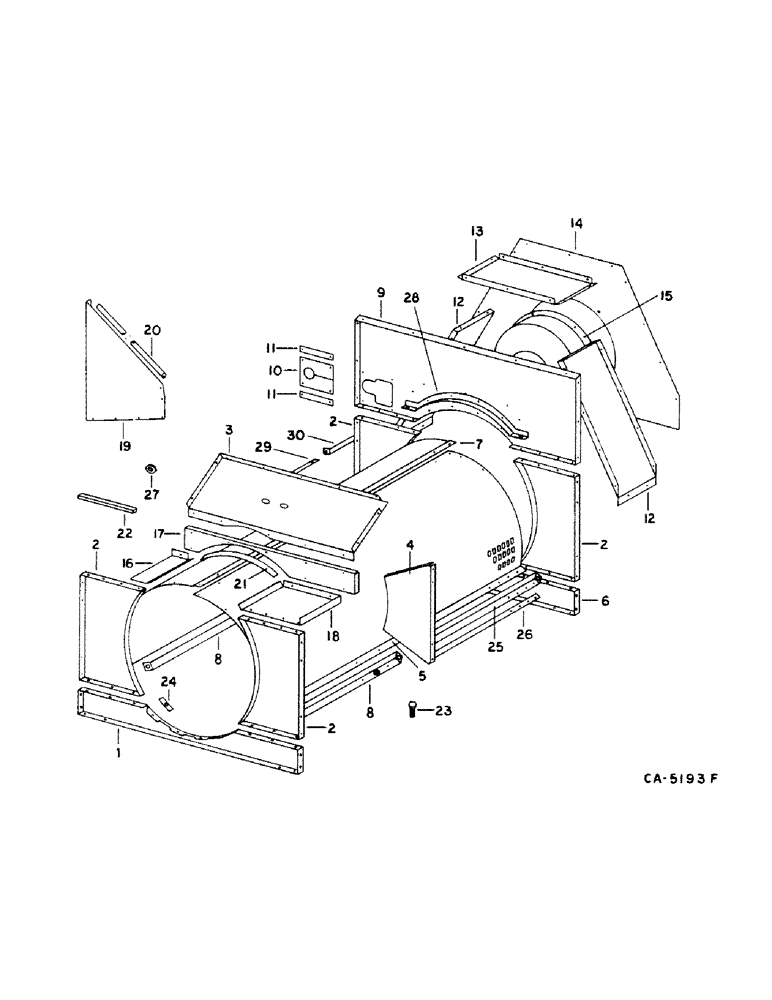

Схема запчастей Case IH 1440 - (21-17) - THRESHING ROTOR AND CONCAVES, CAGE (14) - THRESHING
20
12
15
8
19
2
3
29
10
25
16
18
2
11
26
28
5
13
30
9
24
27
2
6
1
21
8
17
2
4
7
22
11
14
23
12

Артикул

Название

Примечание

Количество

1

192297C2

SUPPORT

lower seal

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

2

191267C3

BRACKET

SUPPORT, rotor cage front and rear

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, , w/Scotch Grip Sltd Truss Hd, 3/8"-16 x 3/4"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

193152C1

SUPPORT

front grain tank

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

191246C3

BRACKET

SUPPORT, rotor cage middle

3шт.

Ref. 4, For questions on sub structure of P/N 191246C3 see FEC C5327A .

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 1 slt-truss-hd w/scotch grip

1шт.

5

191847C5

SUPPORT

rotor solid LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

6

SUPPORT, rear lower cage, refer to this group under discharge beater bottom

1шт.

7

191271C5

SUPPORT

rotor RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

8

188333C1

SUPPORT

ASSY, cage LH and RH

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

SCREW, 3/8 x 1 hex-hd flange with scotch grip

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd flange w/scotch grip

1шт.

9

192023C2

SUPPORT ASSY.

SUPPORT ASSY, rotor rear upper

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

10

191191C2

GASKET,6.35mm Thk

drive line dust

1шт.

11

191192C1

BAR

dust seal sheet reinforcement

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

193169C1

SUPPORT

discharge side

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

13

193170C1

COVER

discharge top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

14

193966C1

PLATE

discharge back

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

186607C2

RETAINER

rotor rear seal, Serial Range: -10000

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

182545C1

HOUSING

RETAINER, rotor gear case, Start Serial: 10001

1шт.

16

193862C1

SUPPORT

gear case inner extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

186169C1

SUPPORT

grain tank to cage top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

18

186168C1

SUPPORT

side sheet to cage forward LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

19

191398C2

SHEET

SUPPORT, gear case inner

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

20

191498C1

SEALING STRIP

gear case support, 20.8 in.

1шт.

21

191498C1

SEALING STRIP

front grain tank support, 20.8 in., replaces 1302670C1

1шт.

22

SEAL, front grain tank support, furnish 9.5 in. length from bulk stock marked 73220C1

1шт.

23

352657C1

BOLT,Hex, 1/2" - 13 x 2"

concave stop

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

24

186797C2

SUPPORT

cage filler

2шт.

25

185386C1

SUPPORT

ASSY, cage LH

1шт.

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

SCREW, 3/8 x 1 hex flange w/scotch grip

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

26

183323C1

STRAP

BAR, cage grate

1шт.

27

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

grain tank to cage support

1шт.

27

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

grain tank to cage support

1шт.

27

195803C1

GROMMET

case inner sheet hole

1шт.

28

1308695C1

SUPPORT

rear upper cage, Start Serial: 10488

1шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, , w/Scotch Grip Sltd Truss Hd, 3/8"-16 x 3/4"

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

186785C2

REINFORCEMENT

BAR, cage reinforcement front

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flange w/scotch grip

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

30

182634C2

SUPPORT

STIFFENER, cage grate rear

1шт.

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex flange w/scotch grip

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

Выбрано товаров: 85
