Запчасти Case IH 1440 (21-15) - THRESHING ROTOR AND CONCAVES, CONE, S/N 1500 AND BELOW (14) - THRESHING

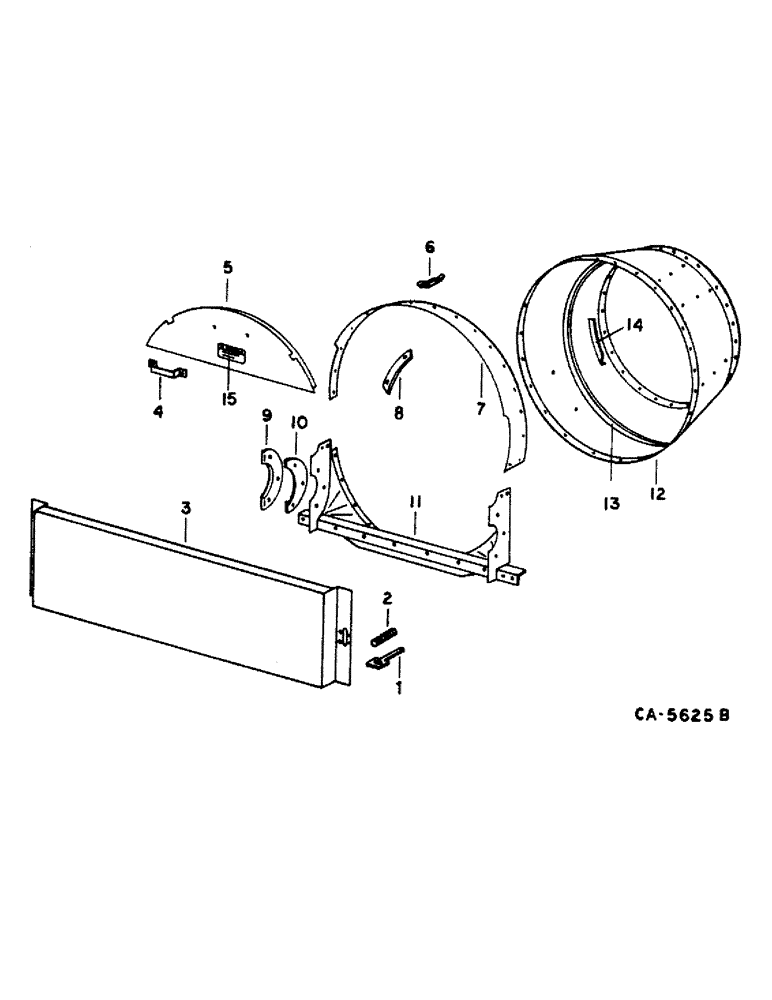

Схема запчастей Case IH 1440 - (21-15) - THRESHING ROTOR AND CONCAVES, CONE, S/N 1500 AND BELOW (14) - THRESHING
11
9
14
3
15
12
7
4
6
1
10
13
5
2
8

Артикул

Название

Примечание

Количество

1319895C91

PACKAGE

adapter conversion, replaces 193354C4, consists of (2) plate (NSS), vane (NSS), instructions (NSS)

1шт.

When ordering package 1319895C91 also order cone 1309419C1

1шт.

1

454502R1

LATCH

separator front door

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

2

M296

SPRING

front door latch

2шт.

3

193436C2

DOOR

separator front

1шт.

4

160638C1

HANDLE

rotor front door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

5

182975C93

DOOR

rotor front, includes ref. no. 15

1шт.

6

168481C1

LATCH ASSY.

LATCH, rotor front door

2шт.

174096C1

BOLT,Hex Serr Flg, #10 - 24 x 3/4"

SCREW, no. 10-24 x 3/4 hex. flange

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

7

SUPPORT, upper transition, order package 1319895C91 and cone 1309419C1

1шт.

8

193180C1

BRACKET

SUPPORT, cone extension

3шт.

9

195202C1

SEAL

feeder

2шт.

10

195409C1

PLATE

seal back-up

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

ADAPTER ASSY, lower transition, order package 1319895C91 and cone 1309419C1

1шт.

12

SUPPORT ASSY, order package 1319895C91 and cone 1309419C1

1шт.

13

195355C3

GUIDE

VANE, cone front

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

193179C2

VANE

VANE, extension transition

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

179749C2

PRODUCT GRAPHIC

danger

1шт.

Выбрано товаров: 28
