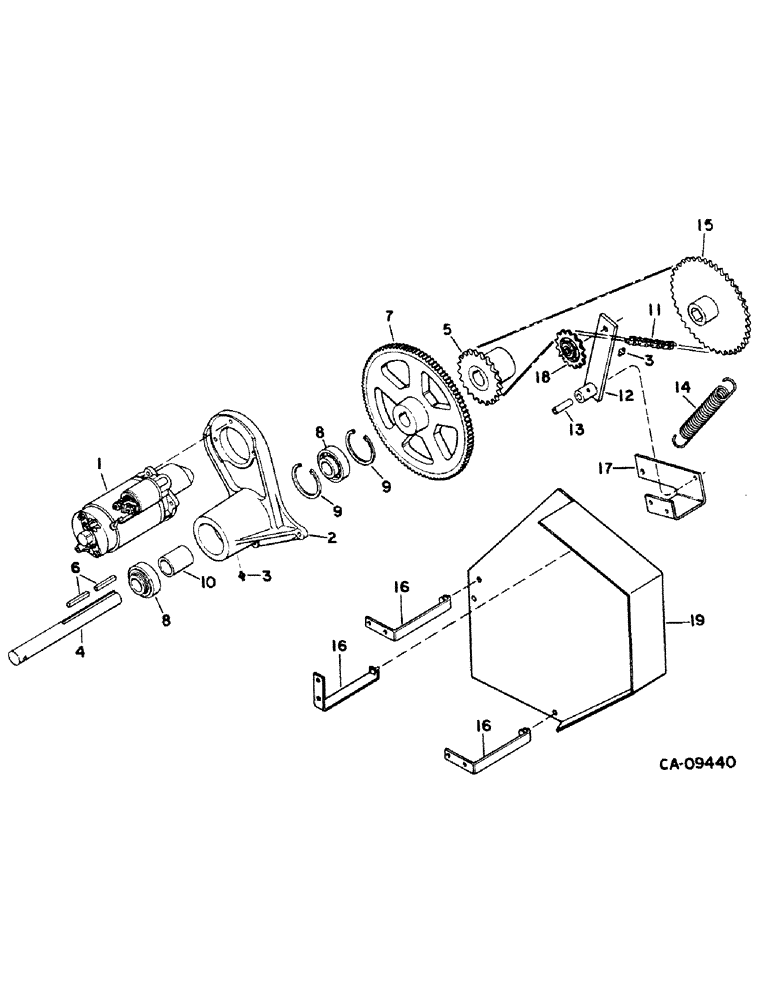

Запчасти Case IH 1440 (33-15) - FEEDER, FEEDER REVERSER, MACHINES W/O ROCK TRAP (13) - FEEDER

1323567C92

FEEDER

PACKAGE, feeder reverser, consists of ref nos 1 thru plus additional parts shown in group 8, group 10 and group 33

1шт.

1

245927C91

STARTING MOTOR

MOTOR, feeder reverser, refer to group 8 for details under feeder reverser motor

1шт.

1

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

1

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, 3/8 x 2-1/4 znd type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

2

1321539C1

HOUSING

HOUSING, feeder reverser

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

2шт.

4

1321534C1

SHAFT

SHAFT, reverser

1шт.

28340R1

PIN,1/2" x 3", Coiled

Pin, 1/2" x 3", Coiled

1шт.

30190R1

WASHER,M39 x 78.5 x 7, HT

WASHER, 38.8 x 78 x 7MM phc

1шт.

22042R1

WASHER

WASHER, .531 x 2.000 x .105

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

5

1329717C1

SPROCKET

SPROCKET ASSY, drive, 20 T

1шт.

6

Q51

KEY,3/8" Sq x 2 1/2", Par

KEY, 3/8" Sq x 2 1/2", Par

2шт.

7

1321537C91

FLYWHEEL

FLYWHEEL W/RING GEAR, reverser

1шт.

8

597537C91

BEARING ASSY, ball

2шт.

9

659676R1

SNAP RING,3.156", Int, #315

RING, 3.23 int ret

2шт.

10

1321523C1

SPACER

SPACER, bearing

1шт.

11

CHAIN, feeder reverser, use 75 links from 10 ft, roll marked 1793D and, 1, connecting link, 1317D

1шт.

12

1321933C3

SUPPORT

SUPPORT ASSY, idler

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, 3/8 x 3 znp type 5

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

WASHER, .406 x 1.125 x .134 phc hdn

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

13

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

SPACER, 5/8 x 2.000 tube

1шт.

14

1330032C1

SPRING

SPRING, idler return

1шт.

15

1329720C2

SPROCKET

SPROCKET ASSY, driver, 40 T

1шт.

16

1321780C1

SUPPORT

SUPPORT ASSY, shield

3шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT, 3/8-16 x 1 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

17

1321929C2

SUPPORT

SUPPORT, spring loaded idler bar

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

NUT, 1/2 flange lock

1шт.

18

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, idler, 15 T

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

BOLT, 5/8 x 3-3/4 znd type 5

1шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

WASHER, .656 x 1.312 x .188 phc hdn

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

9413969

NUT,5/8"-11, GB

NUT, 5/8 cad P/T lock type 5

1шт.

UA17298

SPACER,7/8" Tube x 1 1/16"

SPACER, .875 x 1.062 tube

1шт.

19

1330502C1

SHIELD

SHIELD W/PRODUCT GRAPHIC, feeder reverser

1шт.

179749C2

PRODUCT GRAPHIC

PRODUCT GRAPHIC, danger

1шт.

480523R1

HAIR PIN COTTER

HAIR PIN COTTER, quick attachable

1шт.
