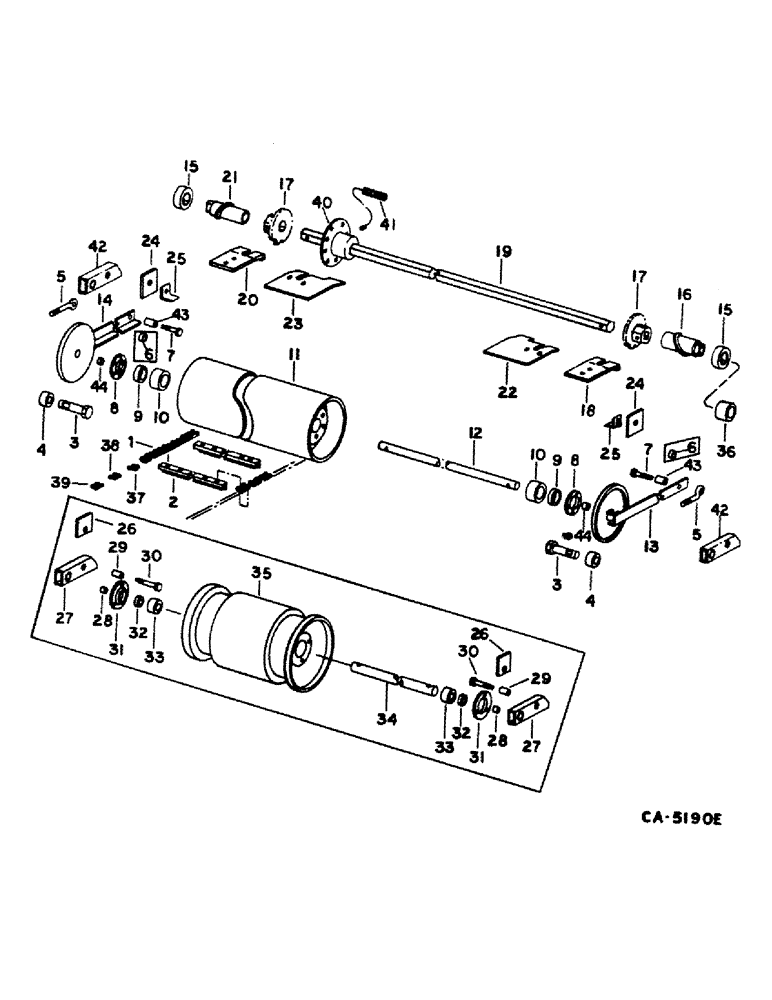

Запчасти Case IH 1440 (33-04) - FEEDER, FEEDER CONVEYOR (13) - FEEDER

1

1319206C91

CHAIN (CE)

CHAIN ASSY, feed conveyor, replaces 1313419C91 and 1308271C91, for grain, includes Ref. no. 2, for 47 in. feeder

1шт.

1

1319208C91

CONVEYOR

CHAIN ASSY, feed conveyor, replaces 1313418C91 and 1308272C91, for grain, includes Ref. no. 2, for 54.5 in. feeder

1шт.

1

1319201C91

CHAIN (CE)

CHAIN ASSY, feed conveyor, replaces 1313187C91 and 182095C91, for corn and rock trap, includes Ref. no. 2, for 47 in. feeder

1шт.

1

1319203C91

CHAIN (AG)

CHAIN ASSY, feed conveyor, replaces 1313188C91 and 182096C91, for corn, includes Ref. no. 2, for 54.5 in. feeder

1шт.

2

1313419C1

SLAT

PACKAGE, feed conveyor, replaces 182100C1, includes rivets, 15 for 47 in. feeder, 17 for 54.5 in. feeder

1шт.

See SB 021-88 Bolt-on Feeder chain slatz 1313419C2

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

chain tightening clamp

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

4

197211C1

SPACER

feeder drum stop

2шт.

5

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

6

558506R1

SPACER

support arm bolt, w/o stone retarder drum, Serial Range: -50406

2шт.

7

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

drum support arm, Serial Range: -50406

2шт.

7

187218C1

BOLT

drum support, w/o stone retarder drum, Start Serial: 50407

1шт.

608701R1

WASHER

.656 x 1.250 x .054, w/o stone reterder drum

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

8

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, drum bearing, w/o stone retarder drum, Serial Range: -50406

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

drum bearing, w/o stone retarder drum, Start Serial: 50407

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

9

455102R21

COLLAR

W/SET SCREW, feed conv. drum brg, w/o stone retarder drum, Serial Range: -50406

1шт.

9

557995R11

COLLAR

W/SET SCREW, feed conv, drum brg, w/o stone retarder drum, Start Serial: 50407

1шт.

10

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum, w/o stone retarder drum, Serial Range: -50406

2шт.

10

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

feeder conveyor drum, w/o stone retarder drum, Start Serial: 50407

1шт.

11

175975C1

DRUM HUB

DRUM ASSY, feed conveyor, w/o stone retarder drum, Serial Range: -50406

1шт.

11

1319861C2

DRUM BRAKE ASSY

DRUM ASSY, feed conveyor, w/o stone retarder, Start Serial: 50407

1шт.

12

175982C2

SHAFT

feed conveyor drum, w/o stone retarder drum, Serial Range: -50406

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

12

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT, feed conveyor drum, without stone retarder drum, Start Serial: 50407

1шт.

13

1305156C1

ARM ASSY.

ARM ASSY, drum support LH w/o stone retarder drum, Serial Range: -50406

1шт.

See 1460 parts book, figure 33-04 for the above S/N

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

14

1305157C1

ARM

ASSY, drum support RH w/o stone retarder drum, Serial Range: -50406

1шт.

See 1460 parts book, figure 33-04 for the above S/N

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

15

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, feed conveyor shaft

2шт.

16

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

17

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor chain, 9T

2шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex-soc-cup point

1шт.

18

185708C1

STRIPPER ASSY.

STRIPPER ASSY, LH, S/N 10000 and below

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1-4 type 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 cad P/T lock type 8

1шт.

390307C1

WASHER

.531 x 1.062 x .095 hdn

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

WASHER, shim .015

1шт.

19

197277C2

SHAFT

feed conveyor, used w/o rock trap

1шт.

19

1320160C3

SHAFT

feed conveyor, used w/rock trap

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

1шт.

19

1327791C1

SHAFT

feed conveyor, used w/feeder reverser with or without rock trap

1шт.

1305393C1

SPACER

2-35/64

1шт.

20

185709C1

STRIPPER ASSY.

STRIPPER ASSY, RH, S/N 10000 and below

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1-4 type 8

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 cad P/T lock type 8

1шт.

390307C1

WASHER

.531 x 1.062 x .095 hdn

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

WASHER, shim .015

1шт.

21

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

22

185818C1

STRIPPER ASSY.

STRIPPER, LH, S/N 10000 and above

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23

185819C1

STRIPPER ASSY.

STRIPPER, RH, S/N 10000 and above

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

24

187347C1

PLATE

BAR, upper stop, w/o stone retarder drum

1шт.

25

187364C2

ANGLE

ASSY, drum arm upper stop, w/o stone retarder drum

2шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8 x 2-1/4 crg type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

.656 x 1.250 x .054 sq/h

1шт.

26

187225C1

BAR

upper stop adjusting, w/stone retarder drum

2шт.

27

1305103C1

ARM ASSY.

ARM ASSY, drum stop, replaces 187367C1, w/stone retarder drum

1шт.

28

11449P

SPACER,1 1/4" Pipe x 1/2"

conveyor drum bearing, w/stone retarder drum

2шт.

29

187217C1

SPACER,7/8" Tube x 1 13/16"

drum arm pivot, w/stone retarder drum

2шт.

30

187218C1

BOLT

drum support arm, w/stone retarder drum

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

31

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

drum bearing, w/stone retarder drum

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

32

557995R11

COLLAR

W/SET SCREW, feed conveyor drum bearing, w/stone retarder drum

2шт.

33

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

feed conveyor drum, w/stone retarder drum

2шт.

34

187207C2

SHAFT,31.75mm OD x 909.3mm L

feed drum, w/stone retarder drum

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

35

187195C2

DRUM

ASSY, feed conveyor

1шт.

36

162172C1

SPACER

feeder pivot shaft LH

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

37

182090C1

LINK,Chain, 41.4mm Pitch

LINK, conveyor attaching

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

38

182094C1

LINK,Chain, Link, 41.4mm

conveyor connecting

1шт.

39

182127C1

LINK,41.4mm Pitch

conveyor offset

1шт.

40

1305665C1

DISC

DISC ASSY, transducer pickup

1шт.

197643C1

SET SCREW

set

1шт.

41

1301241C1

SENSOR

CONVERTOR, reluctance pickup

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 C-Z stamped

1шт.

42

1305103C1

ARM ASSY.

ARM ASSY, drum support, w/o stone retarder drum, Start Serial: 50407

2шт.

43

187217C1

SPACER,7/8" Tube x 1 13/16"

drum arm pivot, w/o stone retarder, Start Serial: 50407

2шт.

44

11449P

SPACER,1 1/4" Pipe x 1/2"

conveyor drum bearing, w/o stone retarder drum, Start Serial: 50407

2шт.
