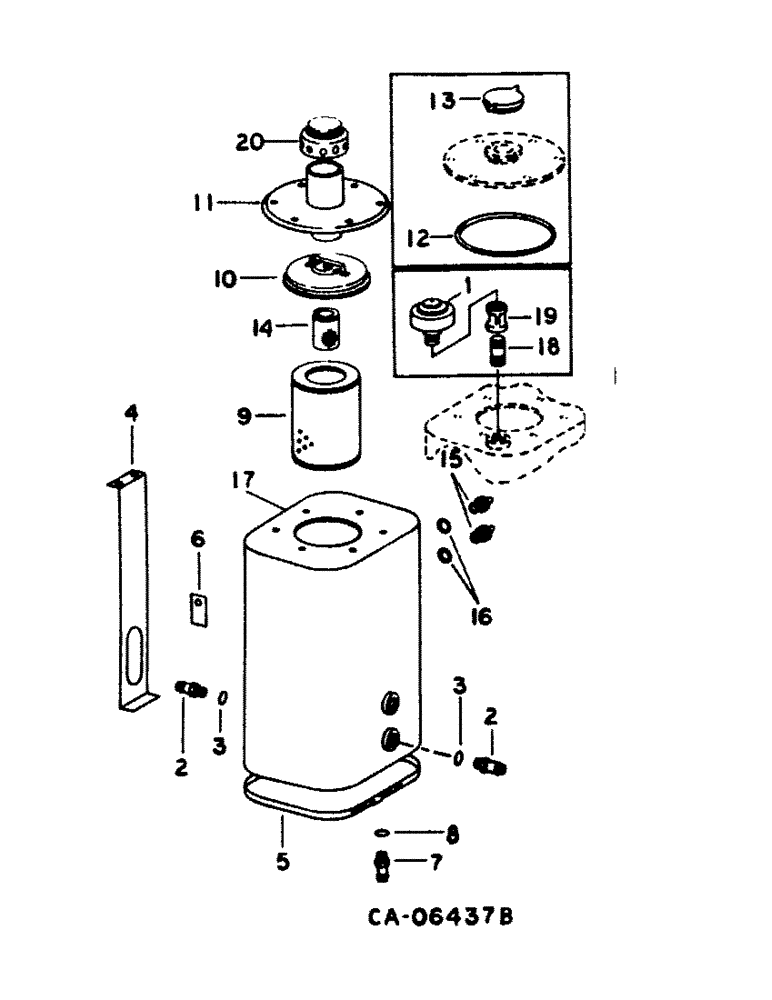

Запчасти Case IH 1440 (10-75) - HYDRAULICS, HYDRAULIC RESERVOIR, S/N 20001 AND ABOVE (07) - HYDRAULICS

1301237C92

RESERVOIR

TANK ASSY, hydraulic oil, replaces 1301237C91 and 1301281C91, includes ref nos. 9, 10, 11, 12, 14, 15, 16 and 20

1шт.

1

923745C91

BREATHER ASSY.

BREATHER, filter assy, used with 1301237C91 and 1301281C91 only

1шт.

2

470420R11

FITTING

basic system return & cooler

2шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

3шт.

4

193291C1

SUPPORT

hydraulic reservoir

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

27804R1

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

CLAMP, hydraulic reservoir

2шт.

6

159752C1

SUPPORT

hydraulic reservoir clamp

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

196816C1

FITTING

1/2 port, 5/8 bead tube, reservoir drain

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 in. tube

1шт.

9

528493R3

HYDRAULIC OIL FILTER

ELEMENT ASSY, tank

1шт.

10

173131C1

COVER ASSY

filter

1шт.

11

1285715C91

COVER

ASSY, tank, for 1301237C92, includes ref. no. 20

1шт.

The supplier of the P/N 1285715c91 cover verified the o-ring groove dims. to be 6.225 id x .275.

1шт.

11

1301115C1

COVER ASSY

tank, for 1301237C91

1шт.

11

179491C1

COVER

ASSY, tank, for 1301281C91

1шт.

21784R1

WASHER

.266 x .500 x .054

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

1шт.

12

238-5438

O-RING,0.275" Thk x 6.225" ID, -438, Cl 5, 75 Duro

RING, tank cover, 6.50 x 6.75 in., for 1301237C91 and 1301237C92(Replaces 3042933R1)is a 6-1/4" id x1/4" cross section o-ring.

1шт.

12

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

RING, tank cover, 5.75 x 6.25 in., for 1301281C91

1шт.

13

361705R91

COVER

CAP ASSY, tank cover, used with 1301237C91 and 1301281C91 only

1шт.

14

179489C1

FILTER, ENGINE OIL

FILTER, cap tank

1шт.

15

244600R92

SIGHTGLASS

GLASS ASSY, oil lever sight

2шт.

Ref. 15, SB 3752 Tube has fine thread-glass P/N 427708C1.

1шт.

16

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, sight glass

2шт.

17

TANK ASSY, hydraulic oil, not serviced separately, order tank assy, 1301237C92

1шт.

18

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pln long pipe, breather extension, used with 1301237C91 and 1301281C91 only

1шт.

19

111661

COUPLING,3/4" NPT

3/4 pln pipe, breather extension, used with 1301237C91 and 1301281C91 only

1шт.

20

1272941C1

CAP

filter breather, used with 1285715C91 only

1шт.
